$38.49
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease

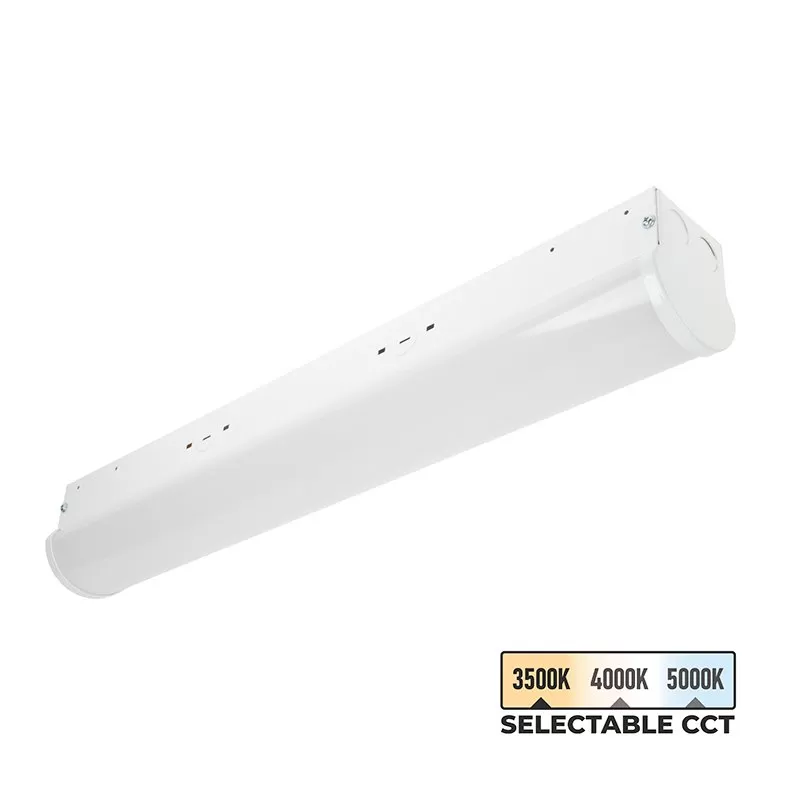

TCP’s 20W LED General Purpose Strip Light Fixture is designed to easily replace a fixture with two 17W T8 fluorescent lamps and ballast in an existing fluorescent strip fixture. These LED strip lights significantly reduce energy consumption compared to the existing fluorescent systems and the long 50,000-hour rated life significantly decreases maintenance labor, and material costs over time. The selectable CCT design allows you to customize the fixture per application. TCPGPS2UZDA8CCT incorporates a ribbed, frosted white diffuser lens to minimize glare while delivering uniform light.
Product Details:
- White aluminum housing with a frosted polycarbonate lens
- IP44 damp-location rated
- 0-10V smooth dimming
- Surface mounts to existing strip fixture housing
- 120-277 VAC
- Certified by UL
- DLC 5.1 Standard
- 5-year warranty
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| LED Color | Cool White, Natural White, Warm White, Selectable CCT |
| UL File Number | E328542 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 2lb 14oz (1.3kg) |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 20 Watts |
| Operating Voltage | 120-277 VAC |
| Microwave Motion Sensor | None |
| Intensity | 2600 Lumens |
| Linkable | No |
| Lens Type | Polycarbonate |
| Lens | Frosted |

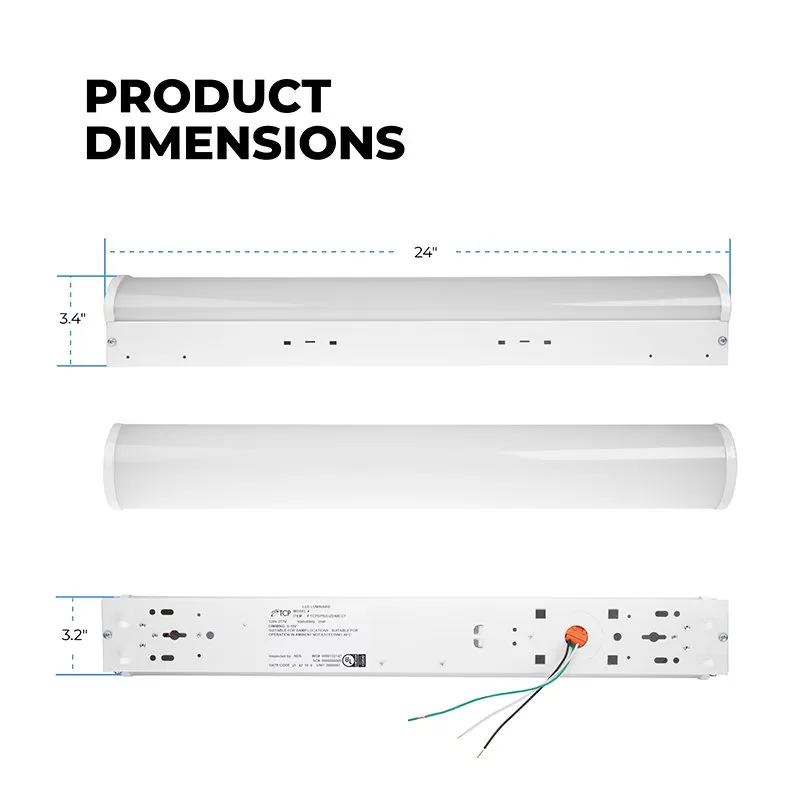

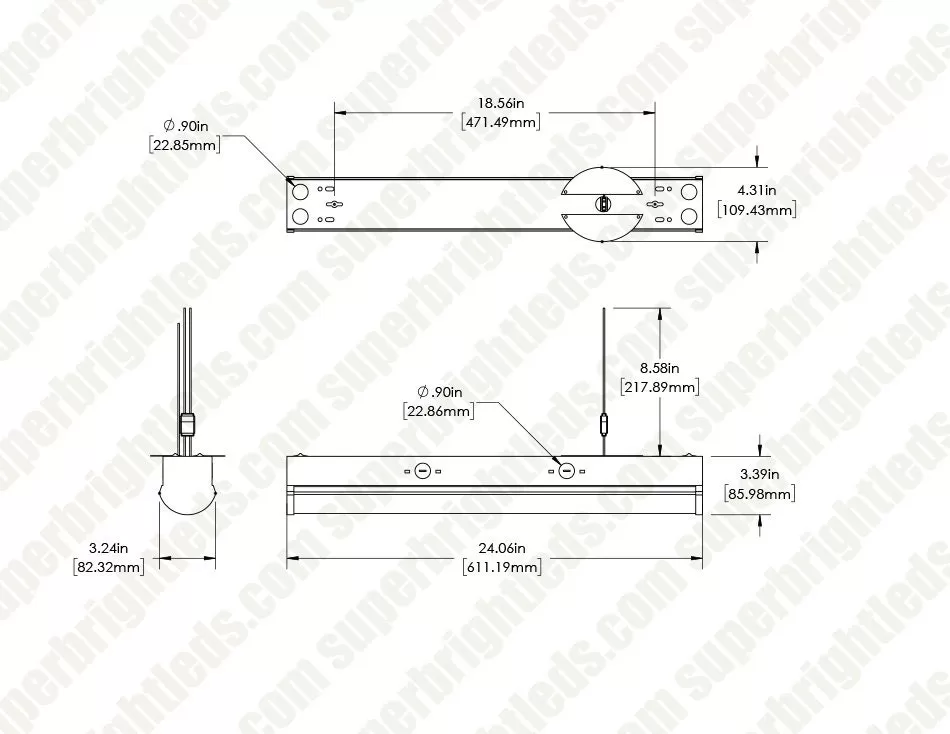

| Length | 2ft (24in) |
| IP Rating | IP44 |
| Beam Angle | 120° |
| Input Connection Type | Pigtail |
| Finish | White |
| Equivalency | 2-lamp 17W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 130 lm/W |
| DLC Product ID | PTTOSX4L |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 170 mA @ 120 VAC, 72 mA @ 277 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC |
| CCT Value | 3500K, 4000K, 5000K |
| Brand | TCP |
| Warranty | 5 Year |
