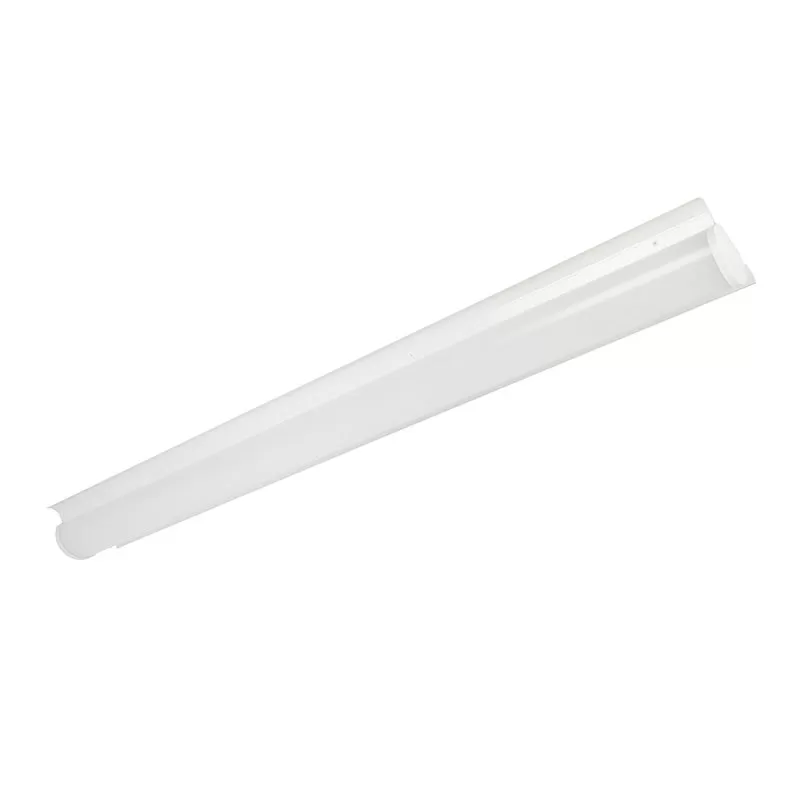

TCP’s 18W LED General Purpose Strip Retrofit Kit is designed to easily mount into an existing strip fixture housing with two 32W T8 fluorescent lamps and ballast. The universal design fits most 4.25″ and 5.25″ wide T8/T12 fluorescent strips. These LED retrofit kits significantly reduce energy consumption compared to the existing fluorescent systems and the long 50,000-hour rated life significantly decreases maintenance labor, and material costs over time. TCPGPR4UZDB850K incorporates a ribbed, frosted white diffuser lens to minimize glare while delivering uniform light.
Product Details:
- White aluminum housing with a frosted polycarbonate lens
- IP44 damp-location rated
- 0-10V smooth dimming
- Mounts to existing strip fixture housing
- 120-277 VAC
- UL Classified
- DLC 5.1 Standard
- 5-year warranty
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|

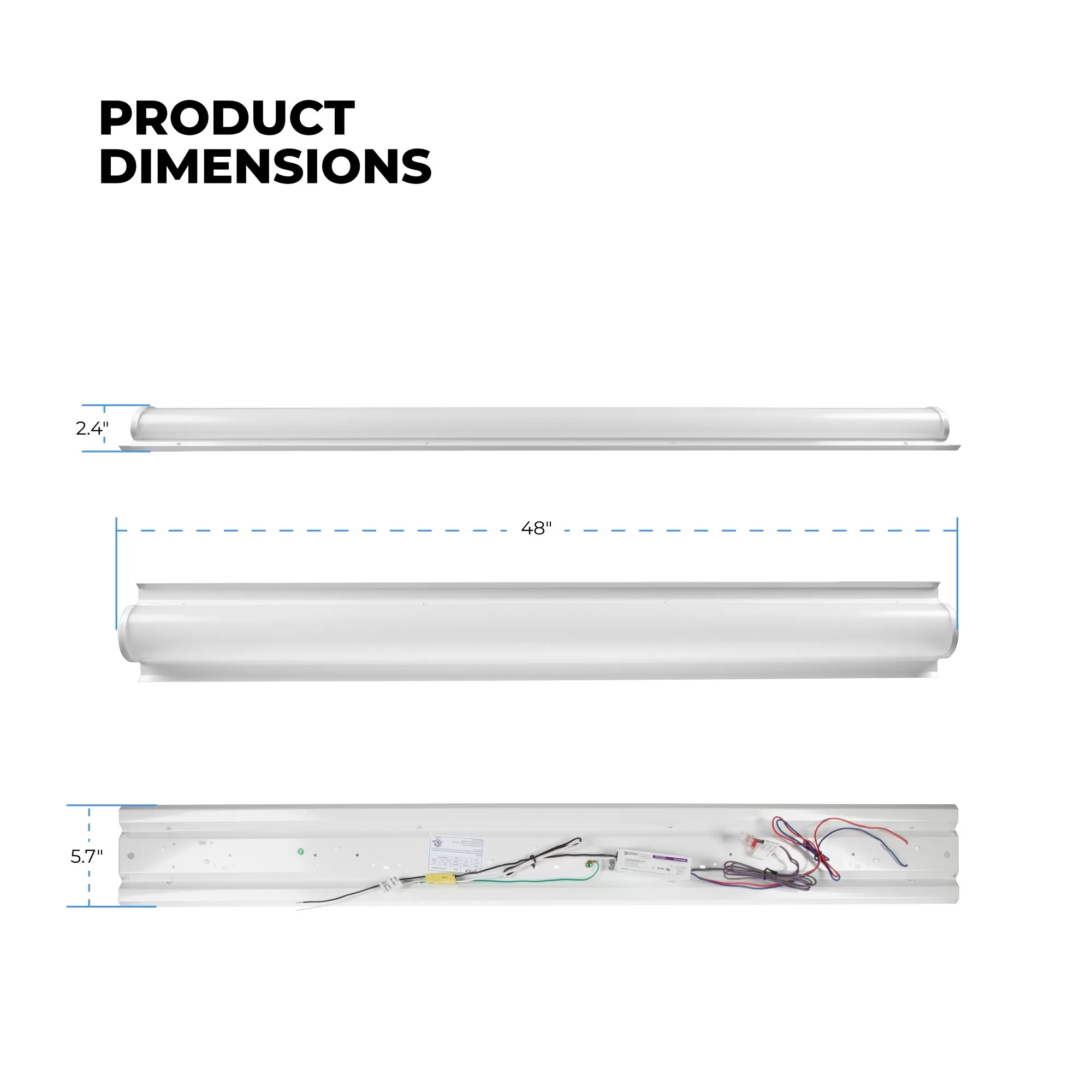

| Length | 4ft (48in) |
| UL File Number | E353692 |
| Shipping Exclusions and Details | Excluded From Free Shipping |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 4lb 14oz (2.21kg) |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Power Factor | ≥0.9 |
| Power Consumption | 18 Watts |
| Operating Voltage | 120-277 VAC |
| Microwave Motion Sensor | None |
| Intensity | 2340 Lumens |
| Linkable | No |
| Lens Type | Polycarbonate |
| Lens | Frosted |
| LED Color | Cool White |
| Beam Angle | 120° |
| IP Rating | IP44 |
| Input Connection Type | Pigtail |
| Finish | White |
| Equivalency | 2-lamp 32W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 130 lm/W |
| DLC Product ID | PLLJFGCNBTOO |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 150 mA @ 120 VAC, 65 mA @ 277 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC |
| CCT Value | 5000K |
| Brand | TCP |
| Warranty | 5 Year |
