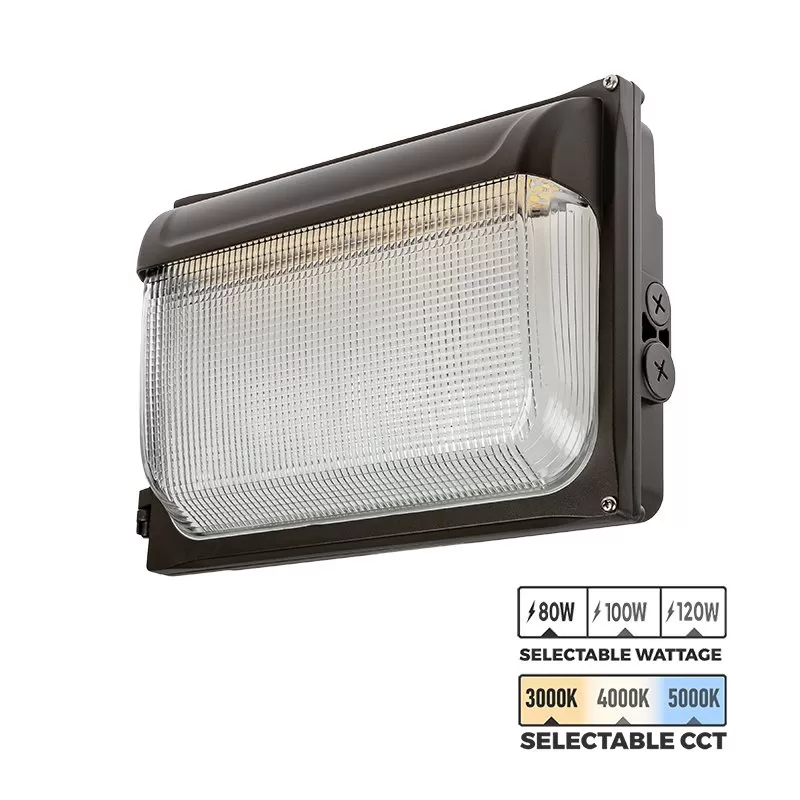

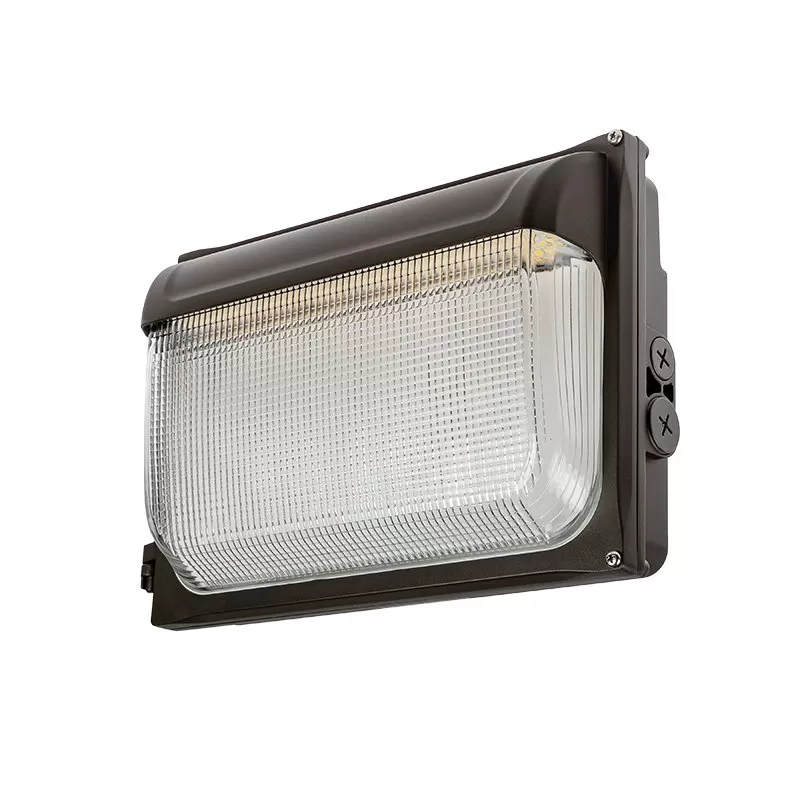

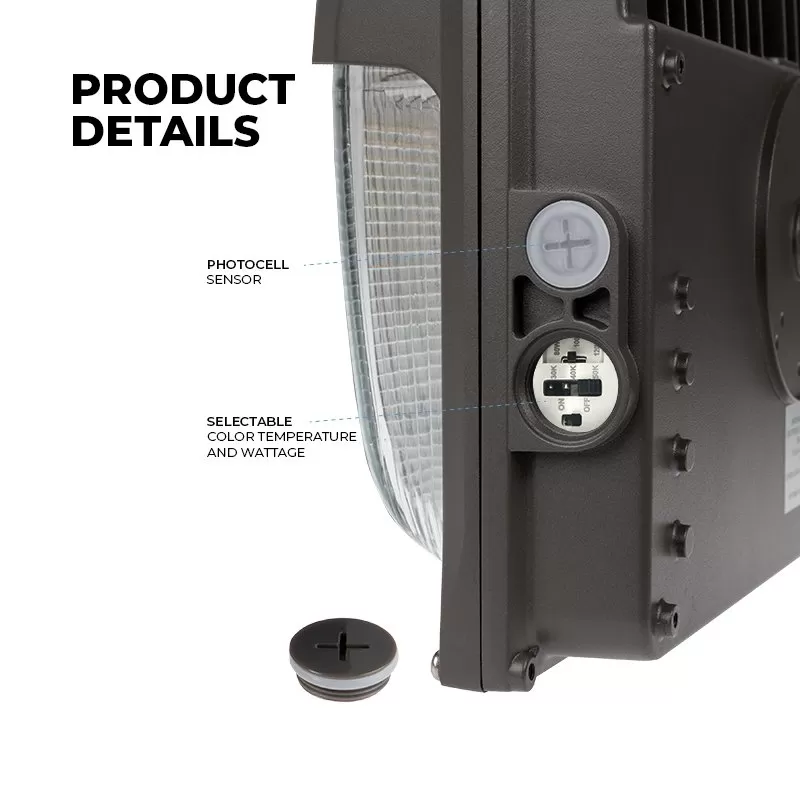

This LED wall pack features slim, low-profile durable construction with the design of a traditional standard wall pack. The fixture is constructed of a bronze powder-coated aluminum housing, a non-yellowing prismatic glass lens, and an IP65 waterproof rating. Customize the fixture to the application area with the selectable CCT and wattage. Remove the plug on the side of the fixture for easy access to the CCT and wattage selection switches and the photocell bypass switch. Wide NEMA 4 x 6 light distribution is ideal for building exteriors, warehouses, and commercial complexes.
- Bronze powder-coated aluminum body
- Prismatic borosilicate glass lens
- NEMA 4 x 6 light distribution
- 0-10V dimmable
- 1/2“ trade size removable plug on the sides and back
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
| Ambient Operating Temperature | -40~+45 °C (-40~+113 °F) |
|---|---|
| IP Rating | IP65 |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 8lb 6oz (3.8kg) |
| Product Materials | Aluminum Housing, Glass Lens |
| Power Factor | ≥0.95 |

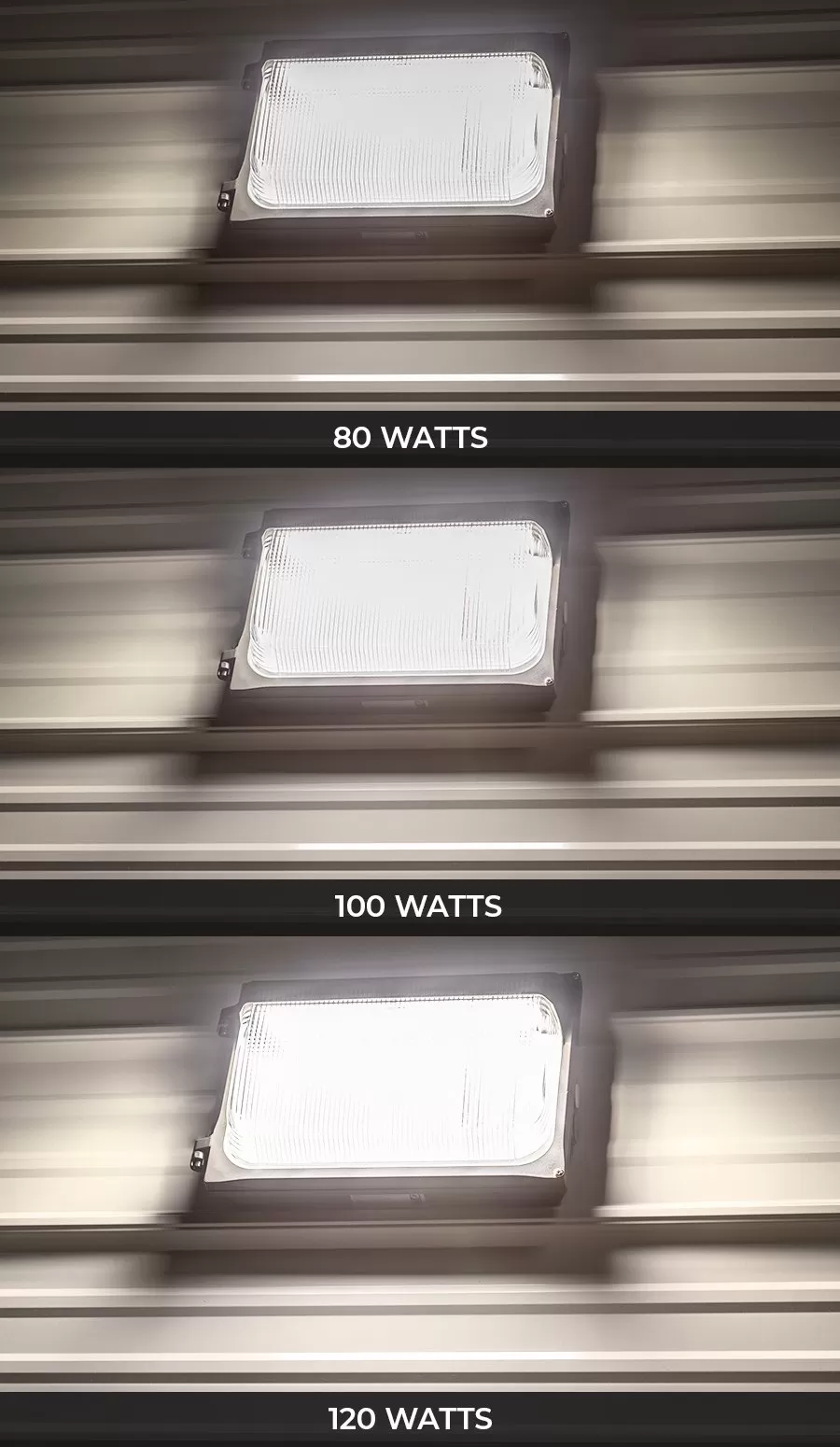

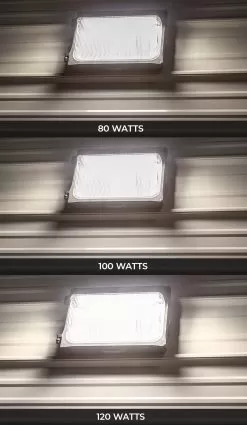

| Power Consumption | Field Selectable 80W/100W/120W |
| Photocell | Integrated Photocell (bypassable internally) |
| Operating Voltage | 120-277 VAC |
| Intensity | 16200 Lumens |
| Lens Type | Prismatic Borosilicate |

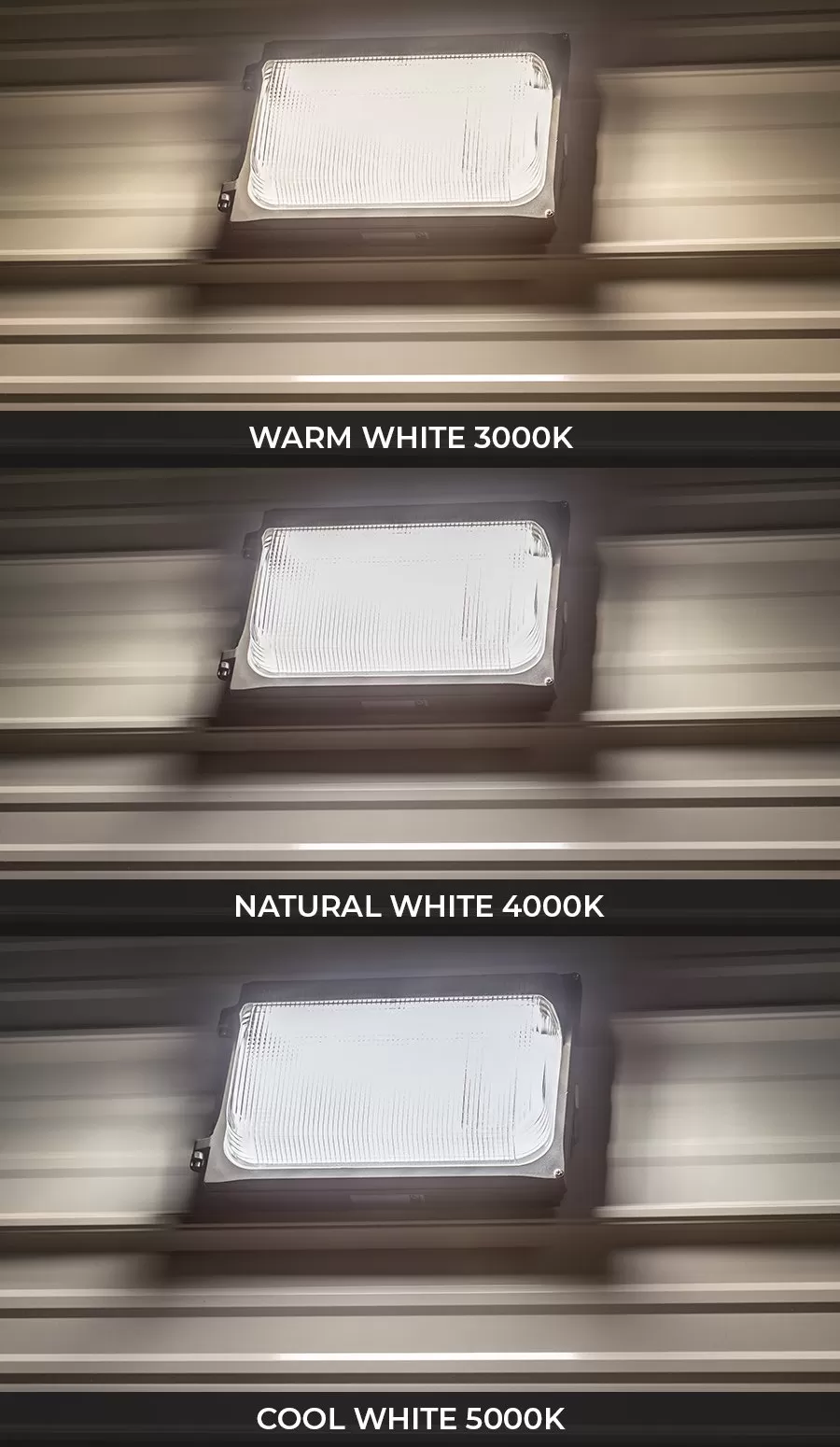

| LED Color | Selectable CCT |
| Integrated Surge Protection | 4 kV (L-N), 4 kV (L/N-G) |
| Beam Angle | 60° x 120° |
| Input Connection Type | Pigtail |
| Finish | Bronze |
| Equivalency | 400 Watt Metal-Halide |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 135 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 289/361/433 mA @ 277 VAC, 667/833/1000 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC Premium |
| BUG Rating | B1-U5-G5 |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
