MaxLite Round ECO Pendant High Bay GEN2 Controls Ready – 180W / 200W / 240W – 3500K / 4000K / 5000K

Home / LED Warehouse Lighting / LED High Bay Lights

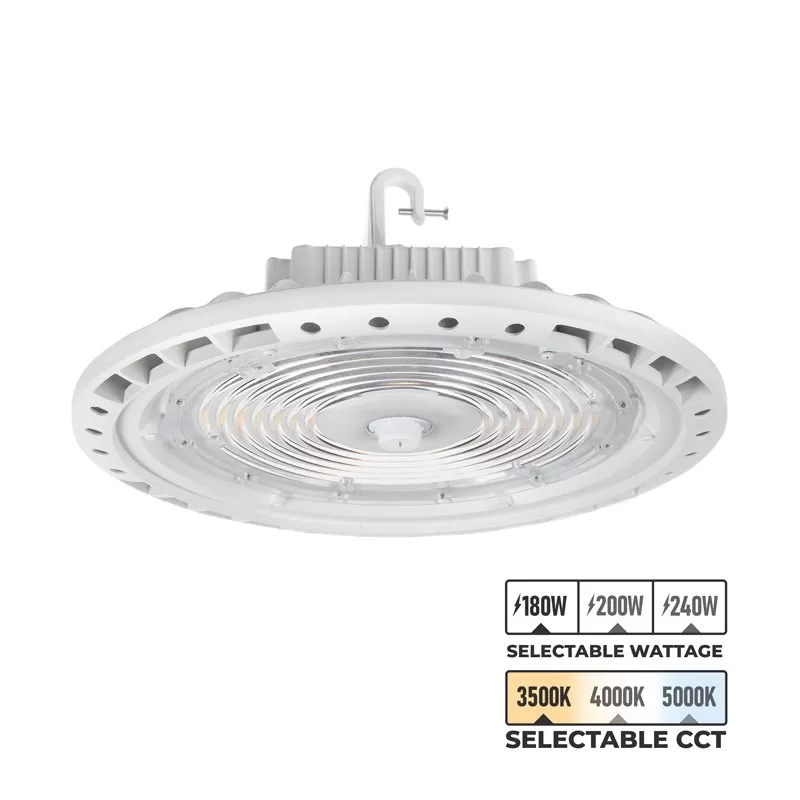

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 2
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 3
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 4
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 5
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 6
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 7
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K - Image 8

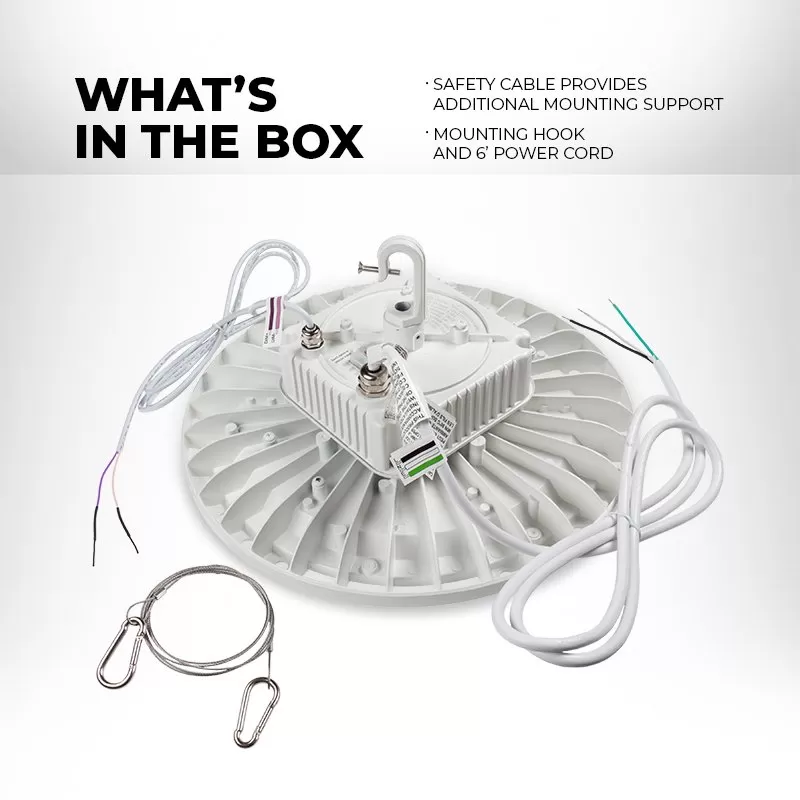

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs whats in box

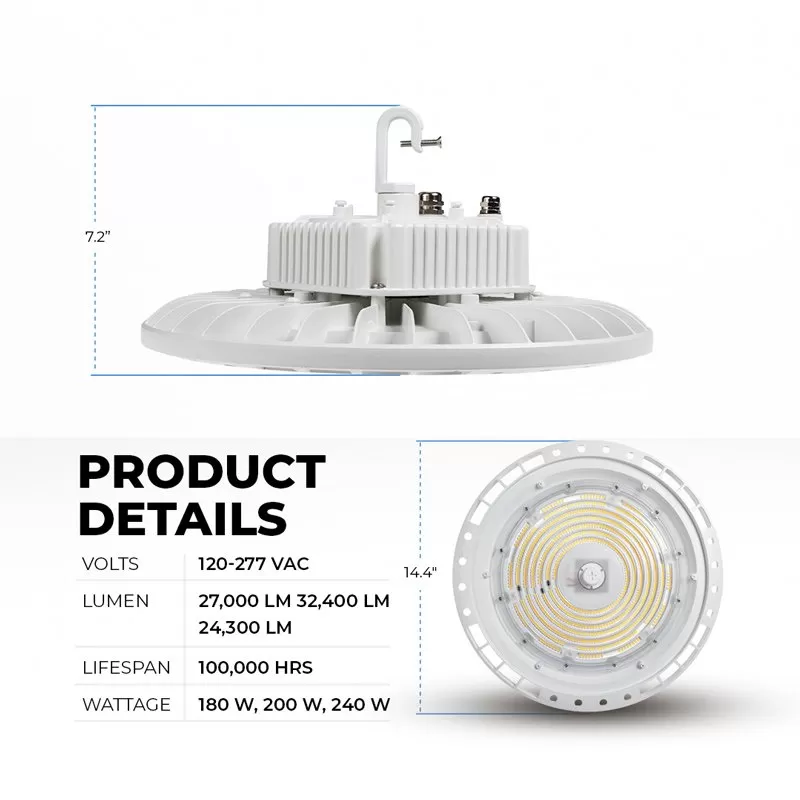

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs product details

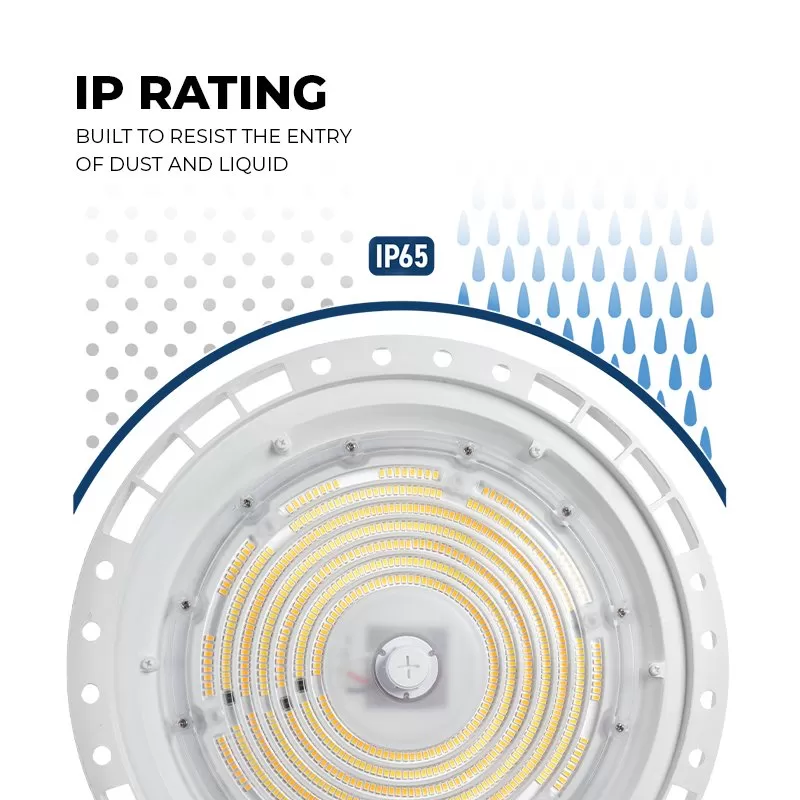

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs ip rating

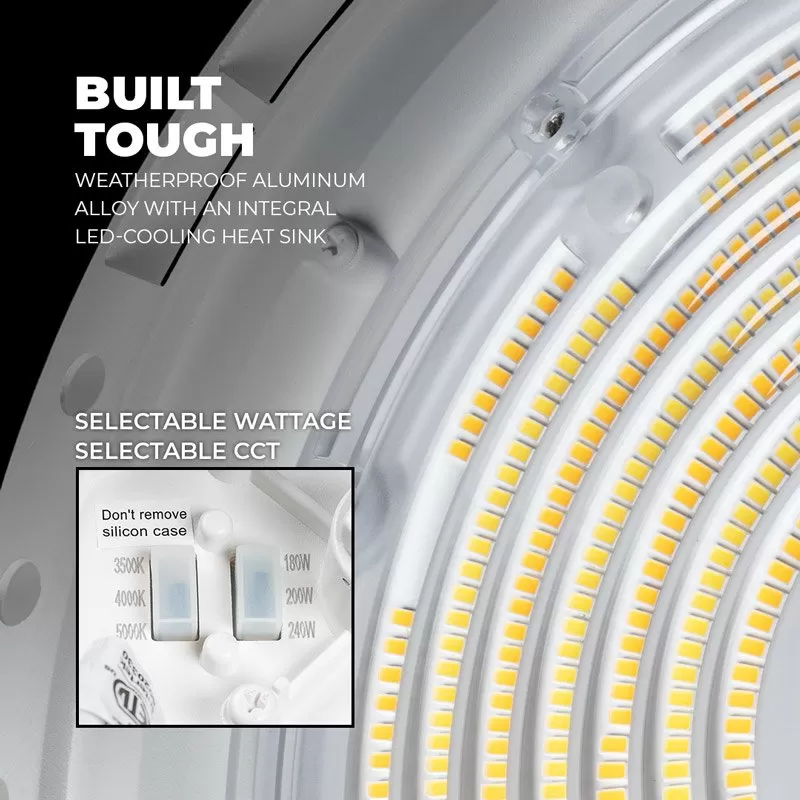

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs built tough

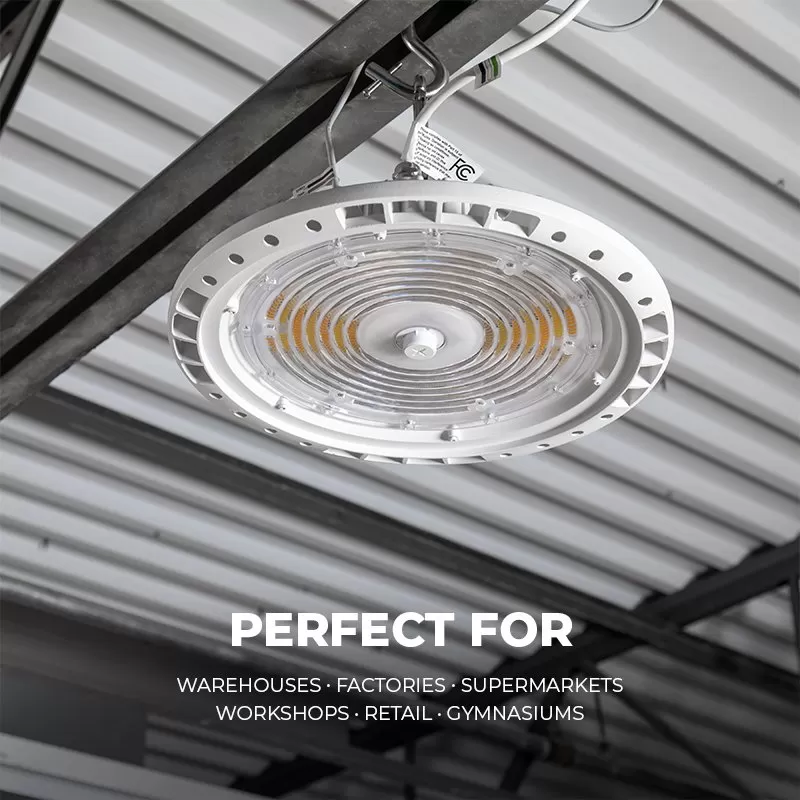

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs perfect for

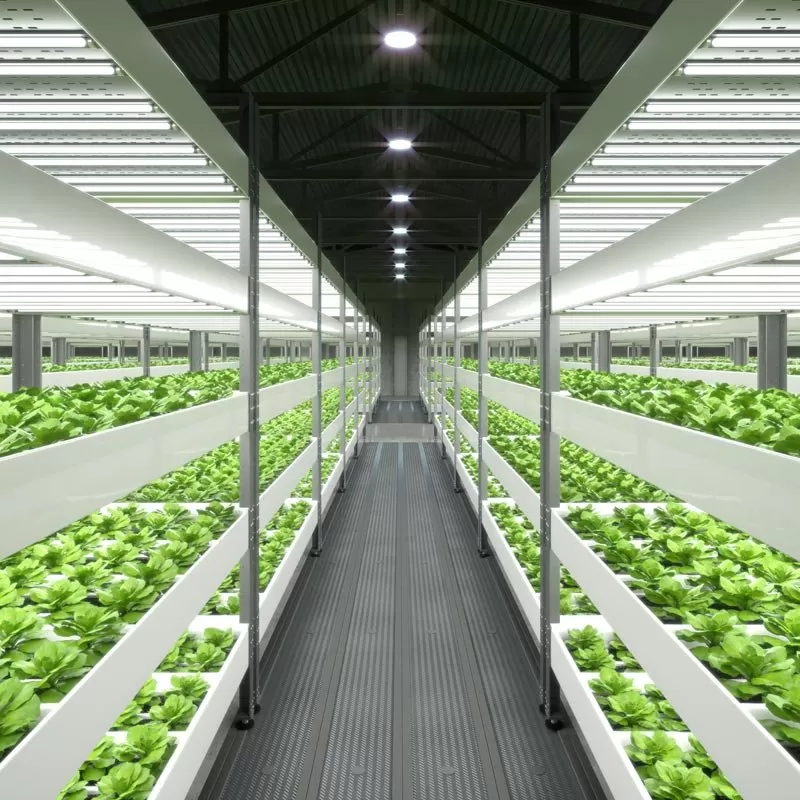

MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bphe2 u180wcs app
MaxLite Round ECO Pendant High Bay GEN2 Controls Ready - 180W / 200W / 240W - 3500K / 4000K / 5000K -Lighting Decoration Store bpeh2 u180wcs dim drawing

$97.99

Buy Now
SKU: BPHE2-U180WCS Categories: LED High Bay Lights, LED Warehouse Lighting Tag: Super Bright LEDs
  • Online customer care, always here for you.
  • Shop with confidence, enjoy free returns.
  • Have the best deals
  • Shop with Ease
Browse
  • Commercial Exteriors
    • Bollard Lights
    • Dusk To Dawn Area Lights
    • Gooseneck Barn Lights
    • LED Canopy Lights
    • LED Flood Lights
    • LED Parking Lot Lights
    • LED Wall Packs
    • Street Lights
  • Hanging Lighting
    • Ceiling Lights
    • Chandeliers
    • Kitchen Island Pendants
    • Mini Pendants
    • Pendant Lights
  • Interior Lighting
    • LED Panel Lights & Troffer Lights
    • LED Track Lighting
    • Recessed Downlighting
    • Strip Light Fixtures
  • LED Warehouse Lighting
    • LED Exit Signs and Emergency Lights
    • LED Forklift Safety Lights
    • LED High Bay Lights
  • Residential Lighting
    • Flush Mount Ceiling Lights
    • Outdoor Wall Lights
    • Portable LED Work Lights
    • Smart Lighting
    • Under Cabinet Lighting
    • Wall Switches and Dimmers
  • Uncategorized
  • Wall Lighting
    • Vanity Lights
    • Wall Sconces
  • Description
  • Additional information
  • Reviews (0)

The Round Eco Pendant High Bay Gen 2 is a Color and Wattage Selectable, sleek, price-effective lighting solution for warehouses, retail and big box stores, gymnasiums, and other industrial and commercial locations with open ceilings. Compact in design yet mighty in output and durability, the pendant produces uniform illumination with DLC Premium listed performance that exceeds 135 lm/W. The product has an integrated sensor port for easy in-field plug-and-play sensor installation. It is compatible with the Maxlite c-Max system (DLC NLC qualified), making it attractive for significant utility rebates.

Product Details:

  • White aluminum housing and a polycarbonate lens
  • IP65 waterproof rating
  • 0-10V dimming
  • 120-277 VAC
  • ETL Listed
  • NSF Standard 2
  • DLC 5.1 Premium
  • 10-year standard warranty with labor allowance

Warranty Limitations: Product must be rated for application per the Product Data Sheet (PDS); operated ≤16 hrs; in ambient temperatures -4°F to 77°F. If ambient temperatures fall outside the -4°F to 77°F range, the product is has a warranty of 5 years according to the operating temperature range specified on the PDS. Up to $25/unit; registration is required. Additional coverage may be available for purchase; contact MaxLite. Excludes EM/MS versions; component warranty applies.

Ambient Operating Temperature

-20~+50 °C (-4~+122 °F)

Integrated Surge Protection

4 kV

Rated Life (L70)

100000 Hours

Product Weight

8lb 4oz (3.74kg)

Product Materials

Aluminum Housing, Polycarbonate Lens

Power Factor

≥0.9

Power Consumption

180 Watts, 200 Watts, 240 Watts

Operating Voltage

120-277 VAC

Microwave Motion Sensor

Optional

Intensity

24300 Lumens, 27000 Lumens, 32400 Lumens

Lens Type

Polycarbonate

Lens

Clear

LED Color

Cool White, Natural White, Warm White, Selectable CCT

IP Rating

IP65

Input Connection Type

Pigtail

Beam Angle

90°

Finish

White

Equivalency

1000 Watt Metal-Halide

Environmental Rating

Suitable for Wet Locations, Waterproof

Efficacy

135 lm/W

DLC Product ID

S-4GHZ6F

Dimming Type

0-10V

Dimmable

Yes

Current Draw

650/722/866 mA @ 277 VAC, 1.5/1.67/2 A @ 120 VAC

CRI

80+

Certifications/Compliance

DLC Premium, ETL Listed, NSF

CCT Value

3500K, 4000K, 5000K

Brand

MaxLite

Warranty

10 Year
