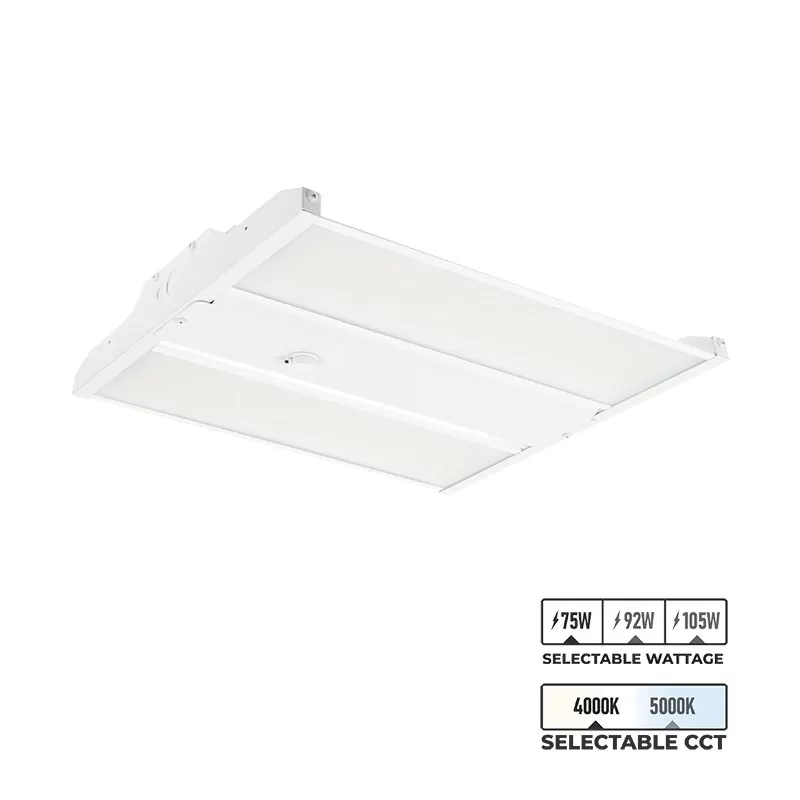

MaxLite LED GEN 3 Linear High Bay – Control Ready – Selectable Wattage – Selectable CCT – Up To 15,750 Lumens – 78W / 92W / 105W – 4000K / 5000K

The HL3 LED Highbay Linear Series Gen 3 offers industry-leading efficacy (150lm/W), customizability with CCT select switch (4000K & 5000K), and scalability with a Wattage select model, for high ceiling applications such as warehouses, distribution centers, manufacturing facilities, and big box retailers. This premium compact highbay covers a wide range of applications with 11,000 lumens at just 1.5 ft length up to 40,000 lumens at 4 ft length. The product has an integrated sensor port for easy in-field plug-and-play sensor installation. It is compatible with the Maxlite c-Max system (DLC NLC qualified), making it attractive for significant utility rebates. MaxLite’s new Controls Ready (CR) fixtures allow for quick and easy in-field installation (plug-and-play) of controls. Purchase any CR fixture and the required Controls Node, and you’re all set! See the accessory table for all control options available for this fixture.

Product Details:

• White steel housing and polycarbonate lens
• 0-10V dimming
• 120-277 VAC
• Certified by UL
• DLC 5.1 Premium
• 10-year standard warranty with labor allowance

Warranty Limitations: Product must be rated for application per the Product Data Sheet (PDS); operated ≤16 hrs; in ambient temperatures -4°F to 77°F. The product has a warranty of five years if ambient operating temperatures fall outside the -4°F to 77°F range. Up to $25/unit; registration is required. Additional coverage may be available for purchase; contact MaxLite. Excludes EM/MS versions; component warranty applies.
