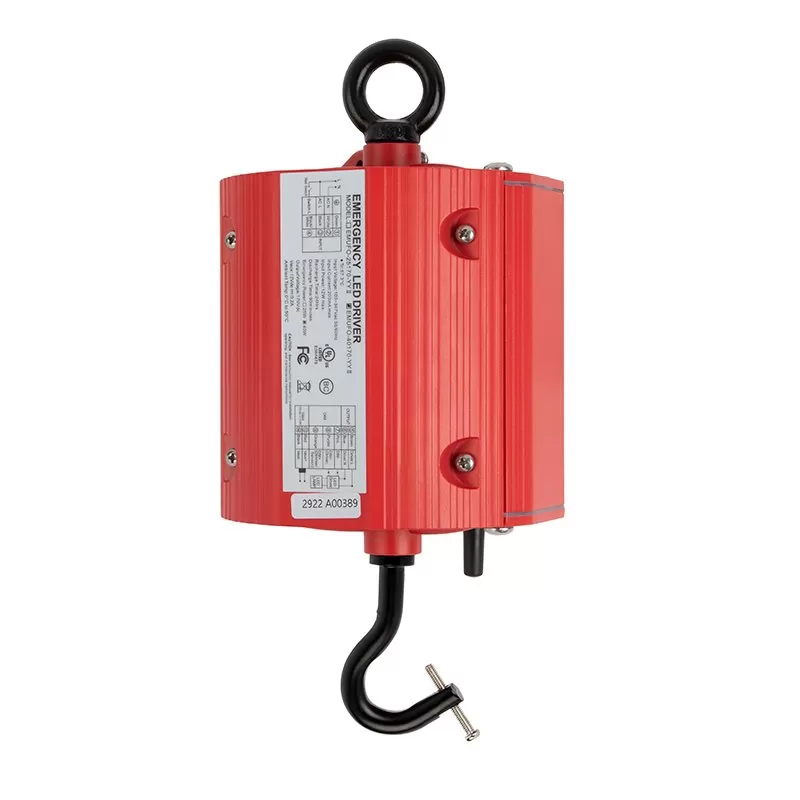

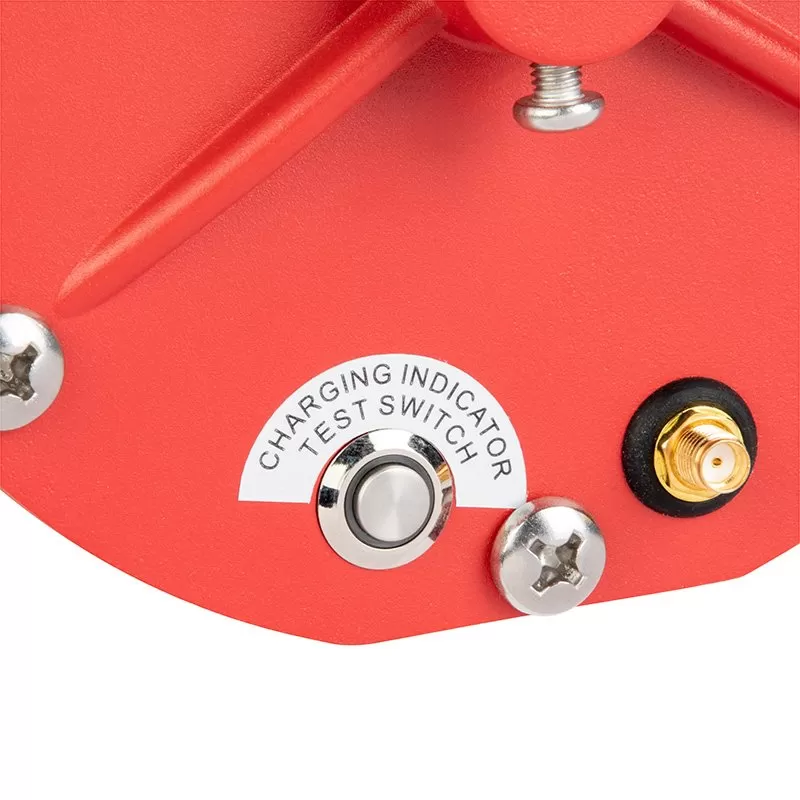

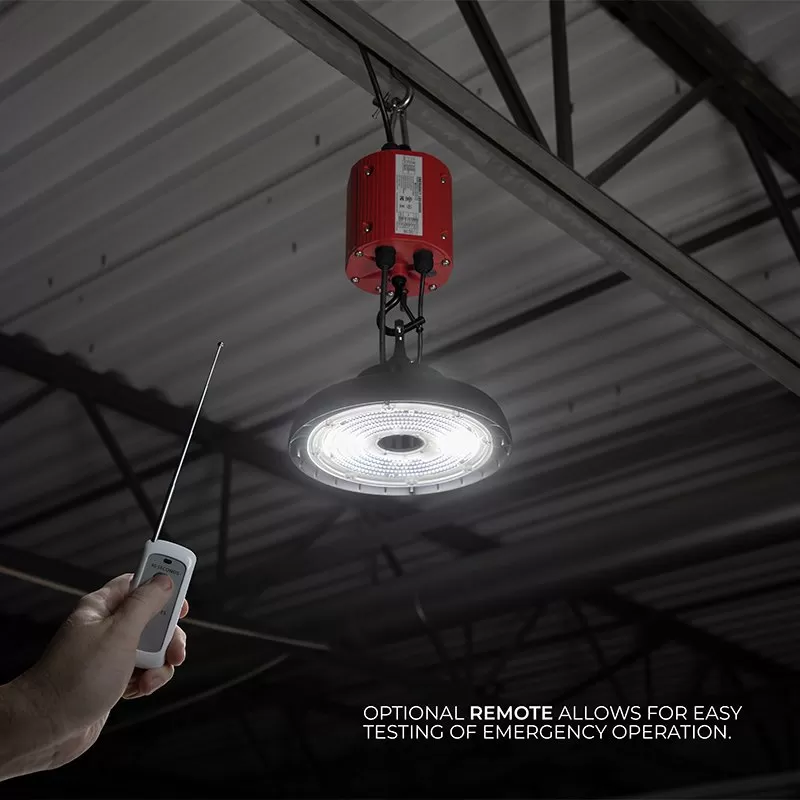

The emergency driver automatically provides backup battery power to LED UFO high bay drivers at a rated output voltage of 170 VDC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24 hours recharge time. The driver has a wide input voltage of 100-347 VAC. The constant wattage design maintains the output wattage even as the system voltage diminishes. The UL 924 Listed certification meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States. Self-test using the switch on the driver or with an optional RF test remote.
- Powers up to 300W UFO high bays
- Compatible with lights equipped with 0-10V Dimming
- Operating temperature: 32°–122° F (0°–50° C)
- IP65 waterproof rating
- Surge Protection: 3kV
- Lithium-ion battery
- 5-year warranty
| Ambient Operating Temperature Range | 0~+50 °C (32~+122 °F) |
|---|---|
| Input Voltage | 100-347 VAC |
| Surge Protection | 3 kV (L-N) |
| Recharge Time | 24 Hours |
| Output Voltage | 170 VDC |
| Max Output Current | 235 mA |
| Max Input Current | 200 mA |
| IP Rating | IP65 |
| Input Connection Type | Pigtail |
| Battery Type | Li-ion |
| Finish | Red |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Emergency Operation Time | ≥90 Minutes |
| Dimming Control | 0-10V |
| Dimmable | Yes |
| Certifications/Compliance | CEC Title 20 Compliant, UL Listed |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
