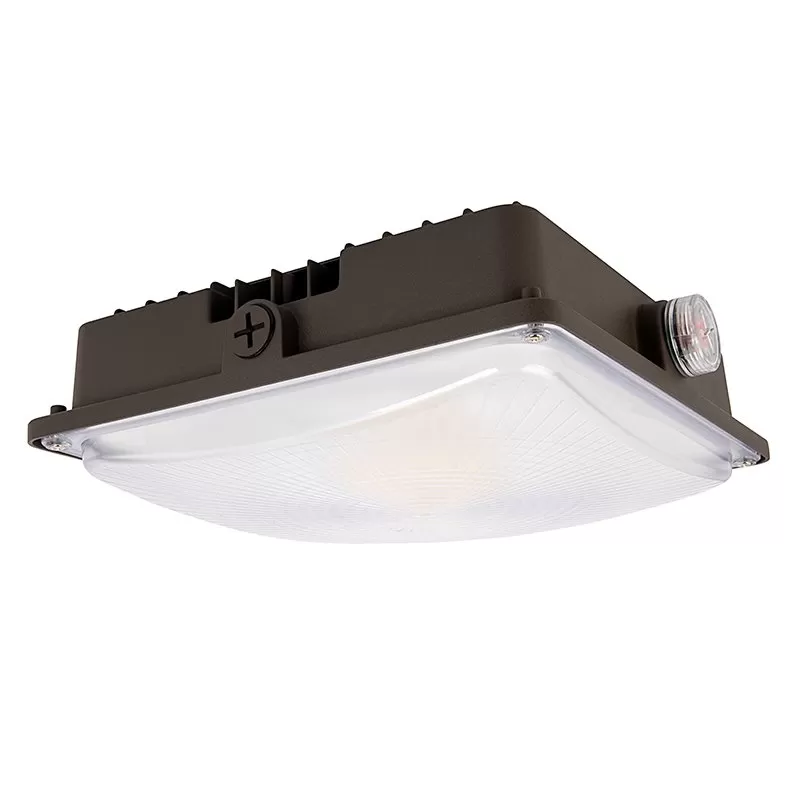

The LED Parking Garage Canopy Light features three field selectable color temperatures and wattages. The fixture has a bypassable photocell for dusk-to-dawn operation. Easily surface mount or pendant mount the fixture using the 3/4” NPT conduit entry point. Ideal for parking garages, gas stations, and outdoor commercial applications.

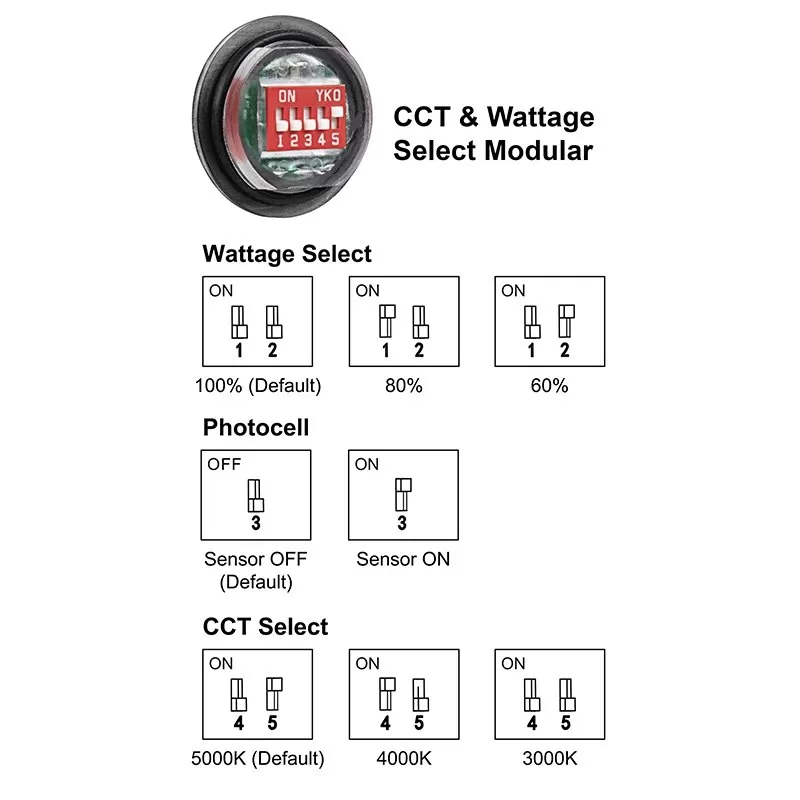

- Select wattage and CCT via externally accessible DIP switch
- Bypass photocell via same DIP switch
- Bronze die cast aluminum housing- RAL 8019
- IP65 wet location rated

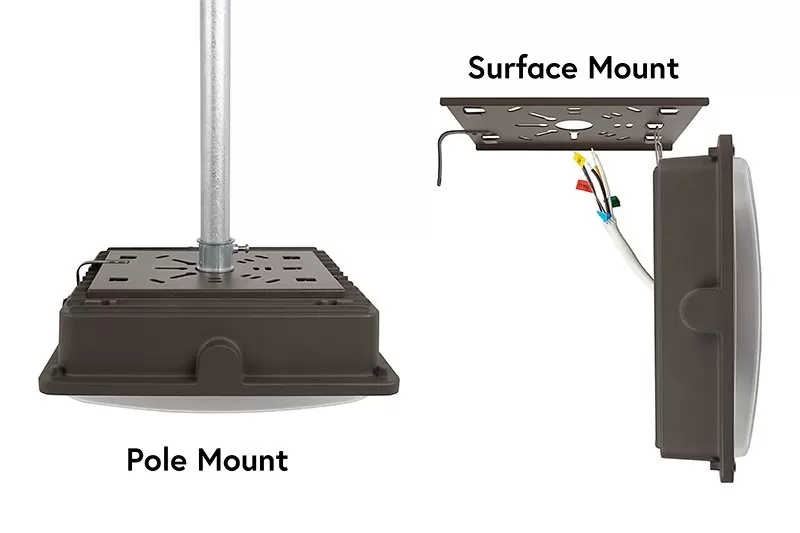

- Surface mount or pendant mount with 3/4” NPT conduit entry point
- Surface mount hardware included
- Also 5000K available in 50W and 75W
- Compatible with our Merrytek motion sensor
- 120~277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5 year warranty
| Beam Angle | 160° |
|---|---|
| Material | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Voltage | 120-277 VAC |
| UL File Number | E366643 |
| Standards And Certifications | Certified by UL, DLC Premium |
| Product Weight | 4lb 2.4oz (1.88kg) |
| Power Factor | ≥0.9 |
| Power Consumption | 30 Watts, 40 Watts, 50 Watts |
| Photocell Options | Bypassable Photocell |
| Operating Temperature | -40~+50 °C (-40~+122 °F) |
| Microwave Motion Sensor | Optional |
| Lumen | 3750 Lumens, 5000 Lumens, 6250 Lumens |
| Brand | Super Bright LEDs |
| LED Lifetime | 55000 Hours |
| LED Color | Selectable CCT |
| IP Rating | IP65 |
| Input Connection Type | Pigtail |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 125 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 108/144/181 mA @ 277 VAC, 250/333/417 mA @ 120 VAC |
| Comparable Wattage | 175 Watt Metal-Halide |
| CCT Value | 3000K, 4000K, 5000K |

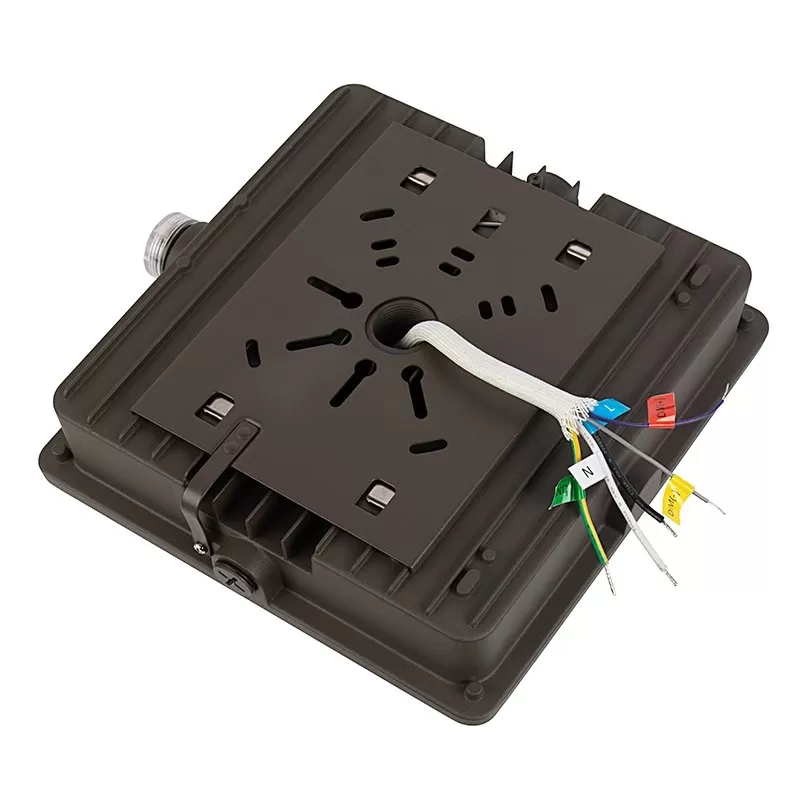

| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
