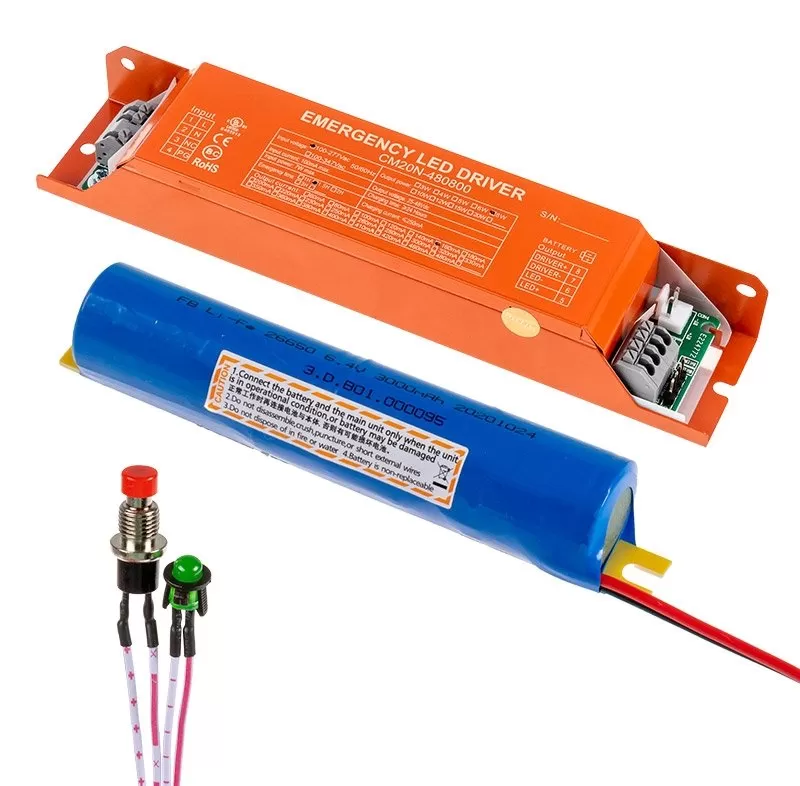

In-Fixture Compact Emergency LED Driver And Battery Pack – 8W – 24-48 VDC

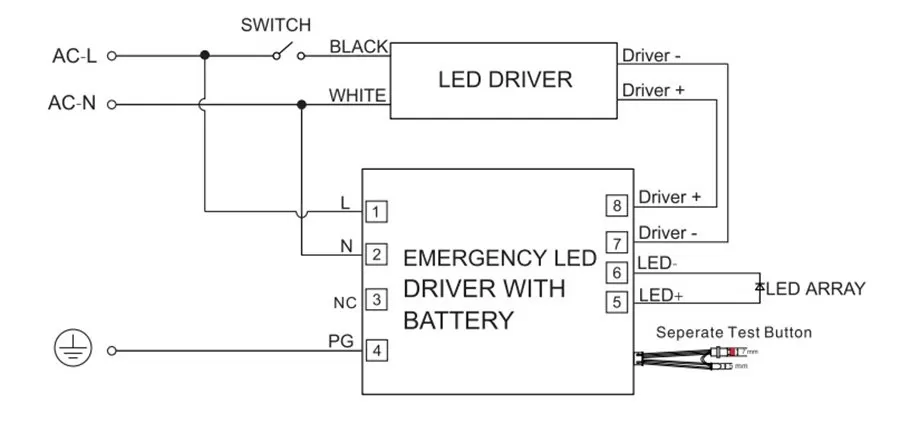

The BLD-CM20N-480800 emergency LED driver and battery pack works with LED drivers in commercial luminaires to keep them powered during emergency outages. When AC supply power is lost in the event of a power outage, the emergency driver switches on automatically to provide backup battery power directly to LED arrays at a rated output voltage of 25-48 VDC. The superior LiFePO4 battery provides backup light for a minimum of 90 minutes, with 10 times the shelf life of a traditional lead acid battery. The emergency battery and driver kit are UL924 Listed and allow for both field and factory installations on suitable LED luminaires. The compact, modular design of this kit is ideal for installation in-fixture as well to accommodate a wider variety of installation types than more traditional emergency backup drivers/batteries with out sacrificing performance.

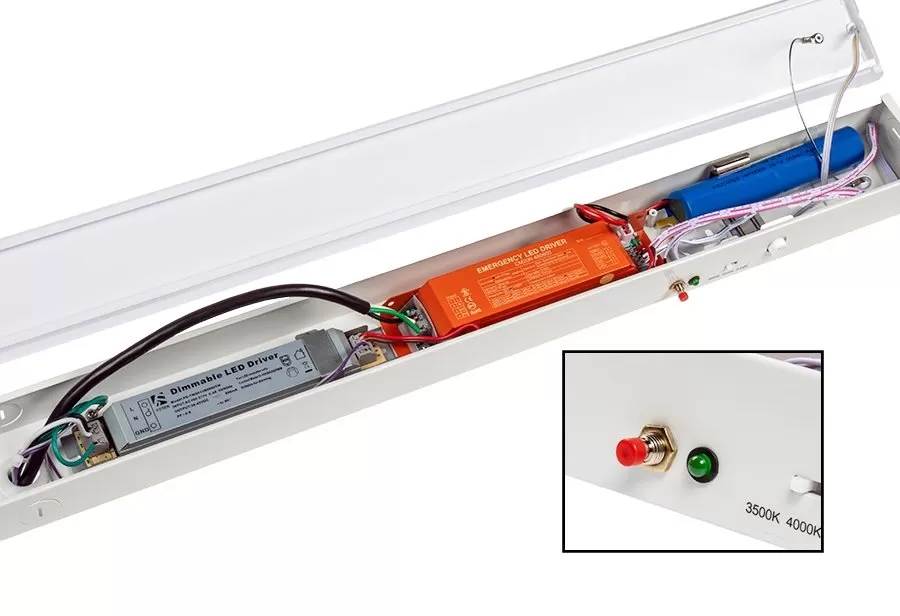

• Compact, modular design allows in-fixture installation

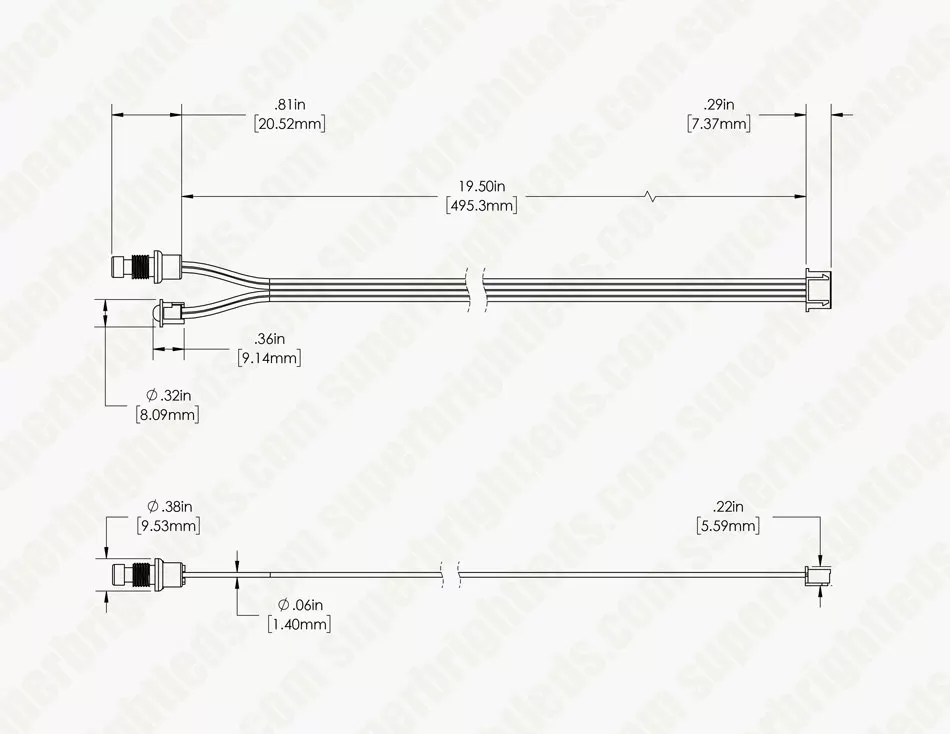

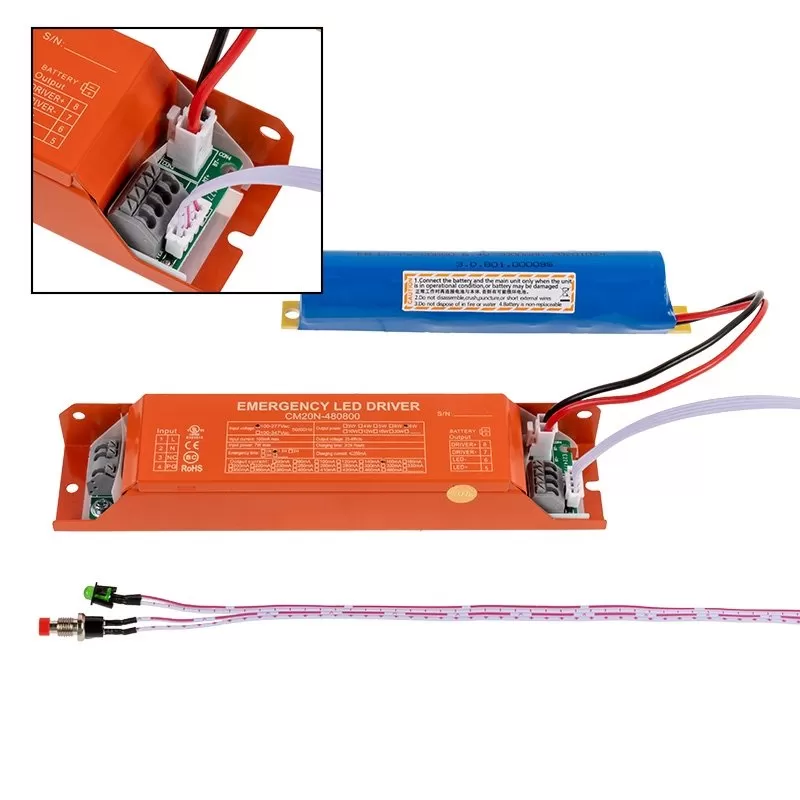

• Included remote test switch/charge indicator module
• Housing constructed of durable steel
• Soft switching to prevent voltage spikes and increase longevity of the LED modules
• Operating temperature range of 32°–122° F
• Wide range input voltage – 100–277 VAC
• 8 W constant power 25–48 VDC output
• 200–400 mA output (relative to 25–48 VDC voltage)
• Rated IP20, suitable for damp locations
• Open/Short/Over-Voltage/Over Temperature protection
• AC LED driver output cannot exceed 150W or 4A
• UL924 Listed
• 5 year warranty
