$20.99
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease
Green Creative’s Elevate Series 2×2 Troffer Retrofit Kit is designed to easily install in existing 2×2 troffers. The retrofit kit replaces a fixture with up to three 3ft 17-watt T8 tubes. The steel housing is sleek and lightweight, making installation easy. The curved, frosted lens delivers 120 degrees of uniform light. This long-lasting fixture has an L70 lifetime of 100,000 hours and a high 143 lm/W.
Product Details:
- White steel housing and frosted lens
- 0-10 V Dimming
- Installs in existing 2×2 troffers
- 120-277 VAC
- UL Classified
- 10-year warranty
| Beam Angle | 120° |
|---|---|
| LED Color | Natural White |
| UL File Number | E364641 |
| Rated Life (L70) | 100000 Hours |
| Product Weight | 8lb 6.4oz (3.81kg) |
| Product Materials | Steel Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 25 Watts |
| Operating Voltage | 120-277 VAC |
| Manufacturer Part Number | 25TROFKIT22DIM/840/277V |
| Intensity | 3600 Lumens |
| Lens | Frosted |
| Frame | White Aluminum |
| Brand | Green Creative |
| Finish | White |
| Equivalency | 3-lamp 17W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 144 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |

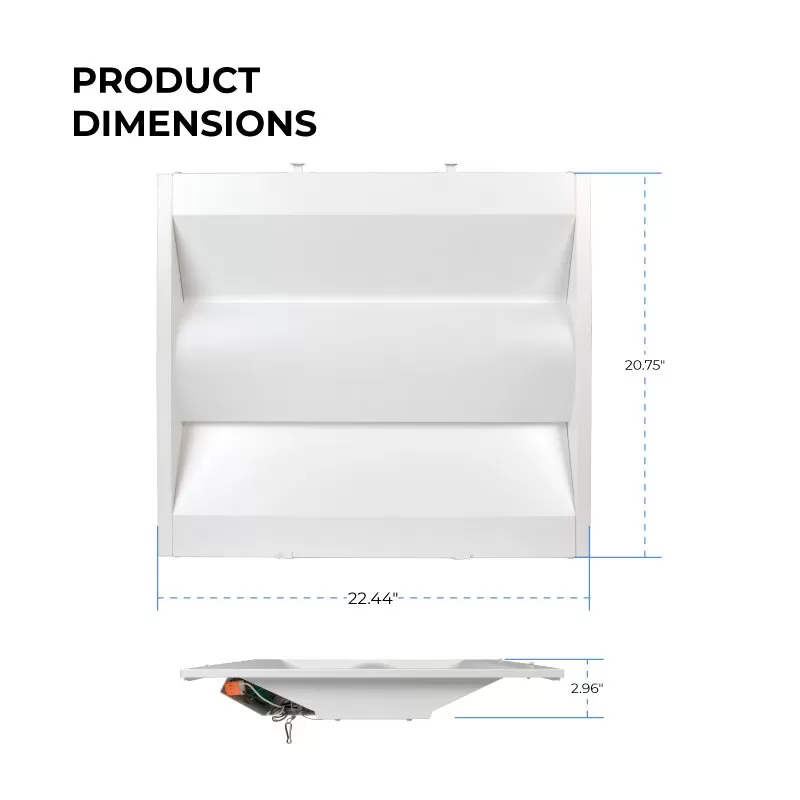

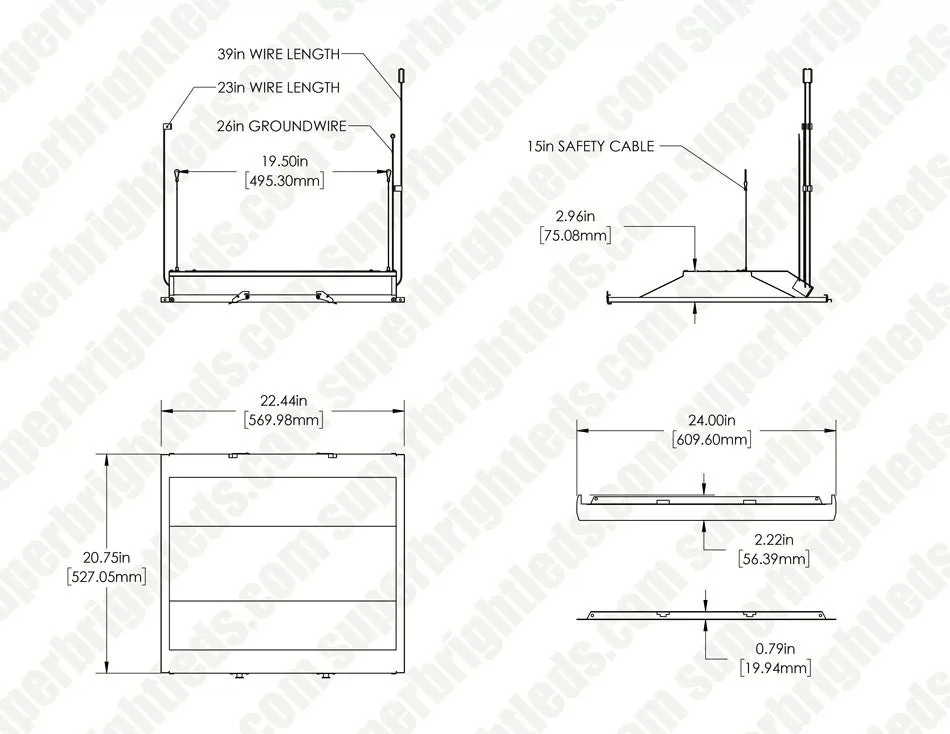

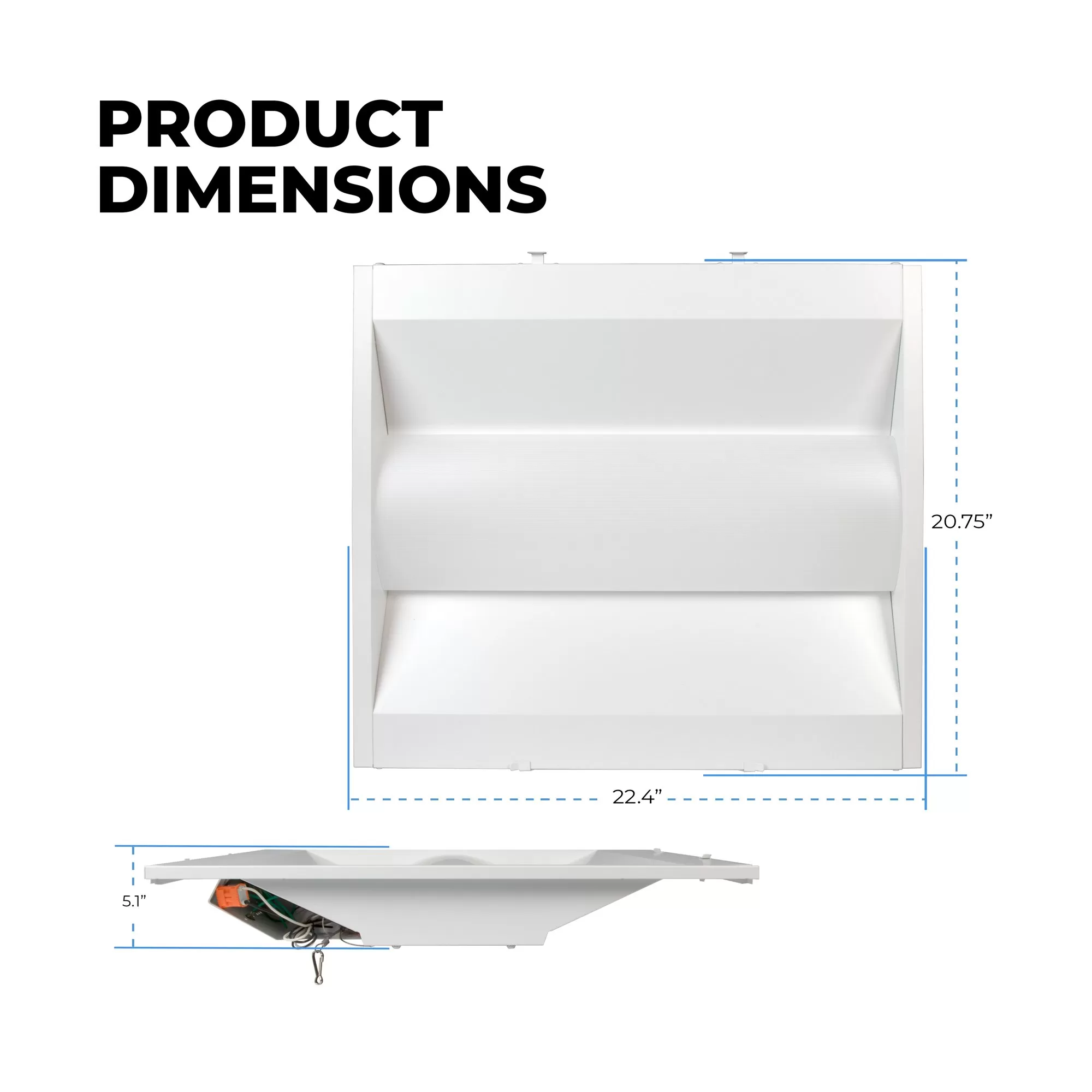

| Dimensions | 2ft x 2ft |
| Current Draw | 210 mA @ 120 VAC, 90 mA @ 277 VAC |
| CRI | 80+ |
| Certifications/Compliance | UL Classified |
| CCT Value | 4000K |
| Warranty | 10 Year |
