FlatMax 2X4 LED Flat Light Panel – Selectable Wattage And CCT – Dimmable – Up To 5,200 Lumens – 27W / 36W / 45W – 3500K / 4000K / 5000K – 2-Pack

Home / Interior Lighting / LED Panel Lights & Troffer Lights
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack - Image 2
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack - Image 3
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack - Image 4
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack - Image 5
FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack - Image 6

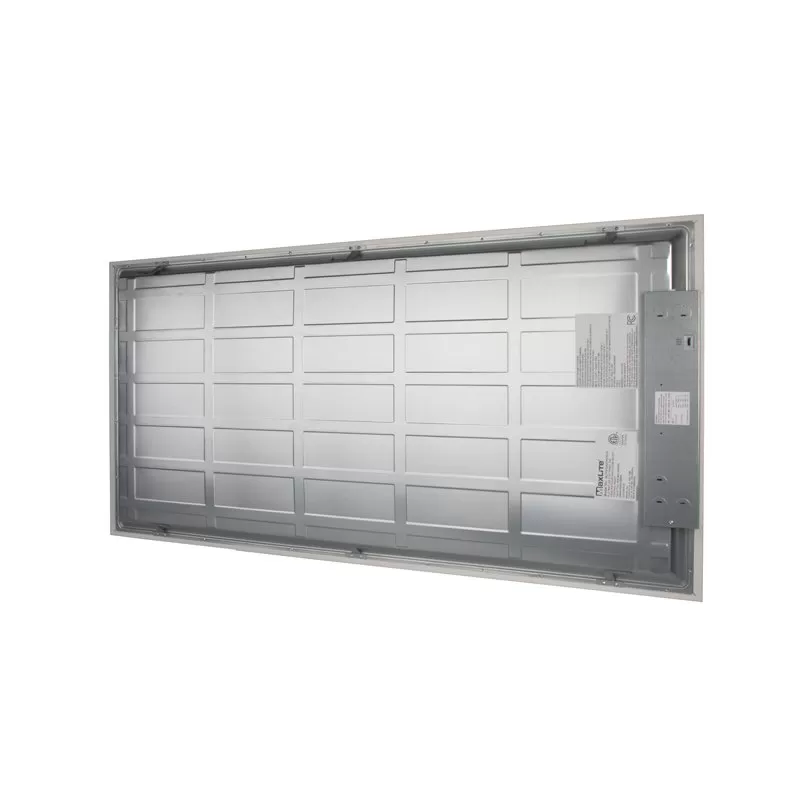

FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack -Lighting Decoration Store mlfp24g427wcscr back 1

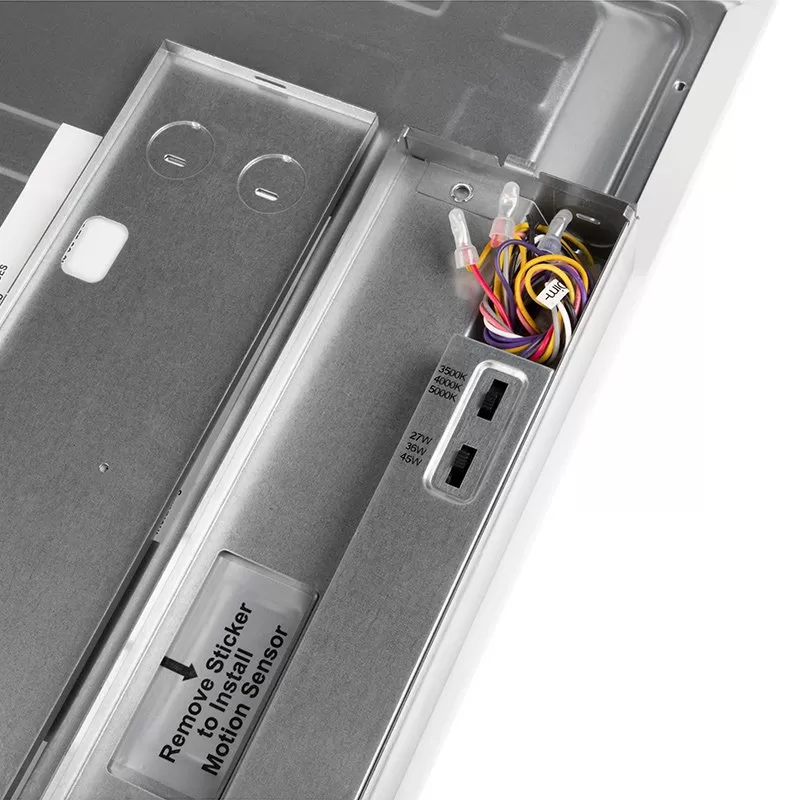

FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack -Lighting Decoration Store mlfp24g427wcscr switches

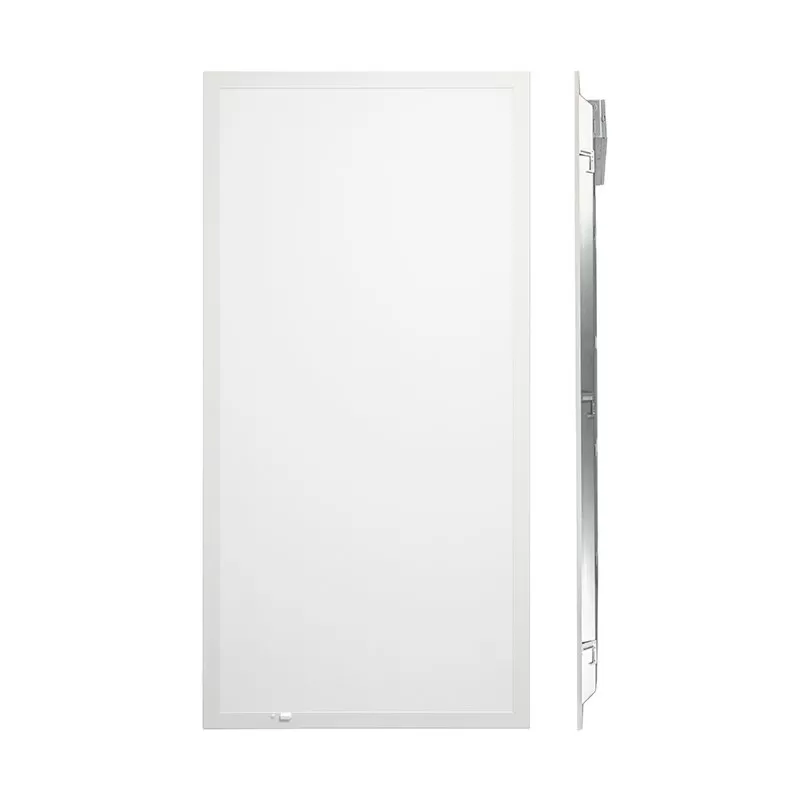

FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack -Lighting Decoration Store mlfp24g427wcscr angles

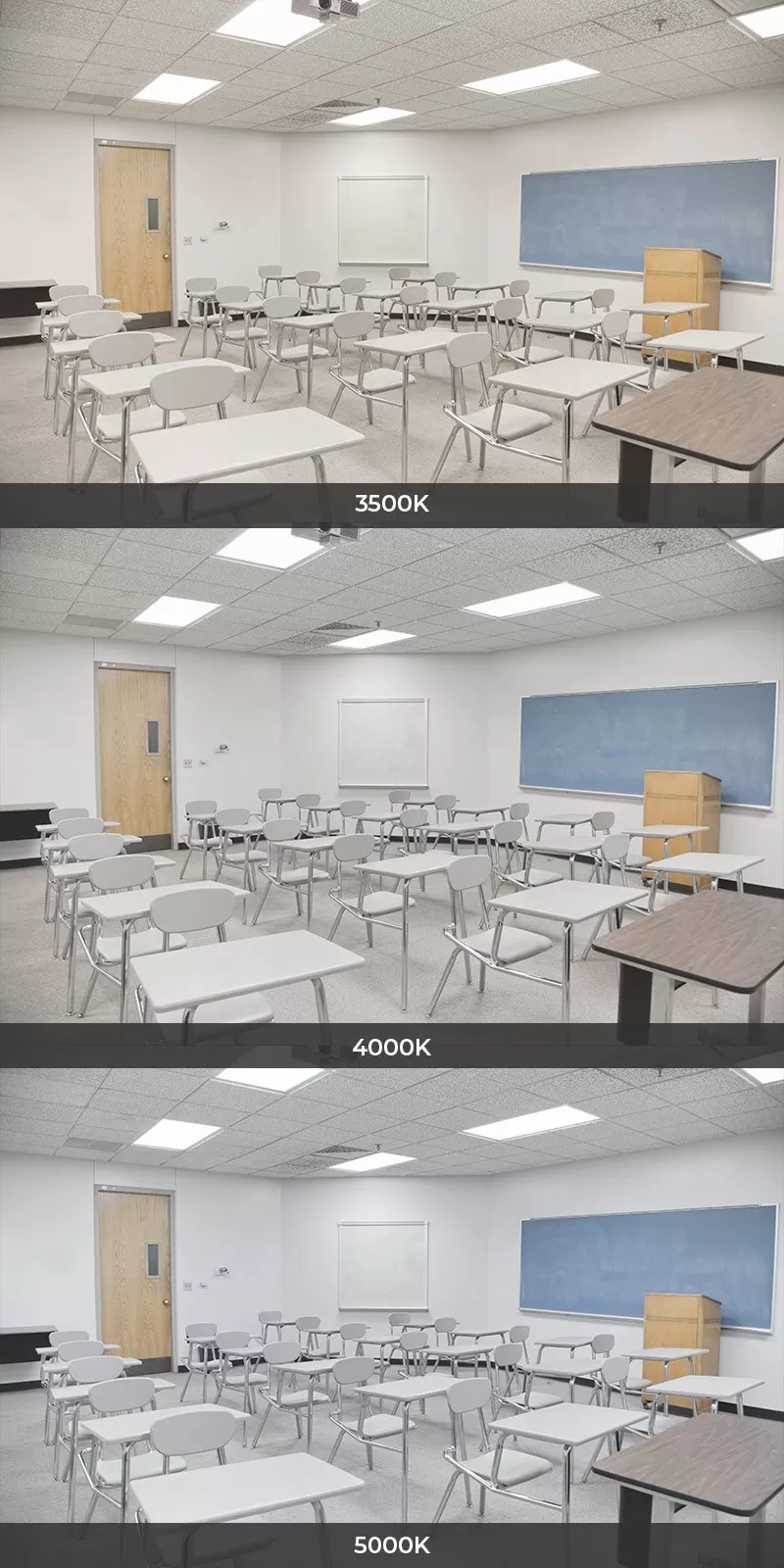

FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack -Lighting Decoration Store mlfp24g427wcscr 2pk cct app

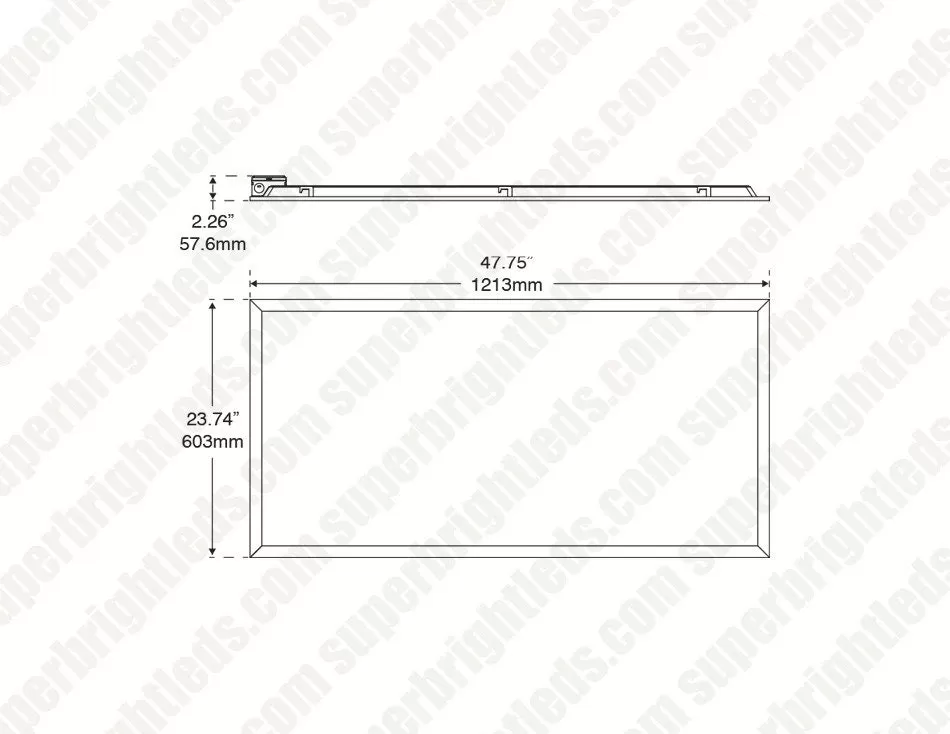

FlatMax 2X4 LED Flat Light Panel - Selectable Wattage And CCT - Dimmable - Up To 5,200 Lumens - 27W / 36W / 45W - 3500K / 4000K / 5000K - 2-Pack -Lighting Decoration Store mlfp24g427wcscr dimensional draw

$98.99

Buy Now
SKU: MLFP24G427WCSCR-2PK Categories: Interior Lighting, LED Panel Lights & Troffer Lights Tag: Super Bright LEDs
  • Online customer care, always here for you.
  • Shop with confidence, enjoy free returns.
  • Have the best deals
  • Shop with Ease
Browse
  • Commercial Exteriors
    • Bollard Lights
    • Dusk To Dawn Area Lights
    • Gooseneck Barn Lights
    • LED Canopy Lights
    • LED Flood Lights
    • LED Parking Lot Lights
    • LED Wall Packs
    • Street Lights
  • Hanging Lighting
    • Ceiling Lights
    • Chandeliers
    • Kitchen Island Pendants
    • Mini Pendants
    • Pendant Lights
  • Interior Lighting
    • LED Panel Lights & Troffer Lights
    • LED Track Lighting
    • Recessed Downlighting
    • Strip Light Fixtures
  • LED Warehouse Lighting
    • LED Exit Signs and Emergency Lights
    • LED Forklift Safety Lights
    • LED High Bay Lights
  • Residential Lighting
    • Flush Mount Ceiling Lights
    • Outdoor Wall Lights
    • Portable LED Work Lights
    • Smart Lighting
    • Under Cabinet Lighting
    • Wall Switches and Dimmers
  • Uncategorized
  • Wall Lighting
    • Vanity Lights
    • Wall Sconces
  • Description
  • Additional information
  • Reviews (0)

A seamless replacement for 2’X4 fluorescent fixtures, MaxLite’s next-generation FlatMax 2X4 LED Flat Light Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.

Product Details:
  • To simplify operation– pair with cMax control nodes
  • 0-10V Dimmable
  • Surface mount or flange mount
  • 120-277 VAC
  • DLC Standard
  • 10-year standard warranty with labor allowance

Warranty Limitations: Product must be rated for application per the Product Data Sheet (PDS); operated ≤16 hrs; in ambient temperatures -4°F to 77°F. If ambient temperatures fall outside the -4°F to 77°F range, product is warrantied for 5-Years according to the operating temperature range specified on the PDS. Up to $25/unit; registration required. Additional coverage may be available for purchase; contact MaxLite. Excludes EM/MS versions; component warranty applies.

Ambient Operating Temperature

-20~+50 °C (-4~+122 °F)

Input Connection Type

Pigtail

Warranty

10 Year

Shipping Exclusions and Details

Excluded From Free Shipping

Rated Life (L70)

100000 Hours

Product Materials

Aluminum, Polystyrene, Steel

Power Factor

≥0.9

Power Consumption

27 Watts, 36 Watts, 45 Watts

Intensity

3260 Lumens, 4170 Lumens, 5200 Lumens

Lens Type

Polystyrene

Lens

Frosted

LED Color

Cool White, Natural White, Warm White, Selectable CCT

IP Rating

IP20

Integrated Surge Protection

1 kV

Frame

White Aluminum

Beam Angle

120°

Finish

White

Equivalency

2-lamp 32W T8 Tubes

Environmental Rating

Non-weatherproof, Suitable for Damp Locations

Efficacy

126 lm/W

DLC Product ID

PSR53N2J

Dimming Type

0-10V

Dimmable

Yes

Dimensions

2ft x 4ft

Current Draw

225/300/375 mA @ 120 VAC, 97/130/162 mA @ 277 VAC

CRI

80+

Certifications/Compliance

DLC, ETL Listed

CCT Value

3500K, 4000K, 5000K

Brand

MaxLite

Wire Gauge

18 AWG
