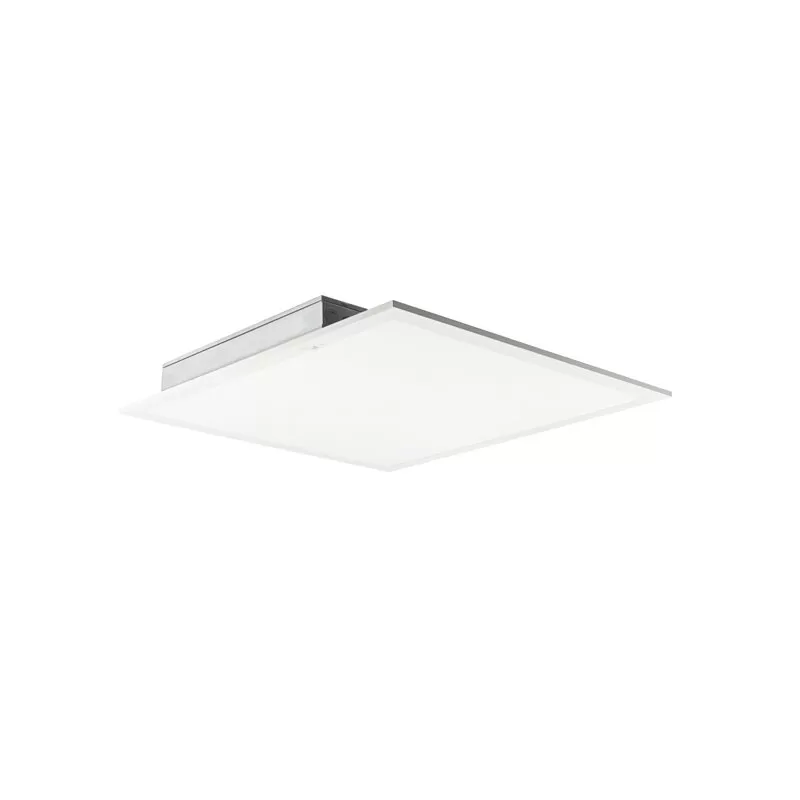

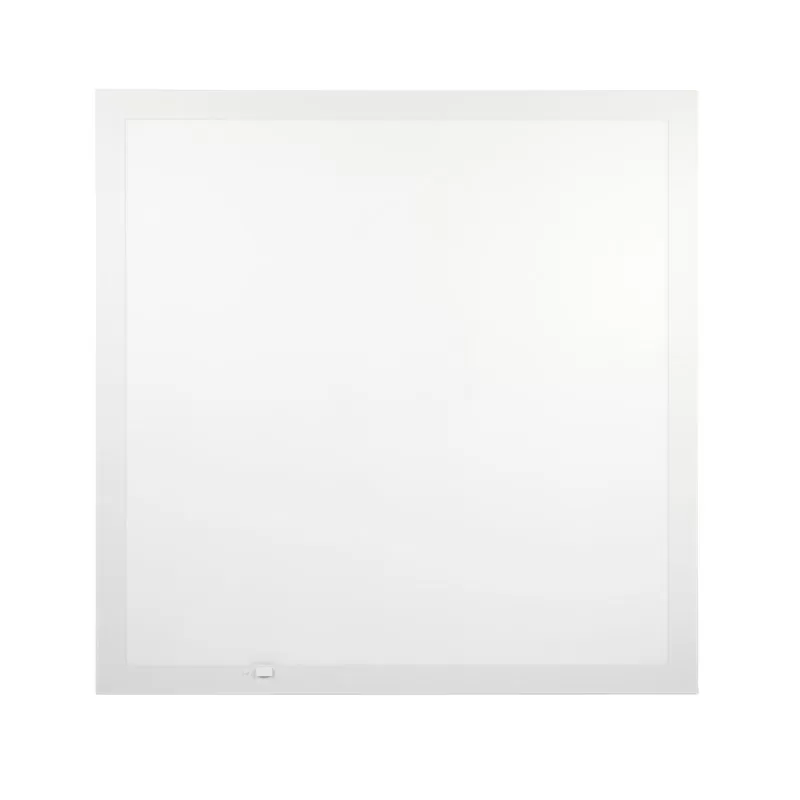

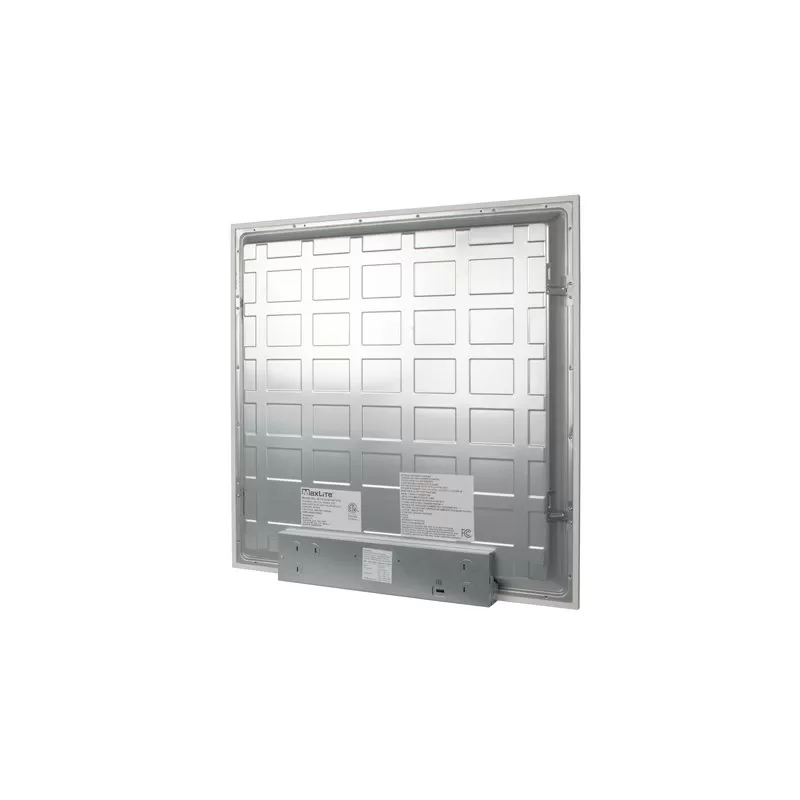

A seamless replacement for 2’X2′ fluorescent fixtures, MaxLite’s next-generation FlatMax 2X2 LED Flat Light Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.
- To simplify operation– pair with cMax control nodes
- 0-10V Dimmable
- Surface mount or flange mount
- 120-277 VAC
- DLC Standard
- 10-year standard warranty with labor allowance
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Input Connection Type | Pigtail |
| Warranty | 10 Year |
| Rated Life (L70) | 100000 Hours |
| Product Weight | 15lb 14.4oz (7.21kg) |
| Product Materials | Aluminum, Polystyrene, Steel |
| Power Factor | ≥0.9 |
| Power Consumption | 18 Watts, 27 Watts, 36 Watts |
| Operating Voltage | 120-277 VAC |
| Intensity | 2080 Lumens, 3040 Lumens, 4000 Lumens |
| Lens Type | Polystyrene |
| Lens | Frosted |
| LED Color | Cool White, Natural White, Warm White, Selectable CCT |
| IP Rating | IP20 |
| Integrated Surge Protection | 1 kV |
| Frame | White Aluminum |
| Beam Angle | 120° |
| Finish | White |
| Equivalency | 3-lamp 17W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 119 lm/W |
| DLC Product ID | PX9RHOZS |
| Dimming Type | 0-10V |
| Dimmable | Yes |

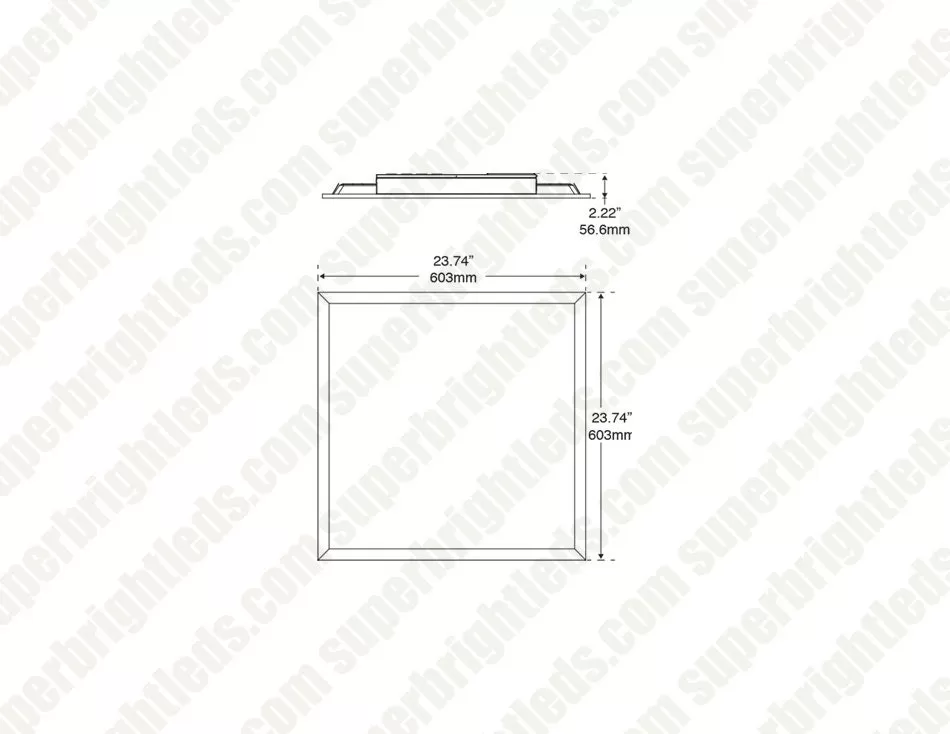

| Dimensions | 2ft x 2ft |
| Current Draw | 150/225/300 mA @ 120 VAC, 65/97/130 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | DLC, ETL Listed |
| CCT Value | 3500K, 4000K, 5000K |
| Brand | MaxLite |
| Wire Gauge | 18 AWG |
