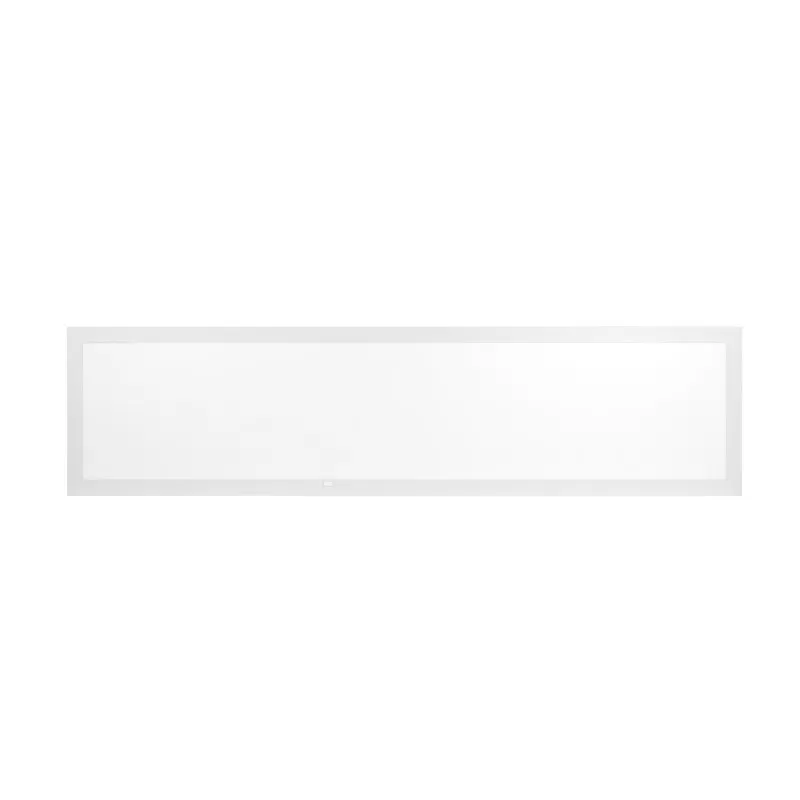

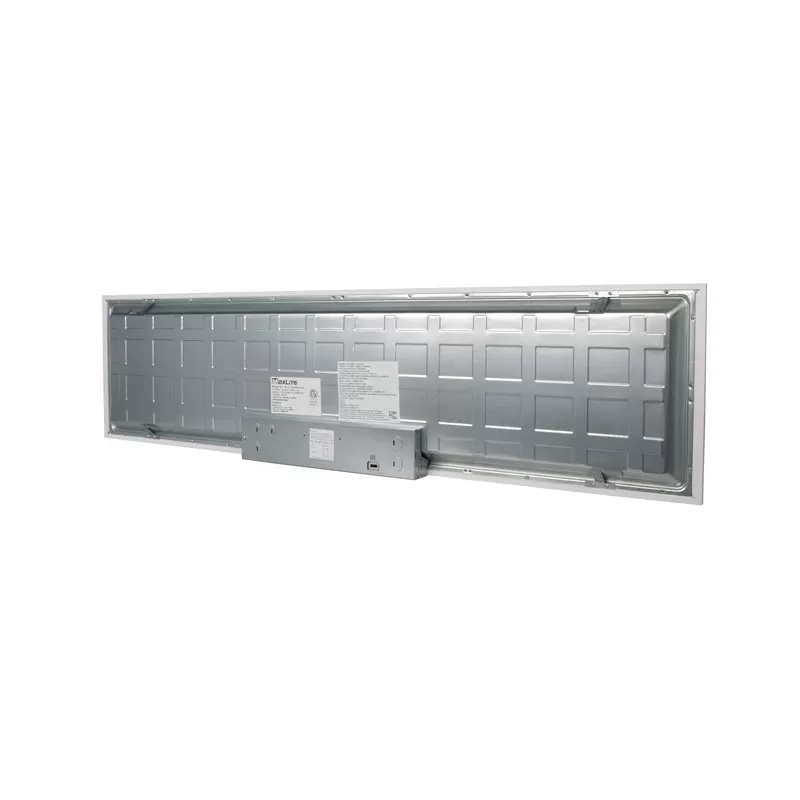

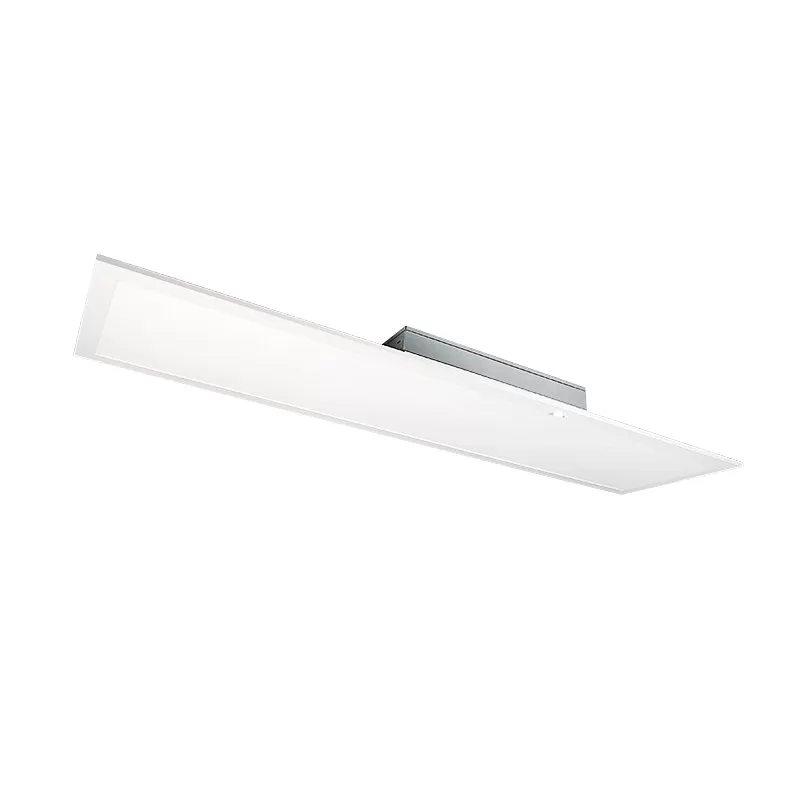

A seamless replacement for 1’x4′ fluorescent fixtures, MaxLite’s next-generation FlatMax 1X4 LED Flat Light Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.
- To simplify operation– pair with cMax control nodes
- 0-10V Dimmable
- Surface mount or flange mount
- 120-277 VAC
- DLC Standard
- 10-year standard warranty with labor allowance
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Integrated Surge Protection | 1 kV |
| Warranty | 10 Year |
| Shipping Exclusions and Details | Excluded From Free Shipping |
| Rated Life (L70) | 100000 Hours |
| Product Weight | 6lb 0oz (2.72kg) |
| Product Materials | Aluminum, Polystyrene, Steel |
| Power Factor | ≥0.9 |
| Power Consumption | 20 Watts, 25 Watts, 30 Watts |
| Operating Voltage | 120-277 VAC |
| Intensity | 2600 Lumens, 3130 Lumens, 3790 Lumens |
| Lens Type | Polystyrene |
| Lens | Frosted |
| LED Color | Cool White, Natural White, Warm White, Selectable CCT |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Beam Angle | 120° |
| Frame | White Aluminum |
| Finish | White |
| Equivalency | 2-lamp 32W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 133 lm/W |
| DLC Product ID | PKL0UT6P |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Dimensions | 1ft x 4ft |
| Current Draw | 167/208/250 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | DLC, ETL Listed |
| CCT Value | 3500K, 4000K, 5000K |
| Brand | MaxLite |
| Wire Gauge | 18 AWG |
