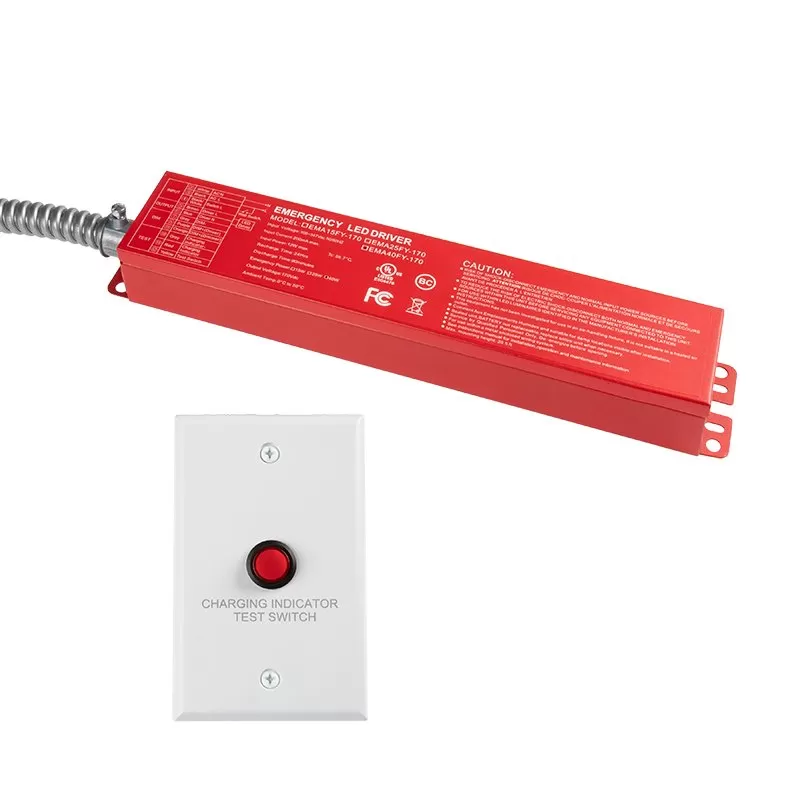

When AC supply power is lost in a power outage, the emergency driver switches on automatically to provide backup battery power to LED drivers at a rated output voltage of 170 VDC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The battery backup has a wide input voltage of 100-347 VAC and powers fixtures up to 300W. The constant current wattage design maintains the output wattage even as the system voltage diminishes. The UL 924 Listed certification meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States. The included test switch/charge indicator module fits in a single-gang box. Ideal for troffers, dimmable light panels, and high bays.
- Flexible conduit houses external wires
- Slim profile for in-fixture applications
- Operating temperature range of 32°-122º F
- IP65 waterproof rating
- Surge protection: 3kV
- Lithium-ion battery
- Compatible with 0-10V dimming
- For use, a dimming driver is required
- 5-year warranty
| Ambient Operating Temperature Range | 0~+50 °C (32~+122 °F) |
|---|---|
| Battery Type | Li-ion |
| Brand | Super Bright LEDs |
| Certifications/Compliance | UL Listed |
| Dimmable | Yes |
| Dimming Control | 0-10V |
| Emergency Operation Time | ≥90 Minutes |
| Environmental Rating | Suitable for Wet Locations |
| Input Connection Type | Pigtail |
| Input Voltage | 100-347 VAC |
| IP Rating | IP65 |
| Max Input Current | 100 mA @ 120 VAC, 43 mA @ 277 VAC |
| Output Voltage | 170 VDC |
| Surge Protection | 3 kV (L-N) |
| Warranty | 5 Year |
