Emergency Battery Backup Inverter – 25W – 100-347V Input – 170 VDC Output

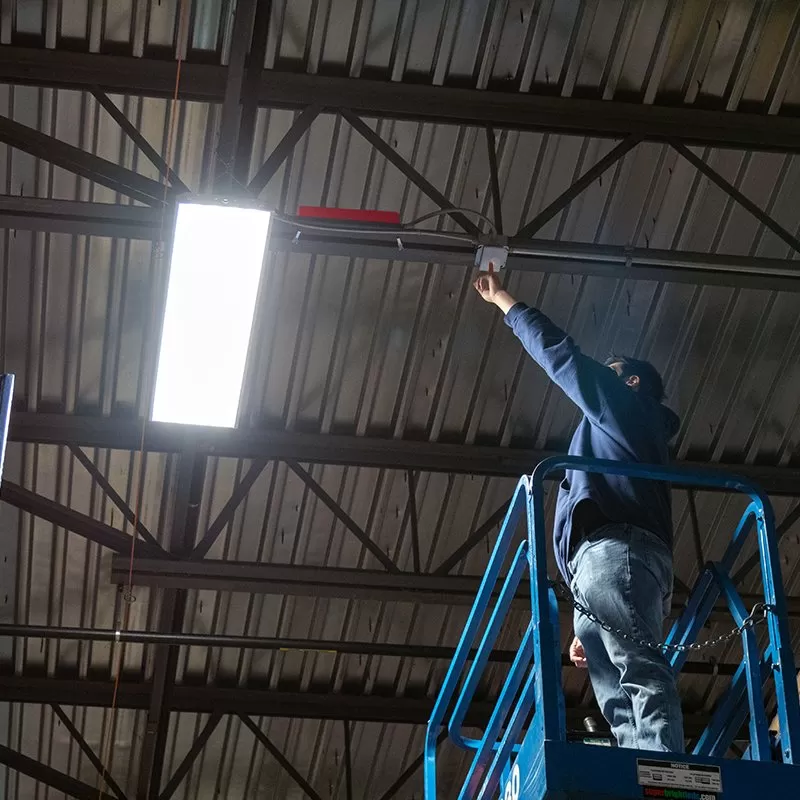

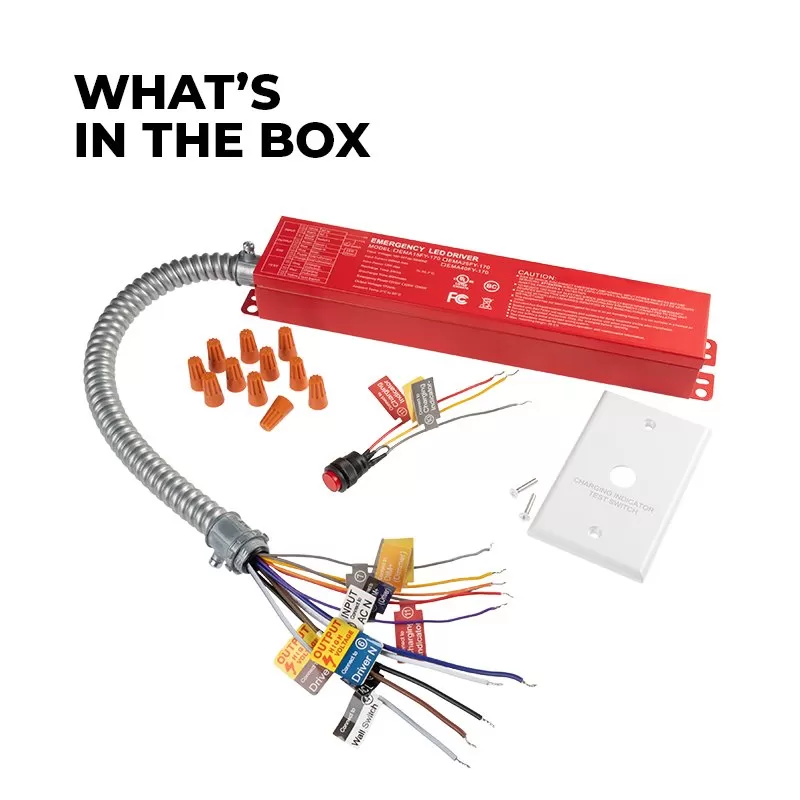

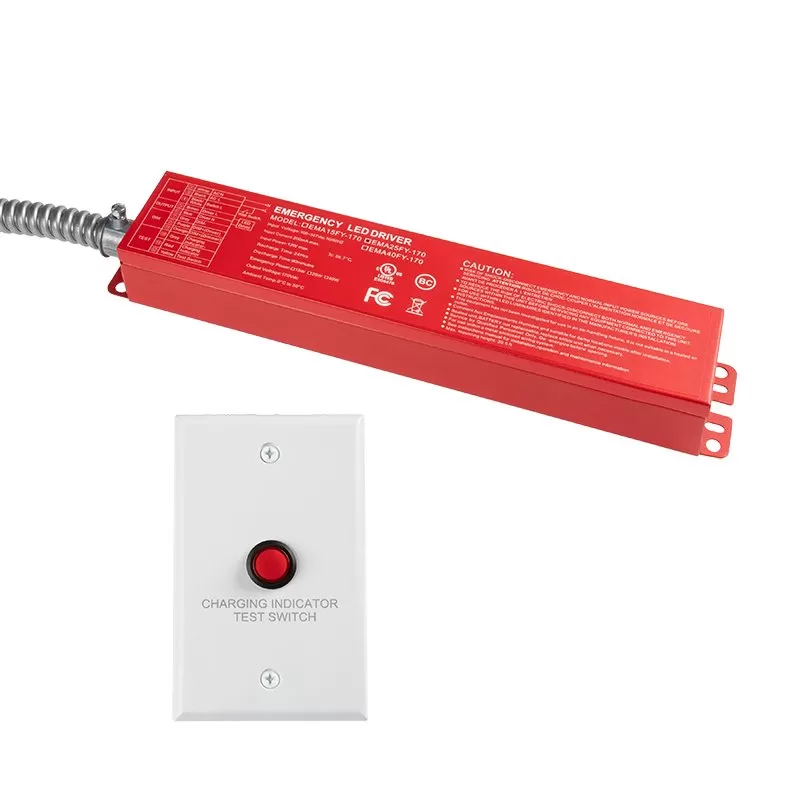

When AC supply power is lost in a power outage, the emergency driver switches on automatically to provide backup battery power to LED drivers at a rated output voltage of 170 VDC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The battery backup has a wide input voltage of 100-347 VAC and powers fixtures up to 200W. The constant wattage power design maintains the output wattage even as the system voltage diminishes. The UL 924 Listed certification meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States. The included test switch/charge indicator module fits in a single-gang box. Ideal for troffers and dimmable light panels.

• Flexible conduit houses external wires
• Slim profile for in-fixture applications
• Operating temperature range of 32°-122º F
• IP65 waterproof rating
• Surge protection: 3kV
• Lithium-ion battery
• Compatible with 0-10V dimming
• For use, a dimming driver is required
• 5-year warranty
