When AC supply power is lost in a power outage, the emergency driver switches on automatically to provide backup battery power directly to LED arrays at a rated output voltage of 20-50 VDC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The battery backup has a wide input voltage of 100-277 VAC and powers fixtures up to 180W. The constant wattage power design maintains the output wattage even as the system voltage diminishes. The UL 924 Listed certification meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States.

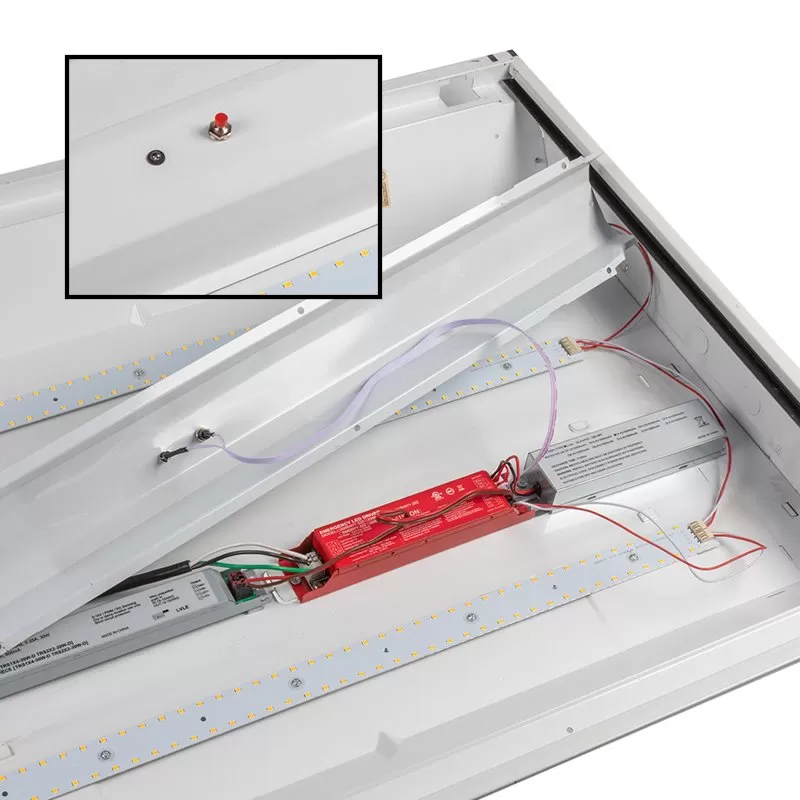

- Slim profile for in-fixture applications
- Operating temperature range of 32°-122º F
- IP65 waterproof rating
- Surge protection: 3kV
- Lithium-ion battery
- 5-year warranty
| Ambient Operating Temperature Range | 0~+50 °C (32~+122 °F) |
|---|---|
| Battery Type | Li-ion |
| Brand | Super Bright LEDs |
| Certifications/Compliance | UL Listed |
| Dimmable | Yes |
| Dimming Control | 0-10V |
| Emergency Operation Time | ≥90 Minutes |
| Environmental Rating | Suitable for Wet Locations |
| Input Connection Type | Pigtail |
| Input Voltage | 100-277 VAC |
| IP Rating | IP65 |
| Max Input Current | 25 mA @ 277 VAC, 58 mA @ 120 VAC |
| Output Voltage | 20-50 VDC |
| Surge Protection | 3 kV (L-N) |
| Warranty | 5 Year |
