DiodeDrive Emergency Back-Up LED Driver – 20W – 15-55 VDC Output

The DiodeDrive CCED Emergency LED driver is an emergency battery pack that works with LED drivers in commercial luminaires for use in emergency power outages. When AC power is lost in the event of a power outage, the emergency driver operates to provide backup battery power at a rated output voltage of 15-55 VDC. 10x the shelf life of traditional lead acid batteries, the superior LiFePO4 batteries provide backup light for a minimum of 90 minutes. The UL924 Listed device allows for both field and factory installations of suitable LED luminaires.

• Flexible conduit houses all external wires for fixture connections

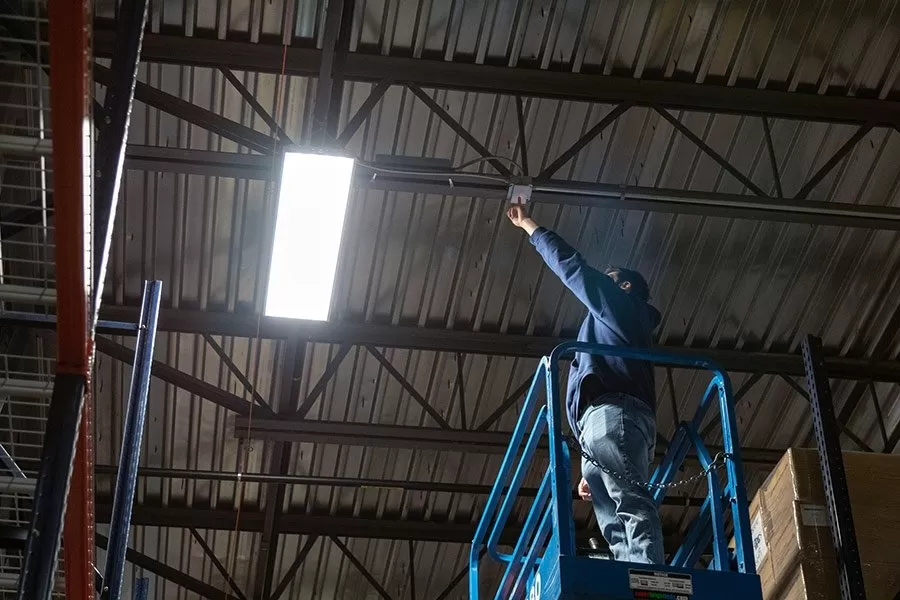

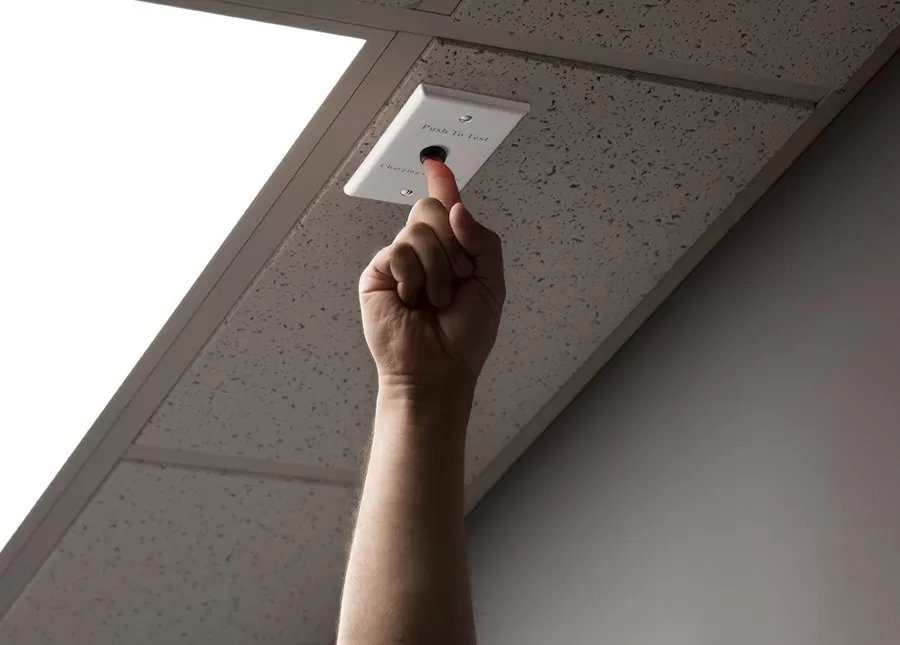

• Remote test switch/charge indicator module (included) fits in a single-gang box
• Soft switching to prevent voltage spikes and increase longevity of the LED modules
• Operating temperature range of 32°–131° F
• 3kV surge protection
• 18 AWG pigtails
• Wide range input voltage – 120–277 VAC
• 363 mA constant current 15–55 VDC output
• Rated IP30, suitable for damp locations
• Open/Short/Over-Voltage/Over Temperature protection
• UL924 Listed, Meets CEC Title 20 efficiency standards
• 5 year warranty
