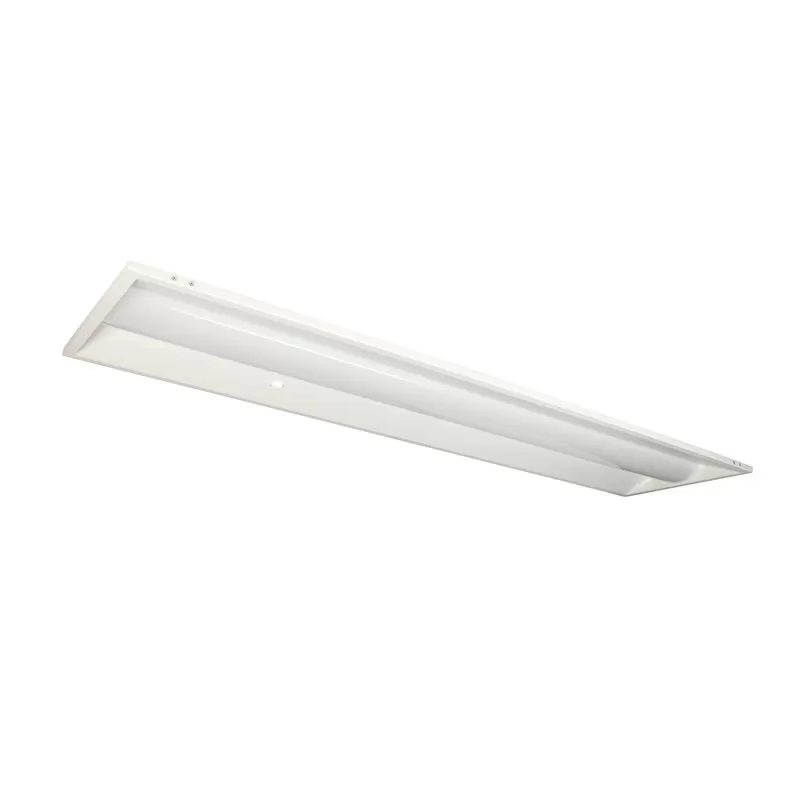

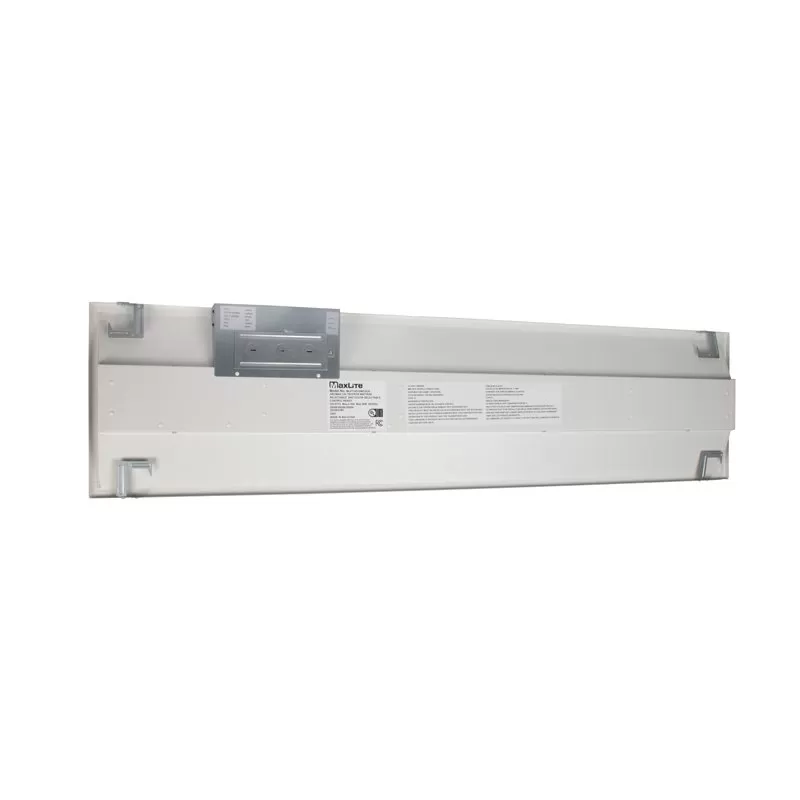

ArcMAX™ 1X4 LED Troffer lay-in panels made by MaxLite are the eye-pleasing and energy efficient replacement for fluorescent troffers in new or remodel construction. CCT and wattage selectable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application. The panel’s high-performance optic system delivers beautifully even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality, and retail interiors.
- 0-10V Dimming
- Surface mount, Flange mount, or use Aircraft cables
- 120-277 VAC
- DLC 5.1 Premium
- 10-year standard warranty with labor allowance
Warranty Limitations: Product must be rated for application per the Product Data Sheet (PDS); operated ≤16 hrs; in ambient temperatures -4°F to 77°F. If ambient temperatures fall outside the -4°F to 77°F range, product is warrantied for 5-Years according to the operating temperature range specified on the PDS. Up to $25/unit; registration required. Additional coverage may be available for purchase; contact MaxLite. Excludes EM/MS versions; component warranty applies.
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
| Integrated Surge Protection | 1 kV |
| UL File Number | E361010 |
| Shipping Exclusions and Details | Excluded From Free Shipping |
| Rated Life (L70) | 100000 Hours |
| Product Weight | 6lb 12.8oz (3.08kg) |
| Product Materials | Polystyrene, Steel |
| Power Factor | ≥0.9 |
| Power Consumption | 16 Watts, 20 Watts, 30 Watts |
| Operating Voltage | 120-277 VAC |
| Intensity | 2000 Lumens, 2500 Lumens, 3750 Lumens |
| Lens Type | Polycarbonate |
| Lens | Frosted |
| LED Color | Cool White, Natural White, Warm White, Selectable CCT |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Beam Angle | 120° |
| Frame | White Aluminum |
| Finish | White |
| Equivalency | 2-lamp 32W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 125 lm/W |
| DLC Product ID | PW9OQE90 |
| Dimming Type | 0-10V |
| Dimmable | Yes |

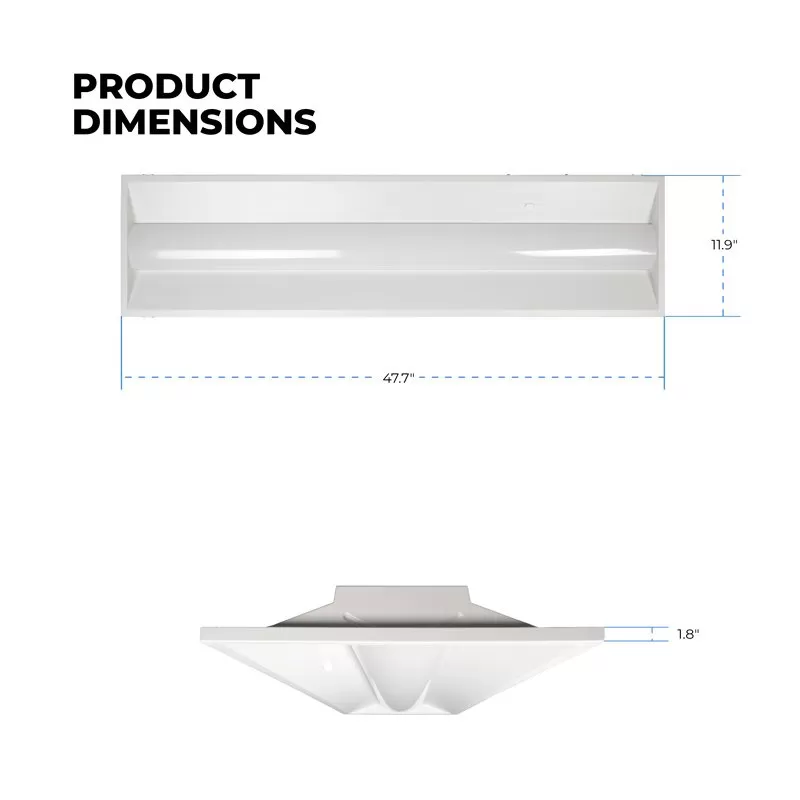

| Dimensions | 1ft x 4ft |
| Current Draw | 133/167/250 mA @ 120 VAC, 58/72/108 mA @ 277 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC Premium |
| CCT Value | 3500K, 4000K, 5000K |
| Brand | MaxLite |
| Warranty | 10 Year |
