$69.99
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease

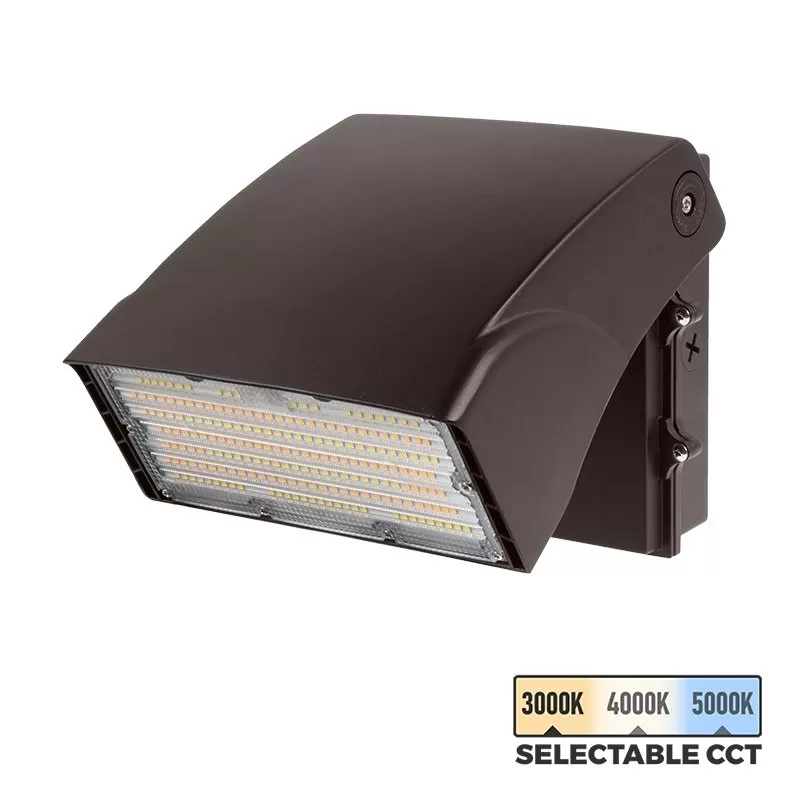

This full cutoff wall pack features adjustable housing and field selectable CCT. The adjustable housing can be rotated 90° to precisely aim light and the full cutoff design eliminates wasted light. Field selectable CCT allows color temperature to be chosen during installation. Photocell is integrated for dusk-to-dawn operation. Weatherproof IP65 rating protects the fixture in wet conditions. Power with one of 5 conduit entry points: one on each side and one on the back of the housing.

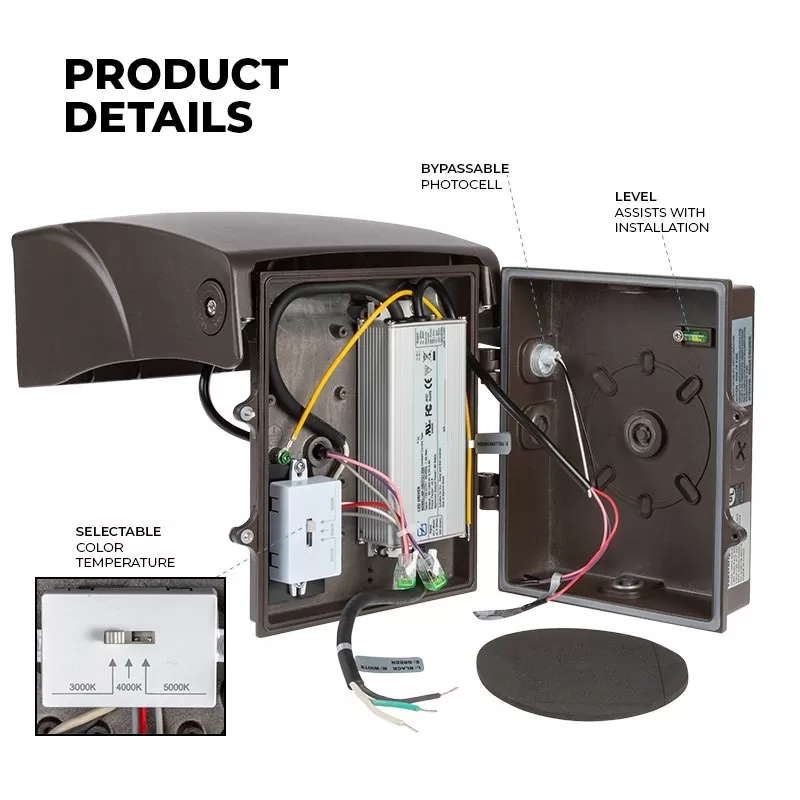

- Field selectable CCT is operated with an internal switch
- Bypass photocell by unplugging sensor
- Bronze die-cast aluminum housing; polycarbonate lens
- IP65 wet location rated
- 7 step 90° angle adjustment
- 90° X 110° beam pattern; NEMA 5X6

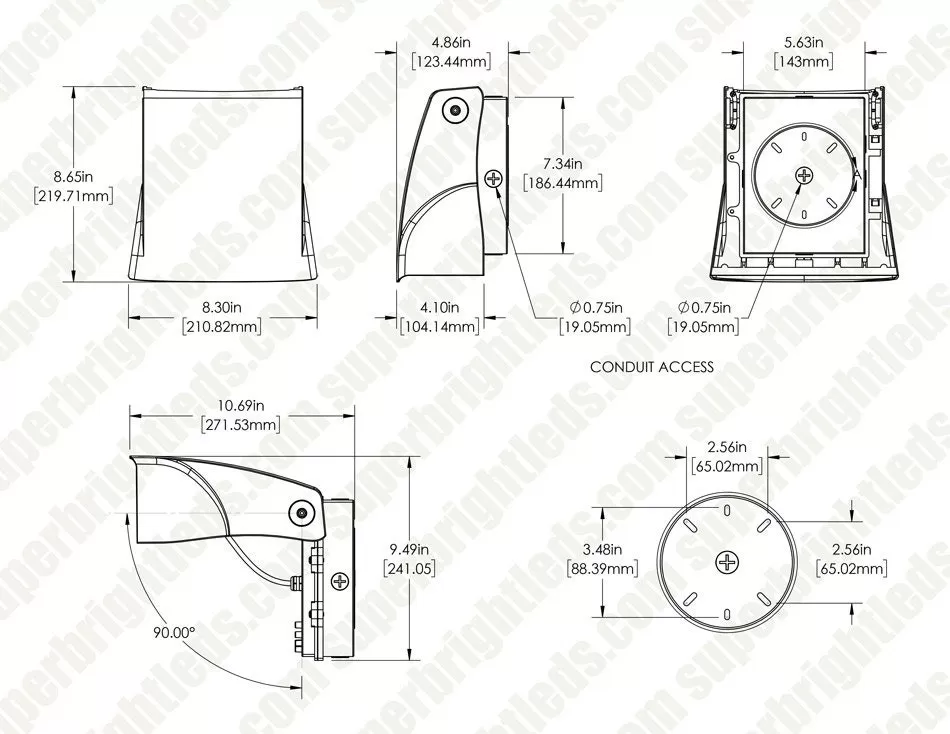

- 5 conduit entry points
- 120~277 VAC
- DLC 5.1 Premium
- Certified by UL
- 5 year warranty
| Ambient Operating Temperature | -40~+50 °C (-40~+122 °F) |
|---|---|
| IP Rating | IP65 |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |

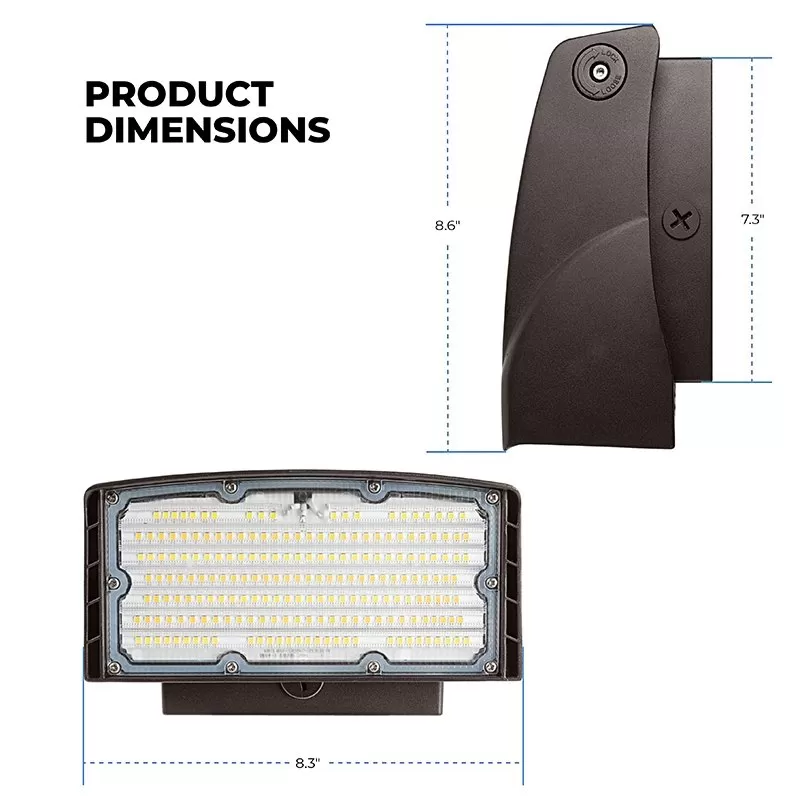

| Product Weight | 5lb 1oz (2.3kg) |
| Product Materials | Die-Cast Aluminum Body, Polycarbonate Lens |
| Power Factor | ≥0.9 |
| Power Consumption | 80 Watts |
| Photocell Operation | on < 30 lx, off > 130 lx |
| Photocell | Integrated Photocell (bypassable internally) |
| Operating Voltage | 120-277 VAC |
| Intensity | 11200 Lumens |
| Lens Type | Polycarbonate |
| LED Color | Selectable CCT |
| Integrated Surge Protection | 6 kV |
| Beam Angle | 90° x 110° |
| Input Connection Type | Pigtail |
| Finish | Bronze |
| Equivalency | 175 Watt Metal-Halide |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 140 lm/W |
| Distribution Type | NEMA 5×6 |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 290 mA @ 277 VAC, 54 mA @ 277 VAC, 670 mA @ 120 VAC |
| Certifications/Compliance | Certified by UL, DLC Premium |

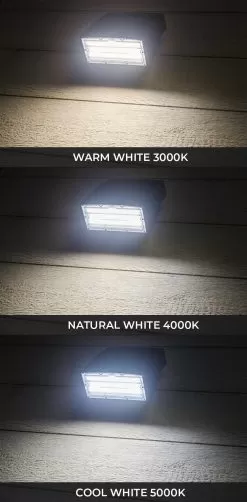

| CCT Value | 3000K, 4000K, 5000K |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
Be the first to review “Adjustable Full Cutoff LED Wall Pack – 80W – Selectable CCT – Bypassable Photocell – 175W MH Equivalent – 3000K / 4000K / 5000K”
