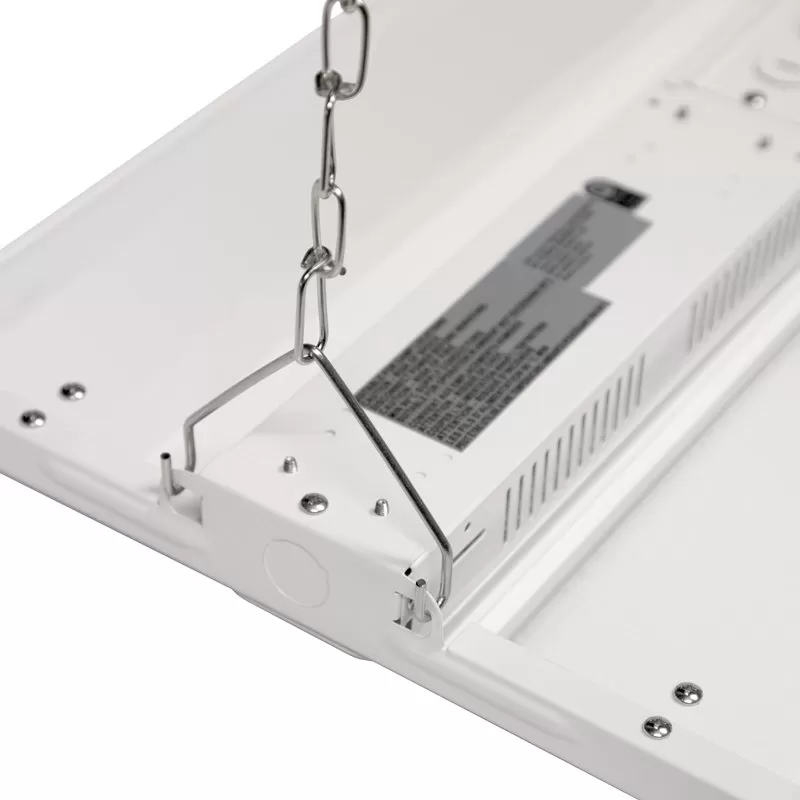

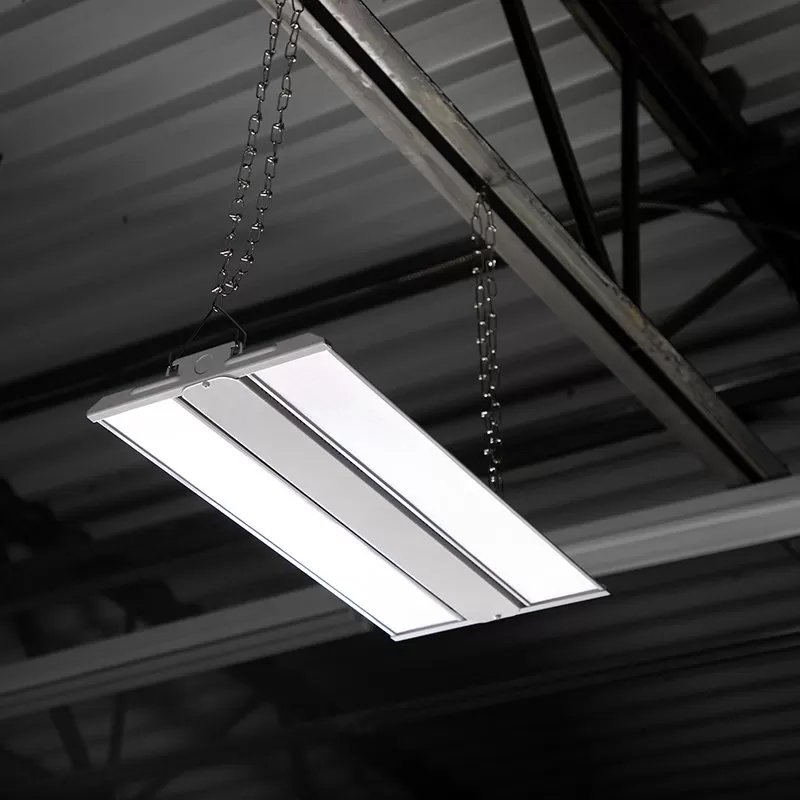

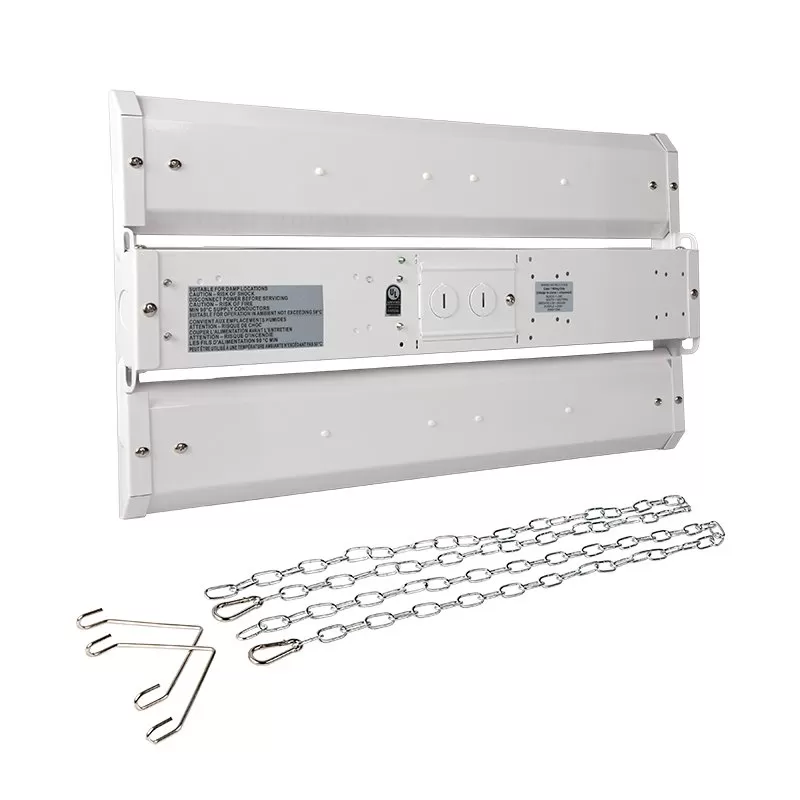

Replace conventional fluorescent and metal halide fixtures in warehouses, distribution centers, and grocery stores. The LED linear high bay delivers 11,900 lumens with a wide Type V light distribution. Steel housing is powder coated for added durability and the impact-resistant polycarbonate lens diffuses light. High 140 lm/W efficacy maximizes energy savings. Mount using the included suspension mounting kit or use the optional pendant mounting kit for pendant mounting and surface mounting.
- White powder-coated steel housing and polycarbonate lens
- IP20 rating for damp or dry locations only
- 0-10V dimming
- Compatible with optional pendant mounting bracket – sold separately
- Fixture has 1/2″ trade size knockouts
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
| Ambient Operating Temperature | -30~+50 °C (-22~+122 °F) |
|---|---|
| LED Color | Cool White |
| Warranty | 5 Year |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 5lb 8oz (2.5kg) |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 85 Watts |
| Operating Voltage | 120-277 VAC |
| Microwave Motion Sensor | Optional |
| Intensity | 11900 Lumens |

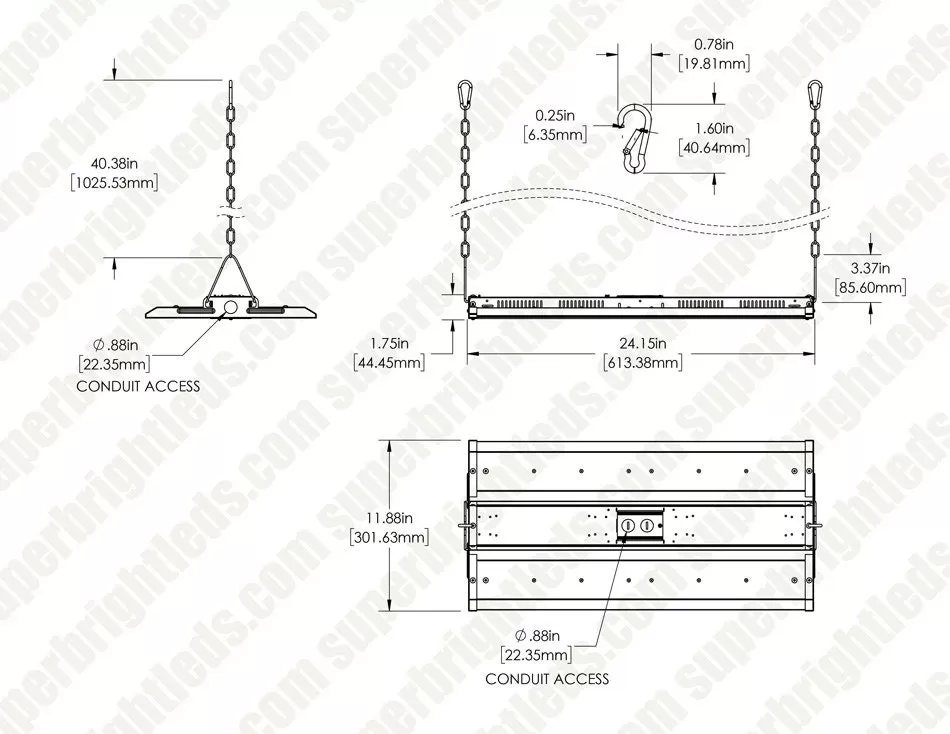

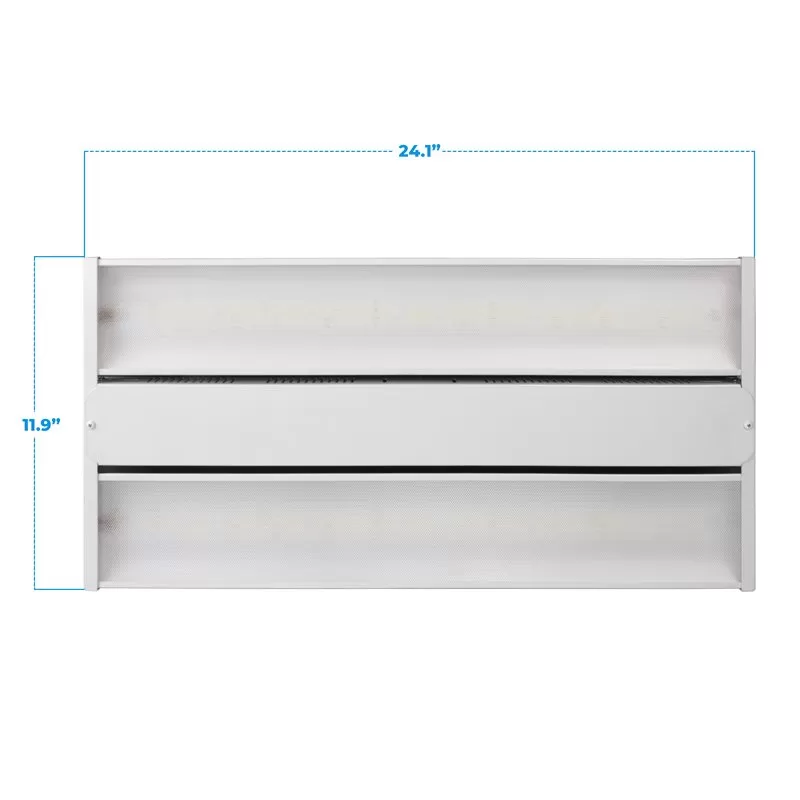

| Length | 24in (2ft) |
| IP Rating | IP20 |
| Beam Angle | 90° |
| Integrated Surge Protection | 2 kV |
| Input Connection Type | Pigtail |
| Finish | White |
| Equivalency | 250 Watt Metal-Halide |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 310 mA @ 277 VAC, 710 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC Premium |
| CCT Value | 5000K |
| Brand | Super Bright LEDs |
| Wire Gauge | 20 AWG |
