$66.49
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease

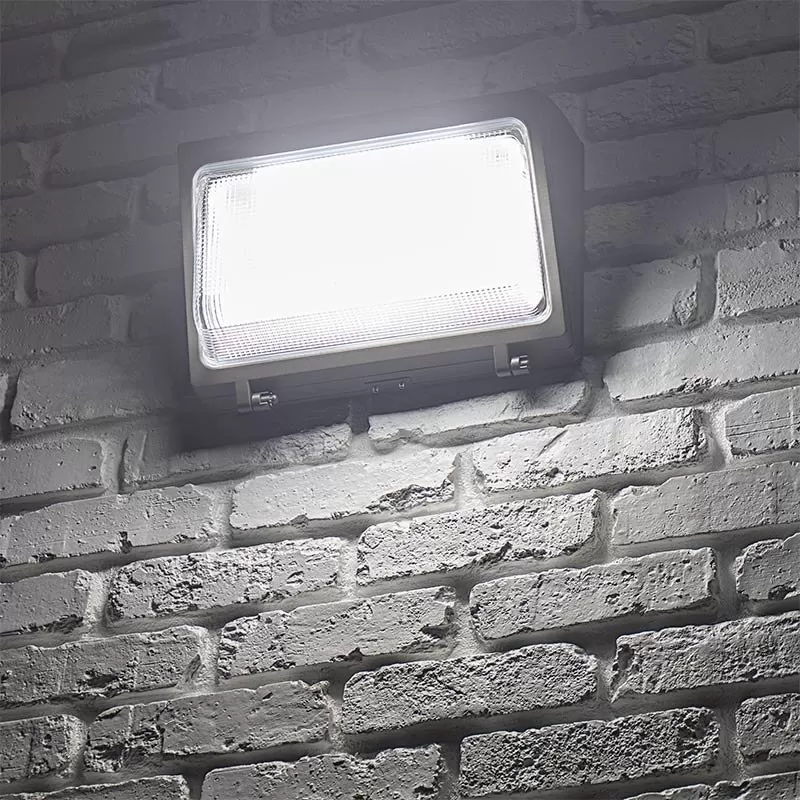

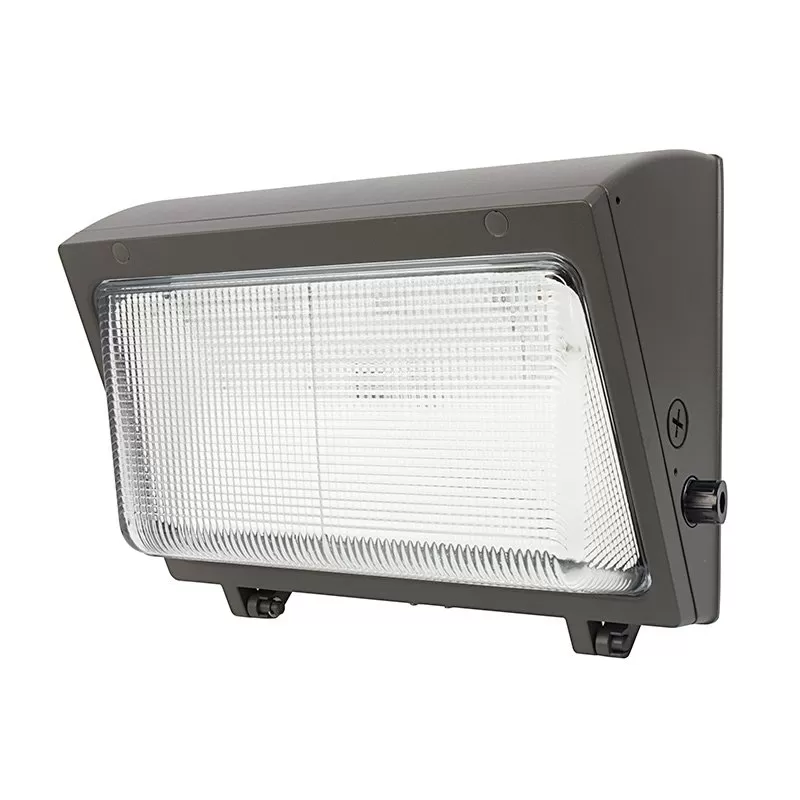

WPGL series LED Wall Pack has a traditional, open face design ideal for outdoor environments such as parking lots, warehouses, building exteriors, and more. Integrated photocell automates dusk to dawn operation for greater convenience. The architectural fixture maintains a classic form factor to cover existing luminaire footprints, but is less bulky and lighter weight. Durable construction includes non-yellowing borosilicate glass lens and powder coated aluminum housing.
5 wattage options also available with out photocell: 40W, 60W, 80W, 100W, 120W

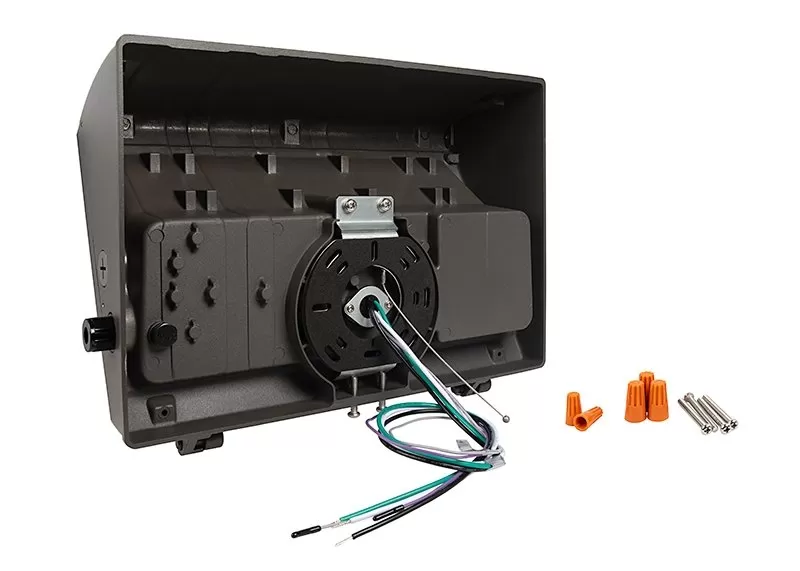

- Mounting bracket allows easy electrical connections, then quick hanging and securing fixture
- Borosilicate glass refractor lens

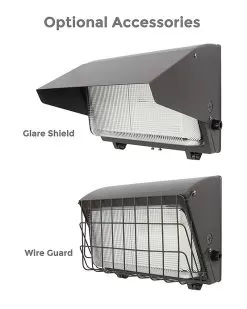

- Optional glare shield for reduced glare
- Optional wire guard for added protection
- 0-10V dimmable
- CRI 80+
- 5000K
- Operational Temperature: -40°–113° F(-40°–45° C)
- Integrated surge protection: 4kV
- DLC 5.1 Premium, Certified by UL
]
| Ambient Operating Temperature | -40~+45 °C (-40~+113 °F) |
|---|---|
| IP Rating | IP65 |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 7lb 6oz (3.35kg) |
| Product Materials | Aluminum Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 80 Watts |
| Photocell | Integrated Photocell (bypassable internally) |
| Operating Voltage | 120-277 VAC |
| Intensity | 10400 Lumens |
| Lens Type | Glass |
| LED Color | Cool White |
| Integrated Surge Protection | 4 kV |
| Beam Angle | 90° x 100° |
| Finish | Bronze |
| Equivalency | 400 Watt Metal-Halide |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 130 lm/W |
| Dimming Type | 1-10V |
| Dimmable | Yes |
| Current Draw | 290 mA @ 277 VAC, 500 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL, DLC Premium |
| CCT Value | 5000K |
| BUG Rating | B1-U4-G5 |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
Be the first to review “80W LED Wall Pack – Integrated Photocell – Easy Installation – 10400 Lumens – Glass Lens – 400W MH Equivalent – 5000K – Cool White”
