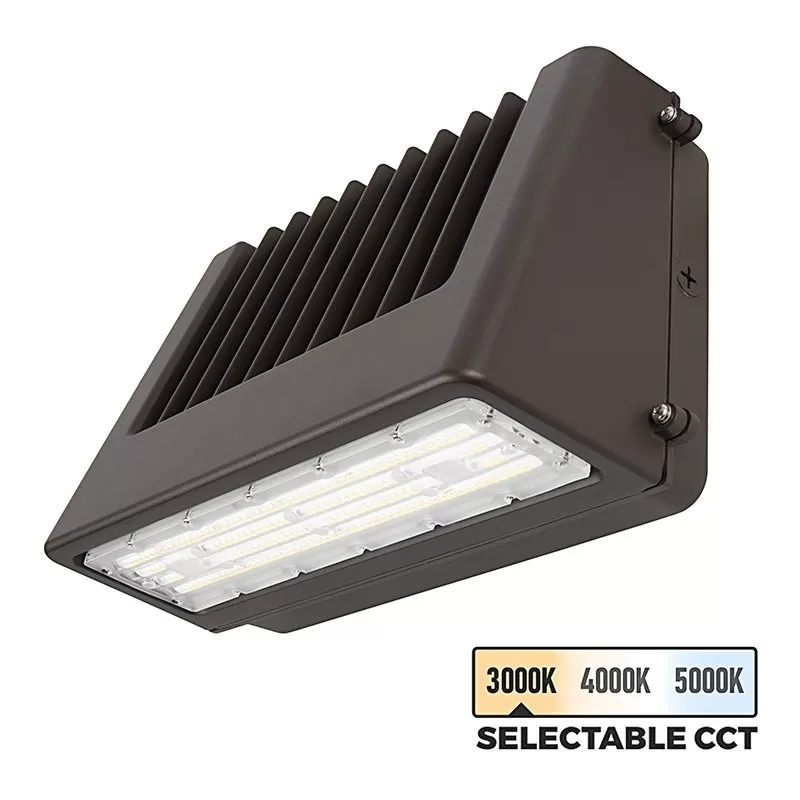

WPFCCT series LED Wall Pack is an architectural luminaire with full cutoff design and field-selectable CCT. The internal slide switch allows users to select color temperature during installation, to match client preferences or existing lighting. Choose 5000K, 4000K, or nighttime friendly 3000K. The full cutoff form factor maximizes light distribution and application spacing, while eliminating uplight. Photocell is integrated for dusk to dawn operation (can be bypassed). Maintains a similar footprint to traditional MH or HID wall packs for easy replacement. Construction is durable yet lightweight, with a trapezoid-shaped powder coated housing and sealed polycarbonate lens.
- Photocell turns light on at 30 lx and off when light goes back above 130 lx
- 110° x 95° beam pattern (Type III distribution)
- Architectural bronze powder coated aluminum body, polycarbonate lens
- Integrated heat sinks for proper thermal management

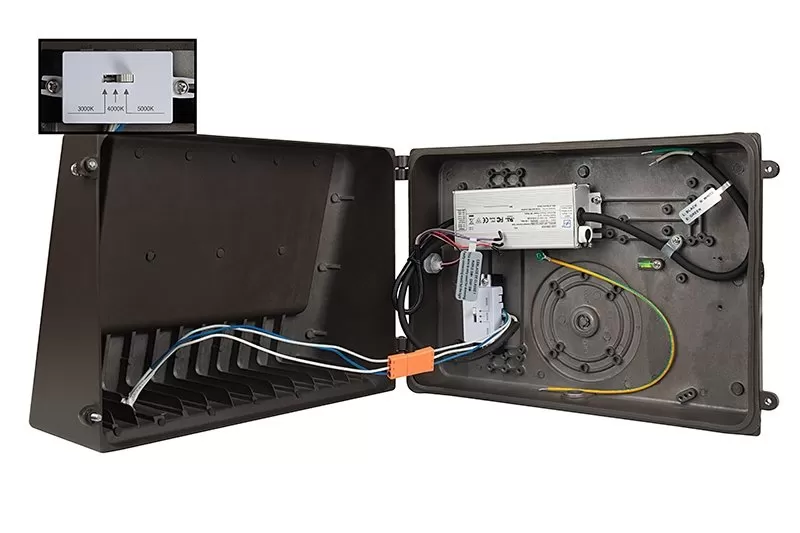

- CCT slide switch located inside fixture
- Mounting access with hinged enclosure

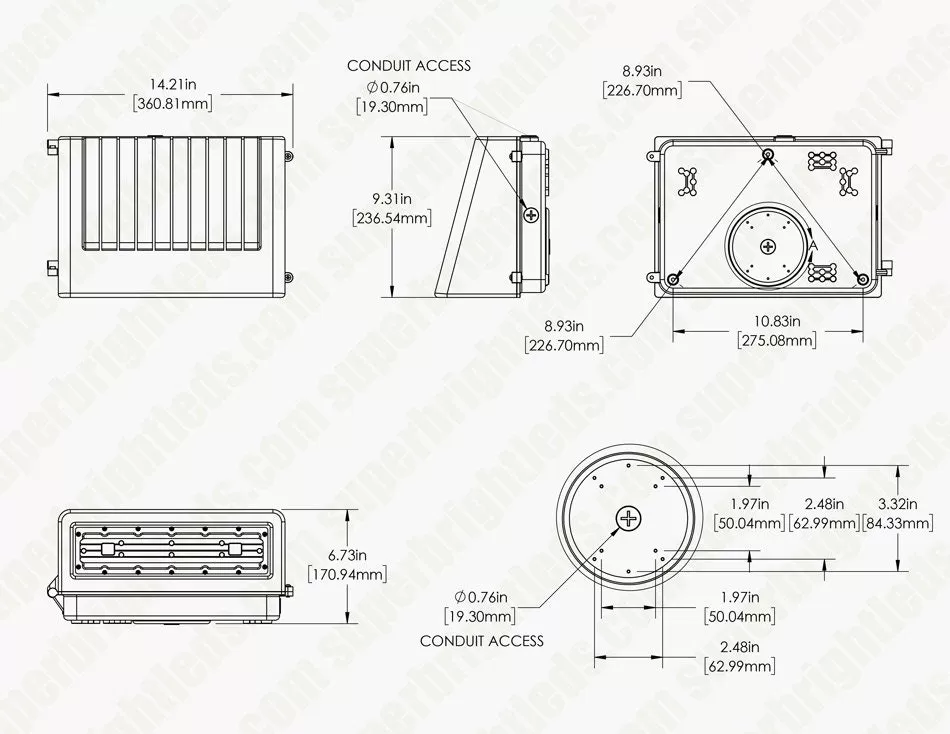

- Conduit entry points allow direct wall or junction box mounting
- 0-10V dimmable
- Integrated surge protection: 4kV
- 50000 hours (L70) lifespan
- Certified by UL, DLC 5.1 Premium
| Ambient Operating Temperature | -40~+50 °C (-40~+122 °F) |
|---|---|
| LED Color | Selectable CCT |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 6lb 7oz (2.92kg) |
| Product Materials | Aluminum Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 40 Watts |

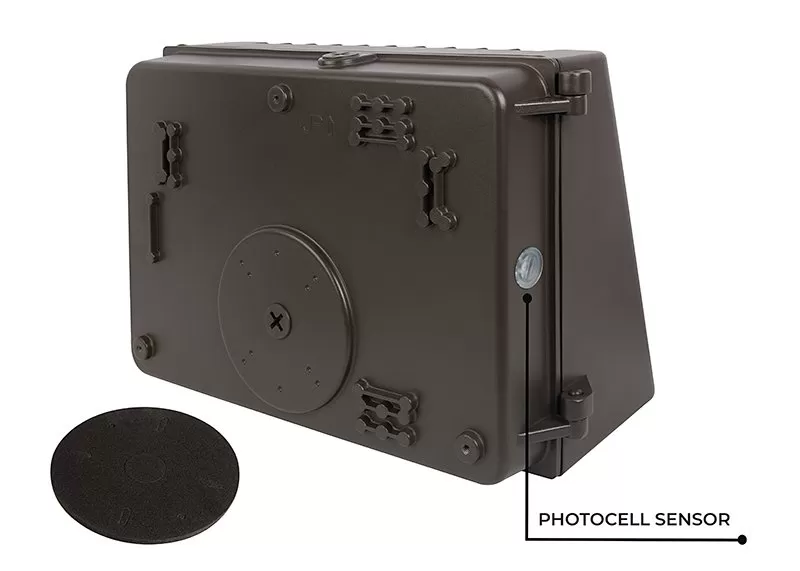

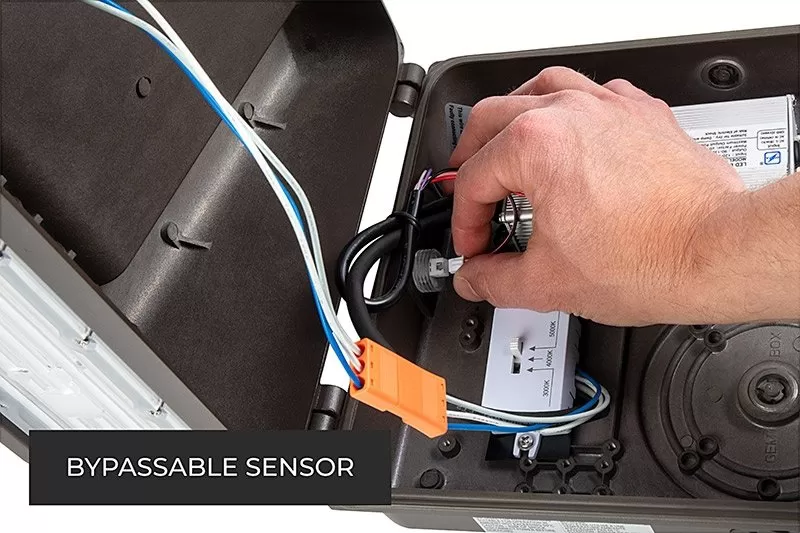

| Photocell | Integrated Photocell (bypassable internally) |
| Operating Voltage | 120-277 VAC |
| Intensity | 4800 Lumens |
| Lens Type | Polycarbonate |
| IP Rating | IP65 |
| Beam Angle | 110° x 95° |
| Integrated Surge Protection | 4 kV |
| Finish | Bronze |
| Equivalency | 175 Watt Metal-Halide |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 120 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 140 mA @ 277 VAC, 330 mA @ 120 VAC |
| Certifications/Compliance | Certified by UL, DLC Premium |
| BUG Rating | B2-U0-G1 |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
