4″ LED Commercial Recessed Downlight – Selectable CCT – Selectable Wattage – Dimmable – 600-1200 Lumens – CDL4D-SW3B-SP12W

CDL series Recessed Downlight is a lighting solution for both commercial and residential spaces, offering flexibility to customize light color and output. The fixture features two slide switches, one that selects CCT, and another that selects lumen output. Warmer light creates a cozy, relaxed, or decorative atmosphere ideal for entertainment spaces. Cooler light can maintain a more energetic, alert environment ideal for locations such as offices or schools. Spring installation can be installed directly in the ceiling with out a housing, or in existing commercial downlight frames. Easy installation accommodates new construction, remodel, and retrofit projects. Deep recessed light source has a frosted lens to create smooth, glare-free illumination. White aluminum trim provides a clean finish to compliment a range of interior spaces.

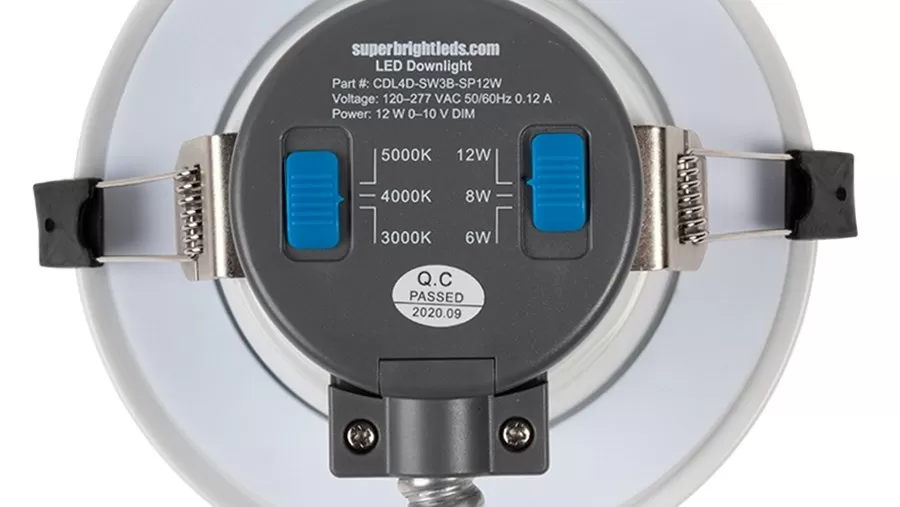

• Selectable switches located on the back of the fixture

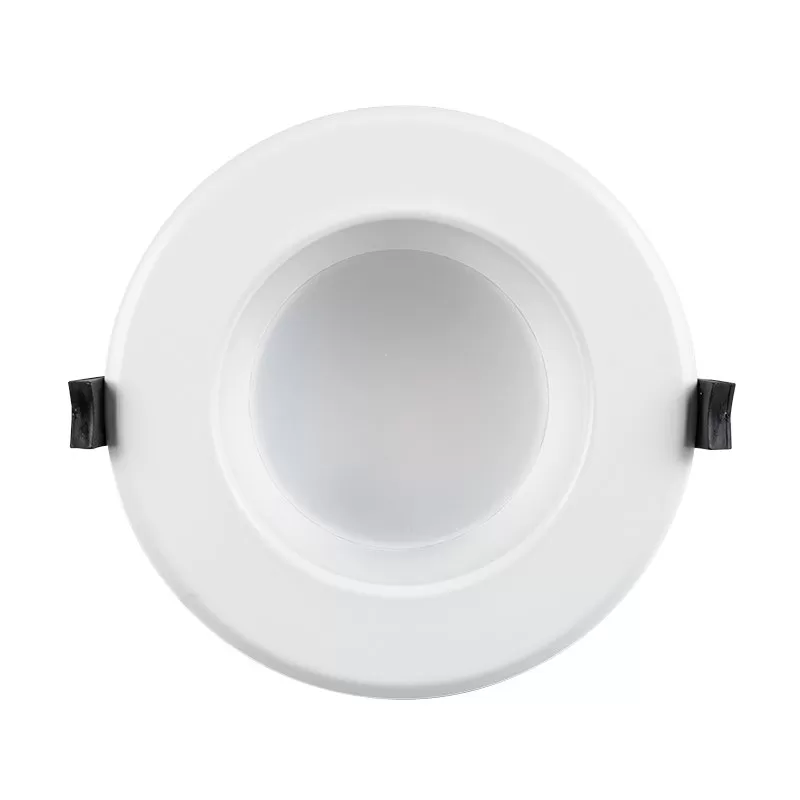

• Frosted polycarbonate lens
• Aluminum housing
• White (RAL 9016) finish trim compliments residential and commercial interiors
• 100 lm/W
• 80+ CRI
• 80° beam angle
• Operating temperature: -4° – 113° F (-20° – 45° C)
• 0–10 V dimmable

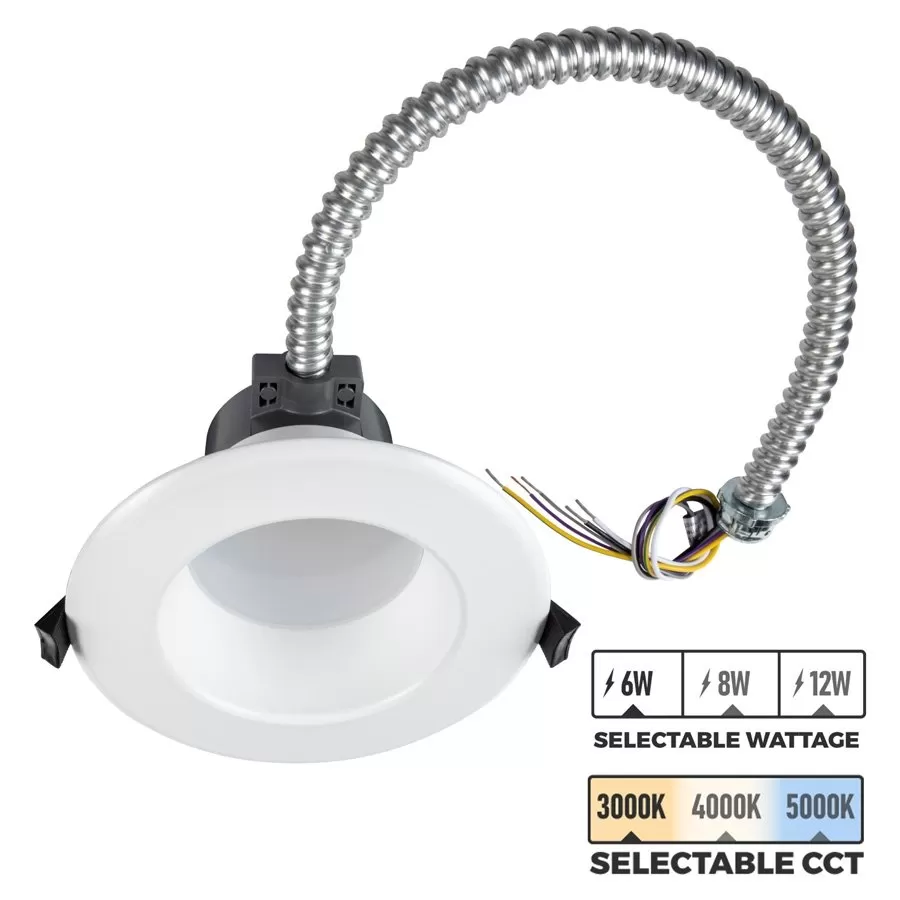

• 15.75″ power cable with flexible aluminum conduit and ½” knockout snap-in connector
• 50,000-hour (L70) LED lifetime
• ETL Listed in compliance with UL 1598 (IFAM)
• IP54 rated
• 5-year
