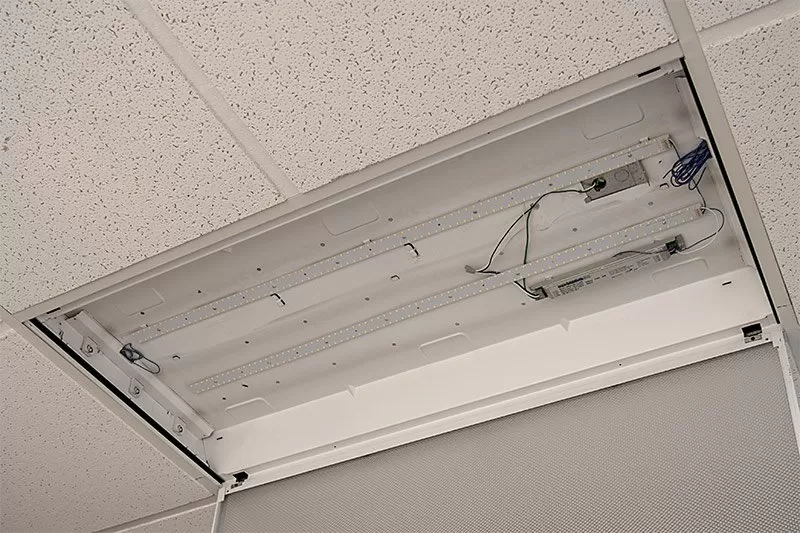

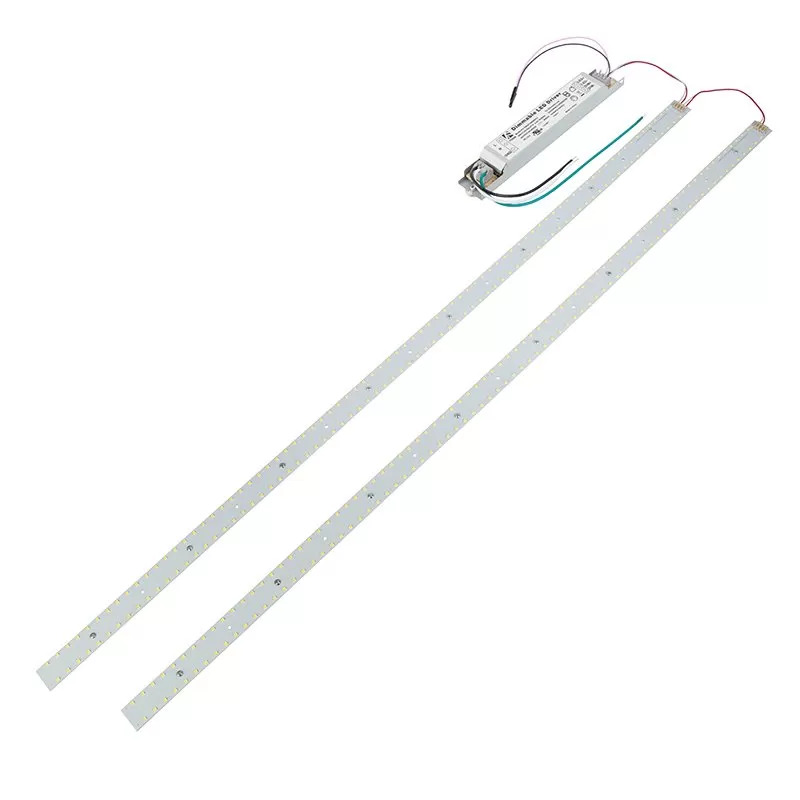

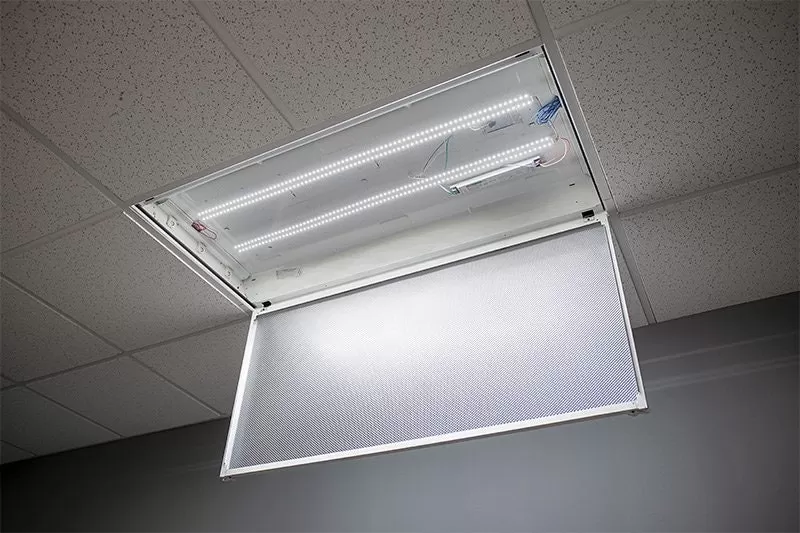

This dimmable 30W LED magnetic strip retrofit kit replaces the ballast and tubes in 2′ x 4′ fluorescent troffers. Bright and powerful, the strips emit up to 3900 lumens in warm, cool, or natural white, equivalent to the output of two 32-watt fluorescent T8 tubes. Evenly-spaced magnets allow for easy and secure mounting. The constant-current driver allows brightness control with a 0-10V dimmer. Remove the existing ballast and direct wire the driver to your electrical system with the 18 AWG pigtail (driver input). This LED magnetic retrofit kit is perfect for homes, offices, schools, hospitals, and more!
Product Details:
- Aluminum housing
- 125-degree beam angle
- IP20, suitable for damp locations
- 0-10V dimmable

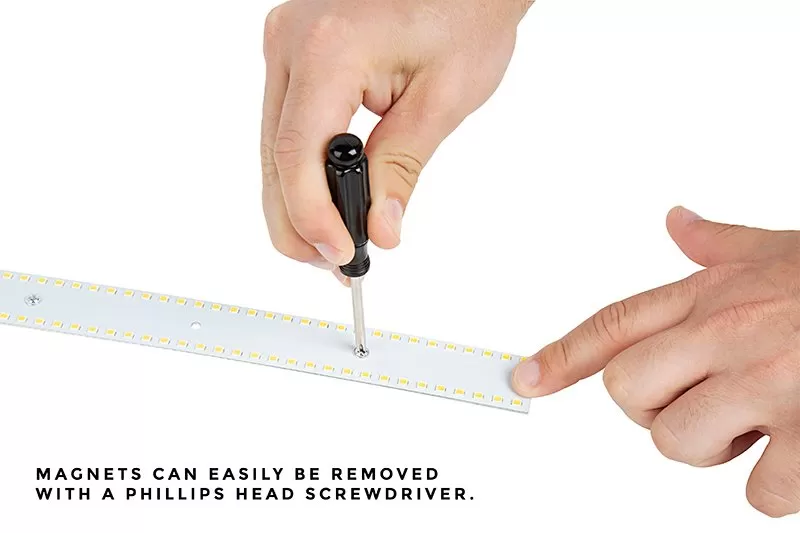

- Magnetic surface mount
- 120-277 VAC
- ETL Classified or Certified by UL
- DLC 5.1 Standard (excluding 3000K)
- 5-year warranty

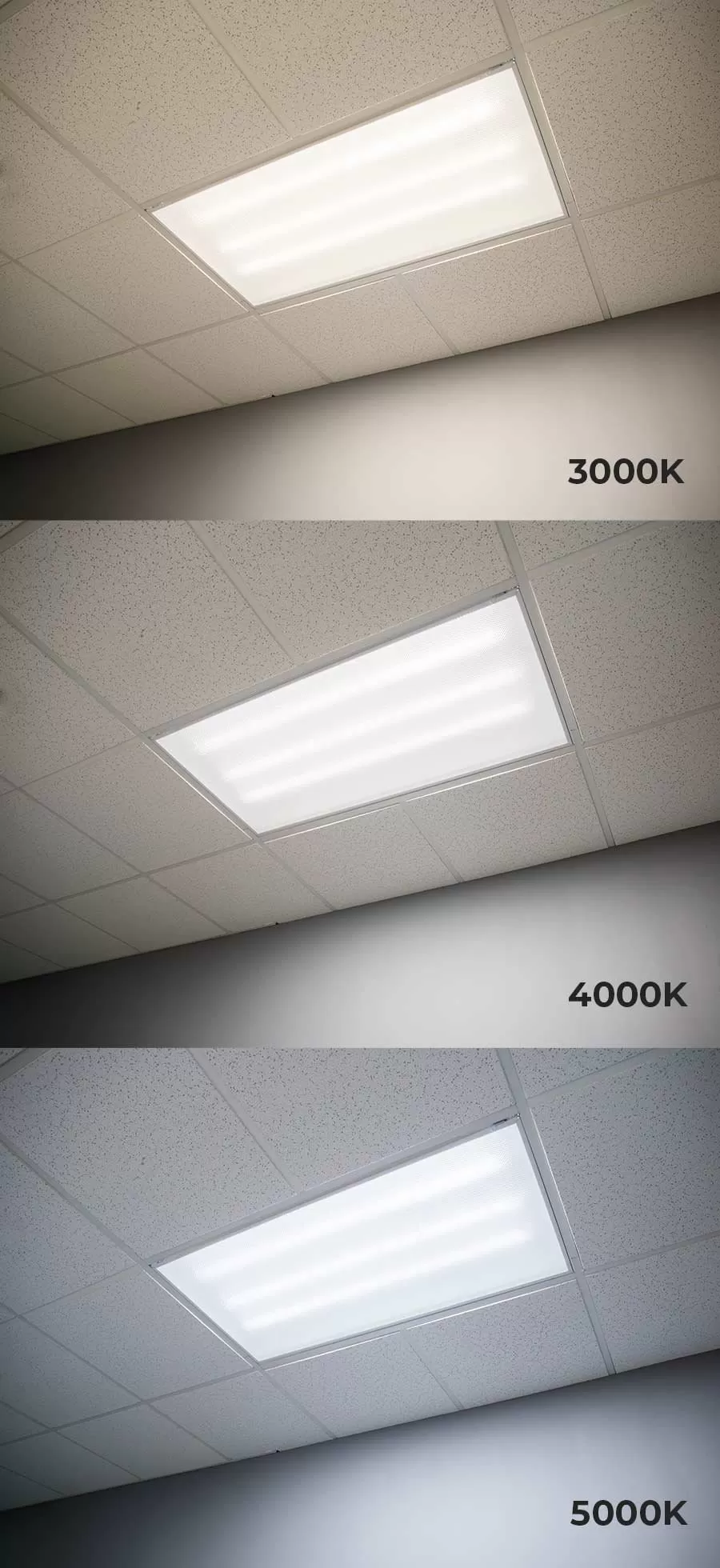

| Color Options | Cool 5000K, Natural 4000K, Warm 3000K |
|---|---|
| Integrated Surge Protection | 1 kV (L-N), 2 kV (L/N-G) |
| Warranty | 5 Year |
| UL File Number | E348221, E366643 |
| Shipping Exclusions and Details | Excluded From Free Shipping |
| Rated Life (L70) | 50000 Hours |
| Product Materials | Aluminum, Neodymium Magnet |
| Power Consumption | 30 Watts |
| Operating Voltage | 120-277 VAC |
| Linkable | No |
| Length | 48in (4ft) |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
| Finish | White |
| Equivalency | 2-lamp 32W T8 Tubes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Dimensions | 4ft |
| Current Draw | 110 mA @ 277 VAC, 250 mA @ 120 VAC |
| CRI | 80+ |
| Brand | Super Bright LEDs |
| Beam Angle | 125° |
| Wire Gauge | 18 AWG (L/N/G), 20 AWG (driver to LED) |
