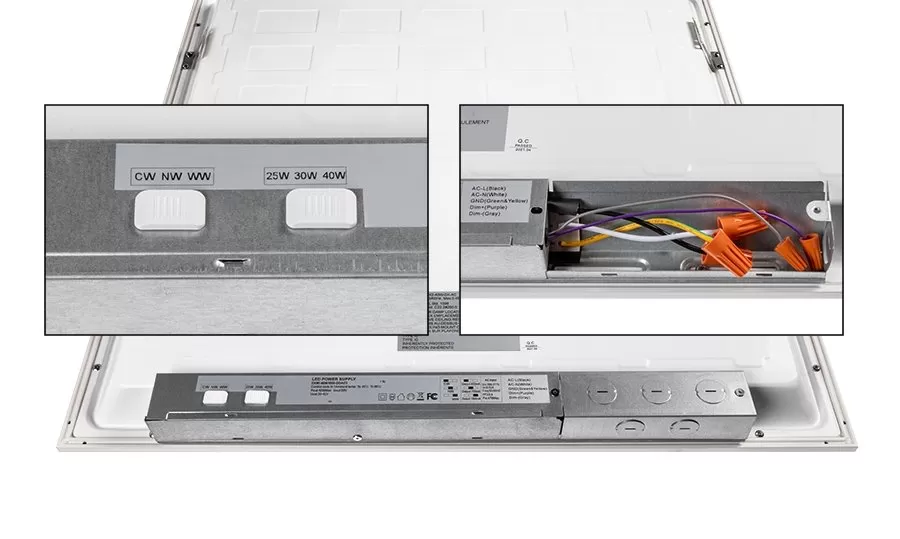

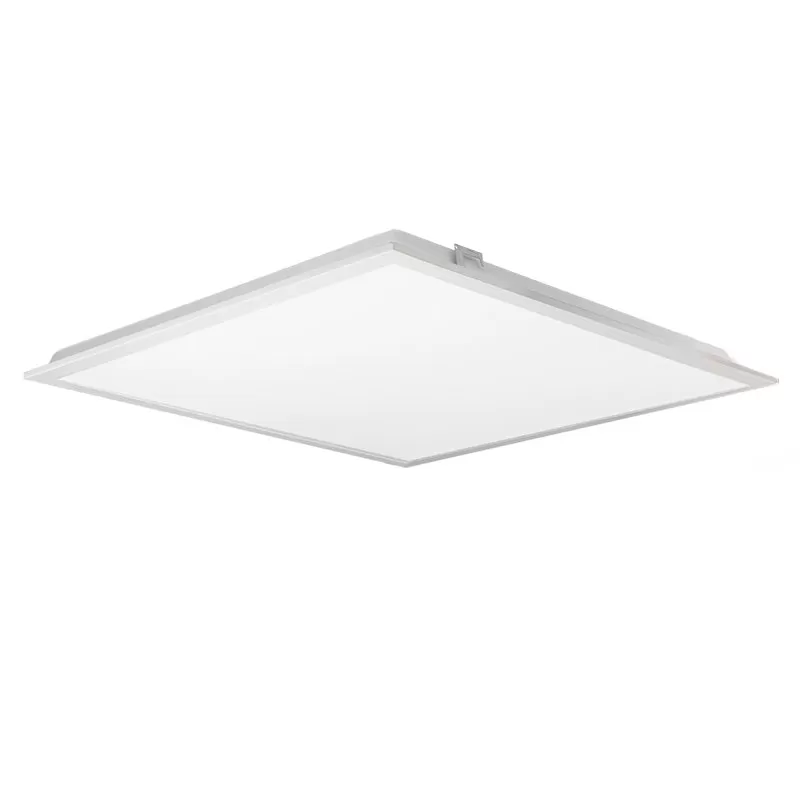

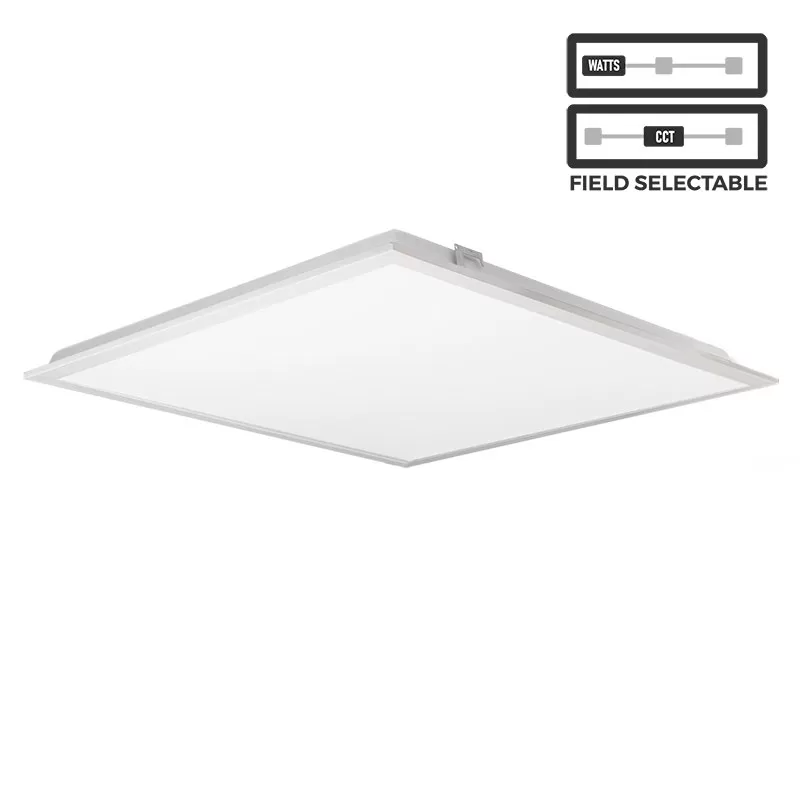

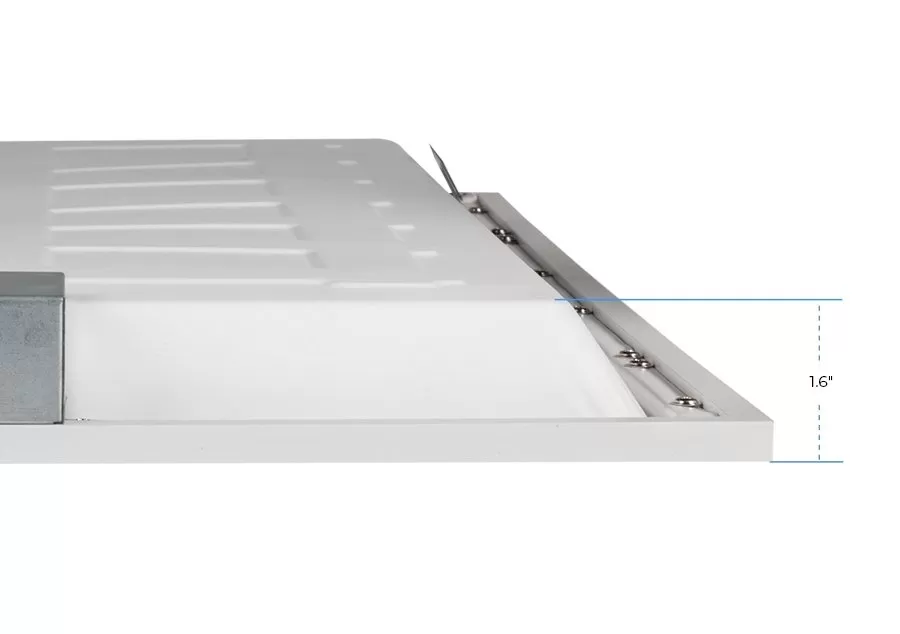

The 2×2 LED Backlit Panel features 3 wattage and 3 color temperature options for customization and versatility during install. Contractors can save on shelf space, reduce inventory costs, and offer a wider selection to customers. The panel is also has a low profile and lightweight design as compared to traditional fluorescent troffers. Use the backlit panel to replace a 3-lamp fluorescent fixture with 17W T8 tubes. The flicker-free, energy-efficient LEDs are evenly diffused through a glare-free frosted lens.

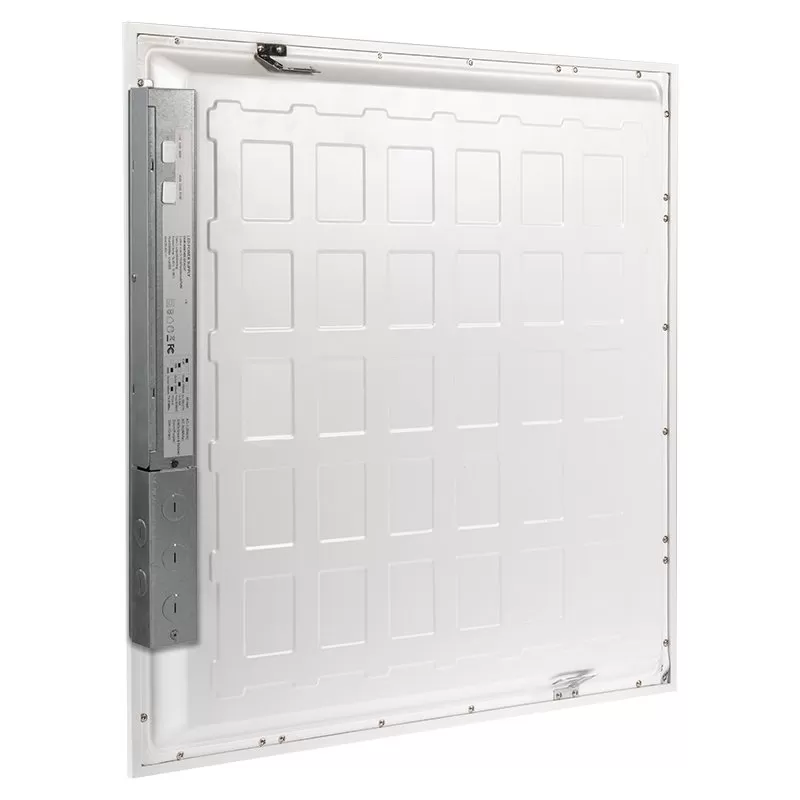

- Steel housing and driver enclosure with aluminum outer frame
- Frosted polystyrene lens
- 0-10V dimmable – dimming control sold separately
- Optional surface mount kit and hanging mount kit available
- 120–277 VAC input
- ETL Listed
- DLC 5.1 Premium
- 5-year warranty
| Beam Angle | 120° |
|---|---|
| IP Rating | IP40 |
| Voltage | 120-277 VAC |
| Standards And Certifications | DLC Premium, ETL Listed |
| Product Weight | 4lb 6.4oz (2kg) |

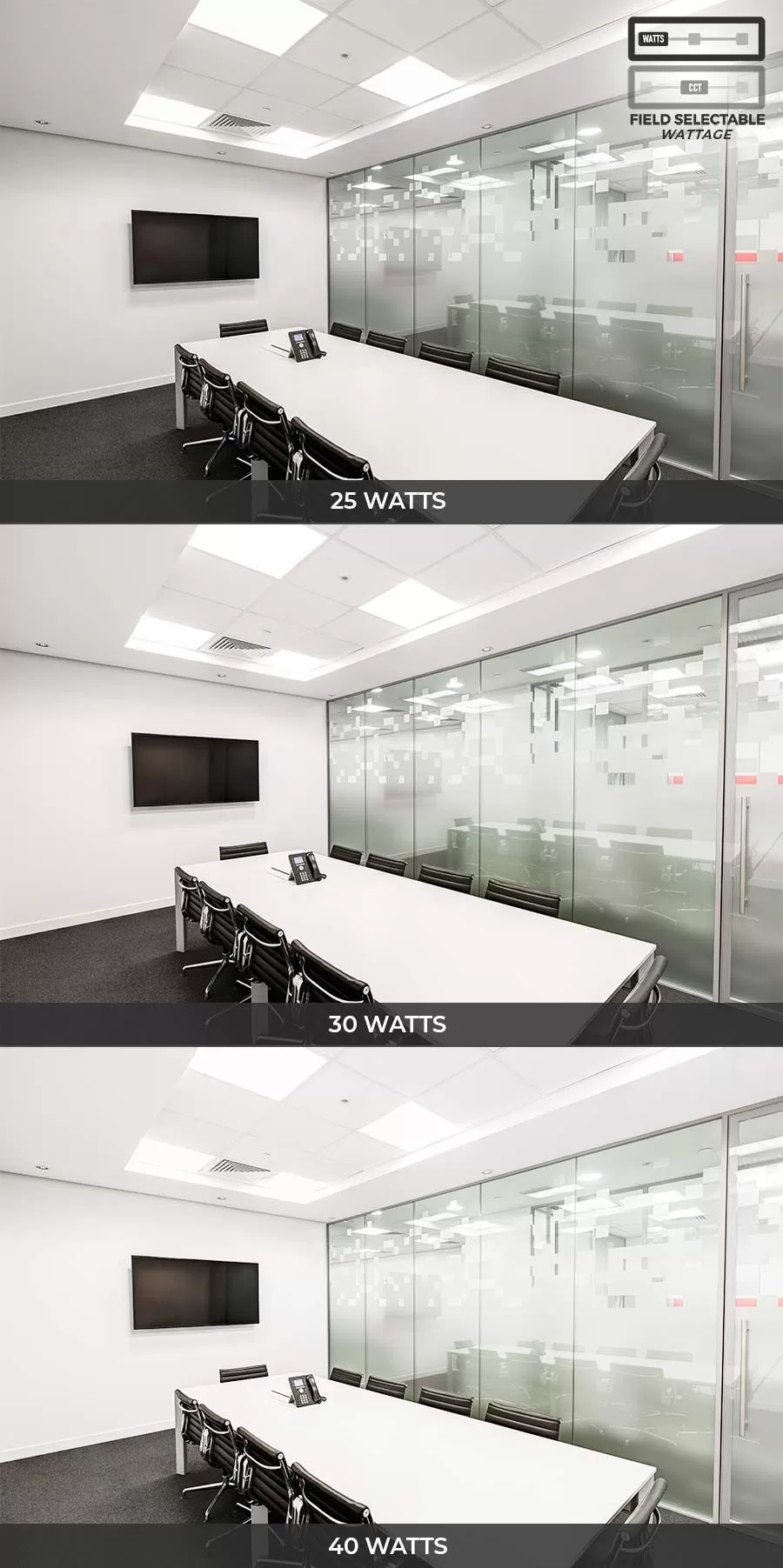

| Power Consumption | 25 Watts, 30 Watts, 40 Watts |
| Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Material | Aluminum Frame, Polystyrene Lens, Steel Housing |
| Lumen | 3125 Lumens, 3750 Lumens, 5000 Lumens |
| LED Lifetime | 50000 Hours |

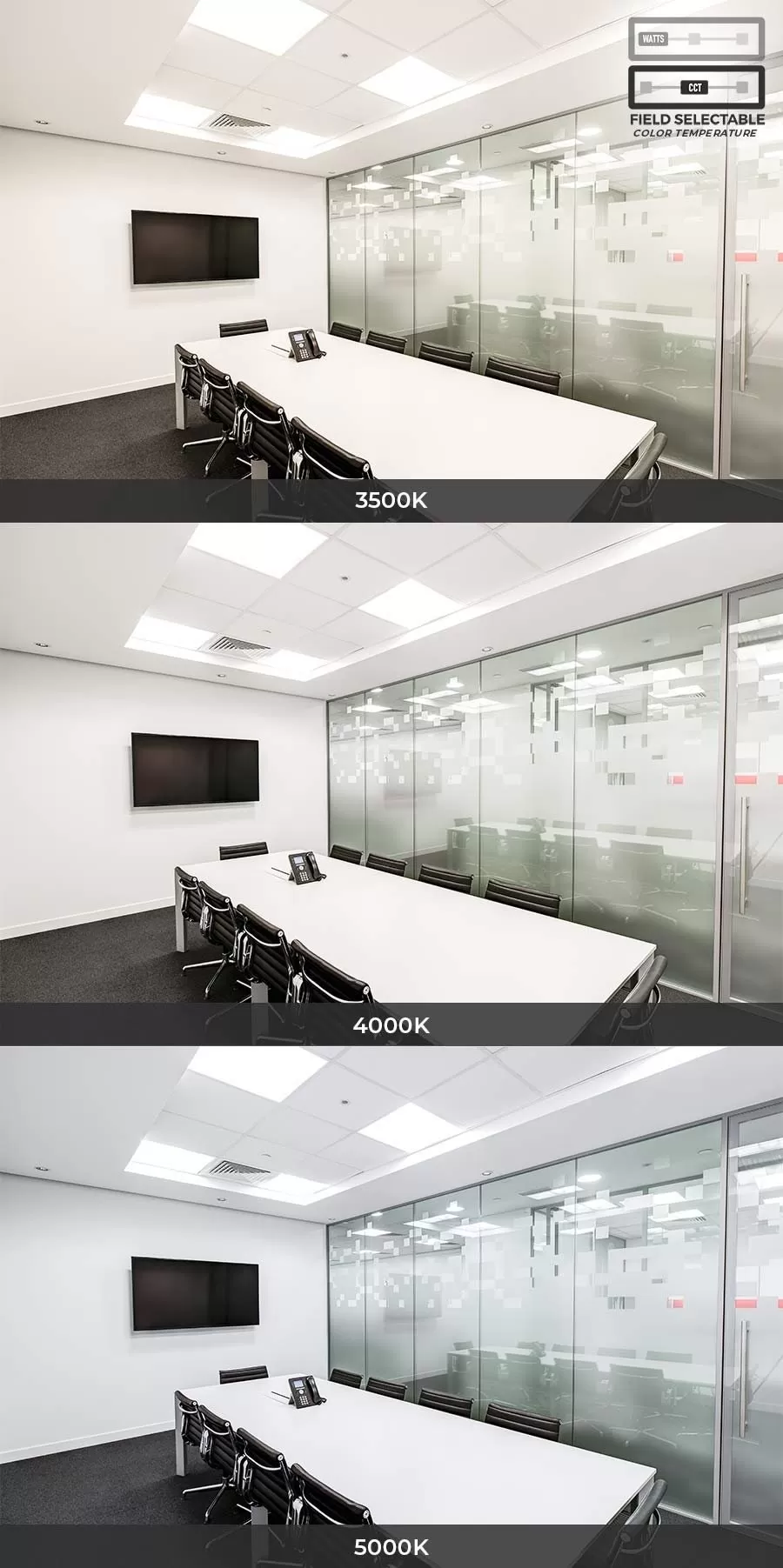

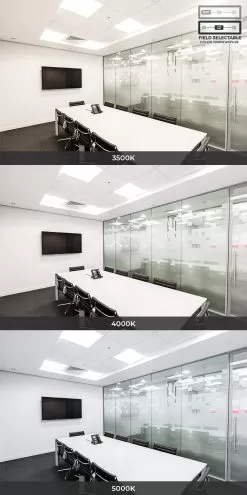

| LED Color | Selectable CCT |
| Input Connection Type | Pigtail |
| Brand | Super Bright LEDs |
| Finish | White |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 125 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |

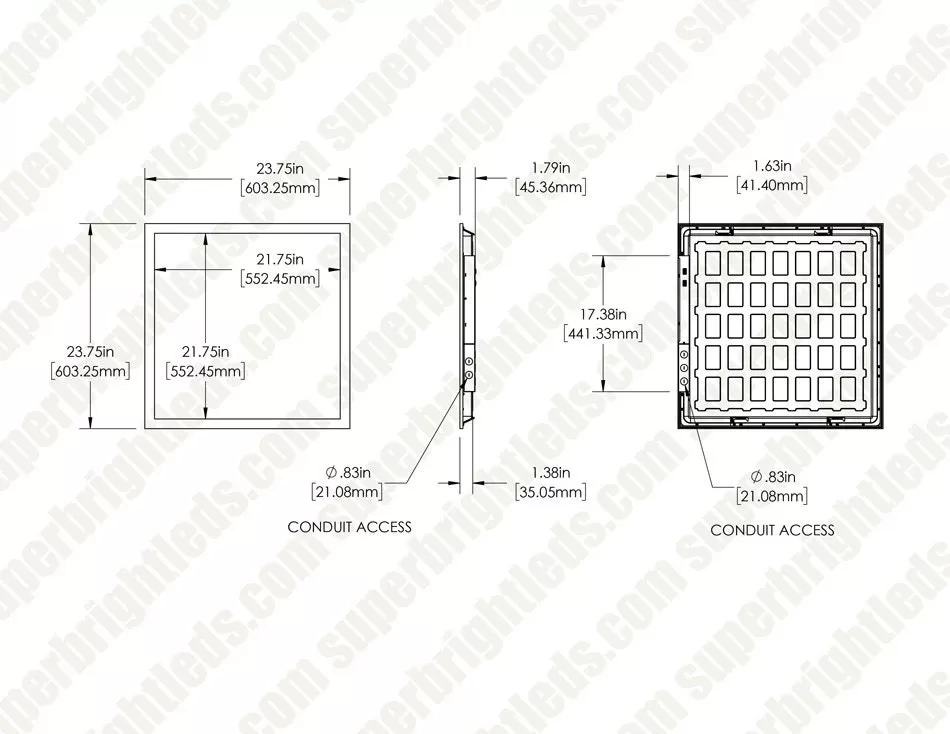

| Dimensions | 2ft x 2ft |
| Current Draw | 208/250/333 mA @ 120 VAC, 90/108/144 mA @ 277 VAC |
| CRI | 80+ |
| Comparable Wattage | 3-lamp 17W T8 Tubes |
| Warranty | 5 Year |
