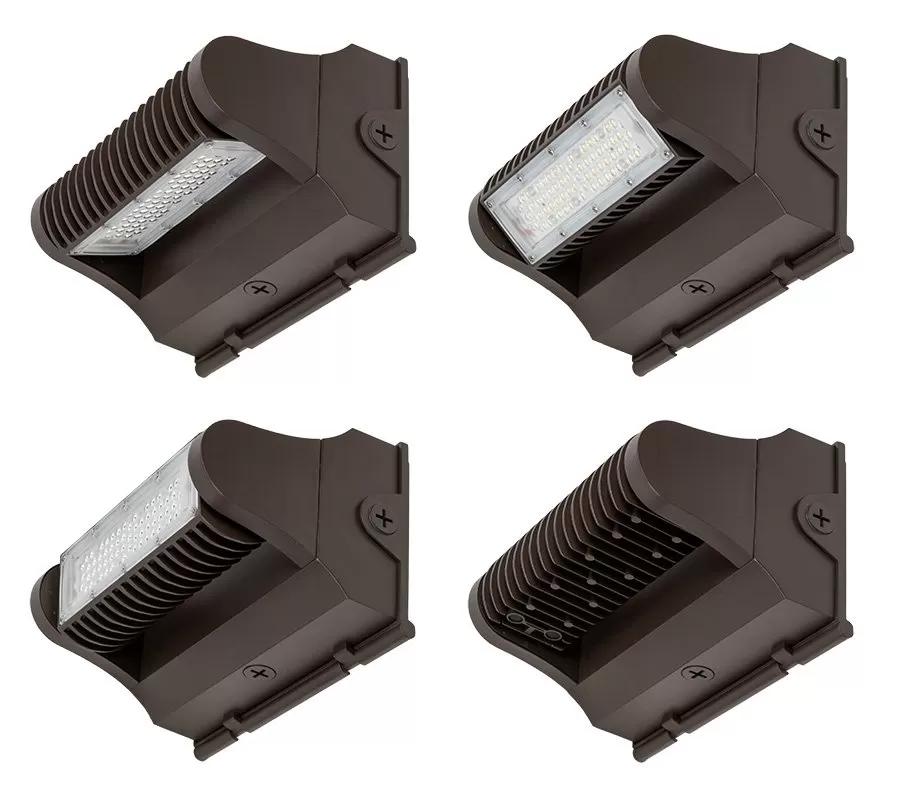

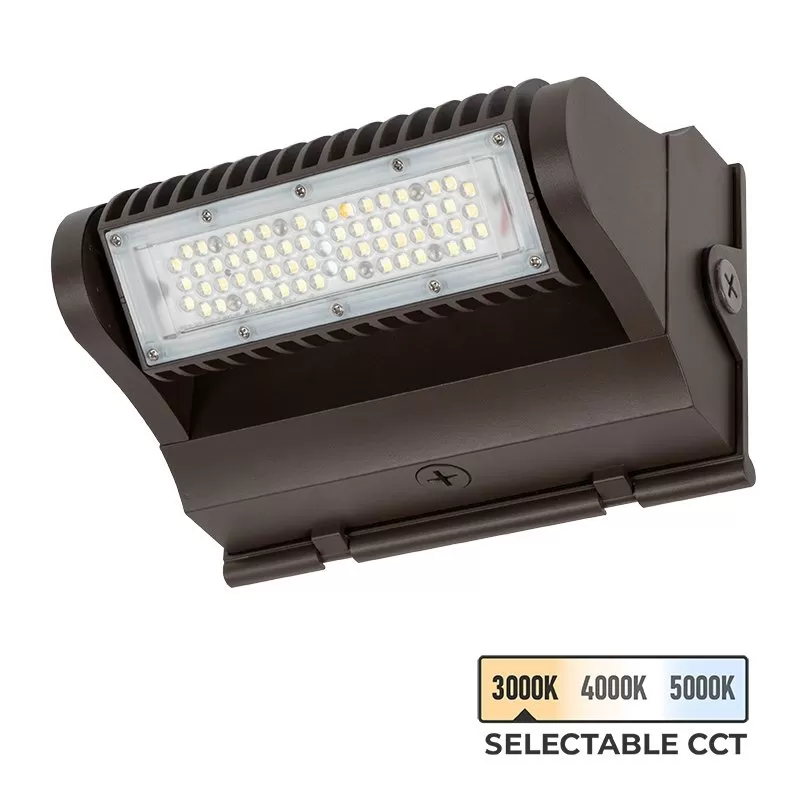

WPRCCT series is an architectural Wall Pack featuring rotatable light head and selectable CCT. Each LED light head rotates a full 360° to illuminate areas at the desired angle. Field selectable CCT allows color temperature to be chosen during installation, tailoring to customer preferences or existing fixtures. Choose from 5000K, 4000K, or nighttime friendly 3000K. Photocell is integrated for automatic dusk to dawn operation (can be bypassed). Die-cast aluminum housing is powder coated and polycarbonate lens is sealed with a silicone gasket, to with stand outdoor conditions. Superior thermal management and high performance LEDs ensure a long lifespan and zero maintenance.
3 wattage options also available in single CCTs: 40W, 80W, and 120W

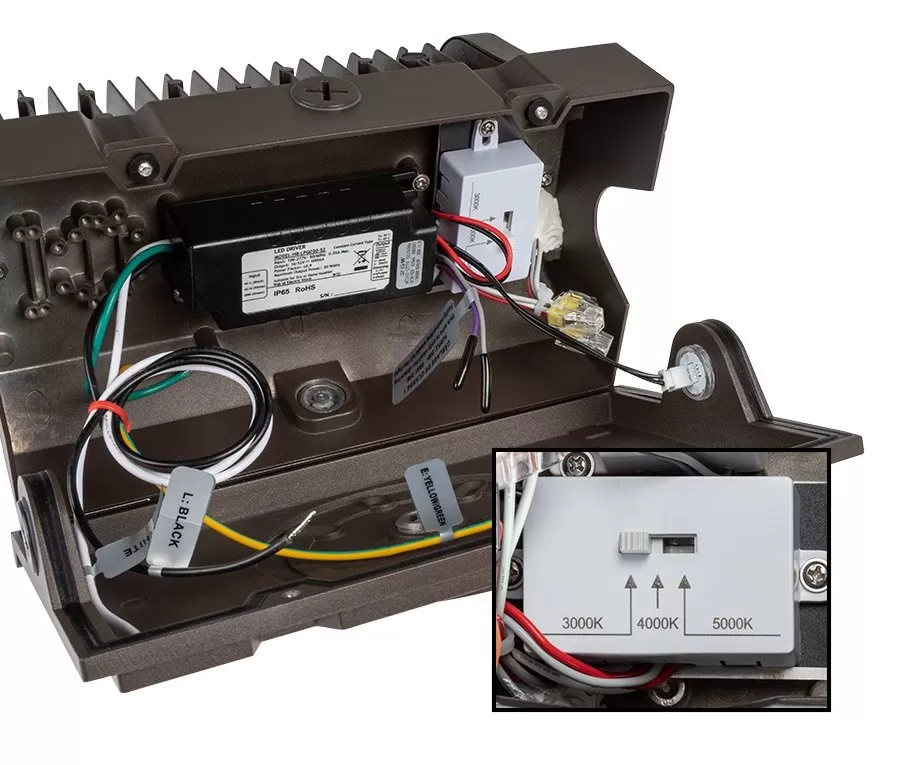

- Field selectable CCT is operated with an internal slide switch
- Integrated heat sinks for thermal management

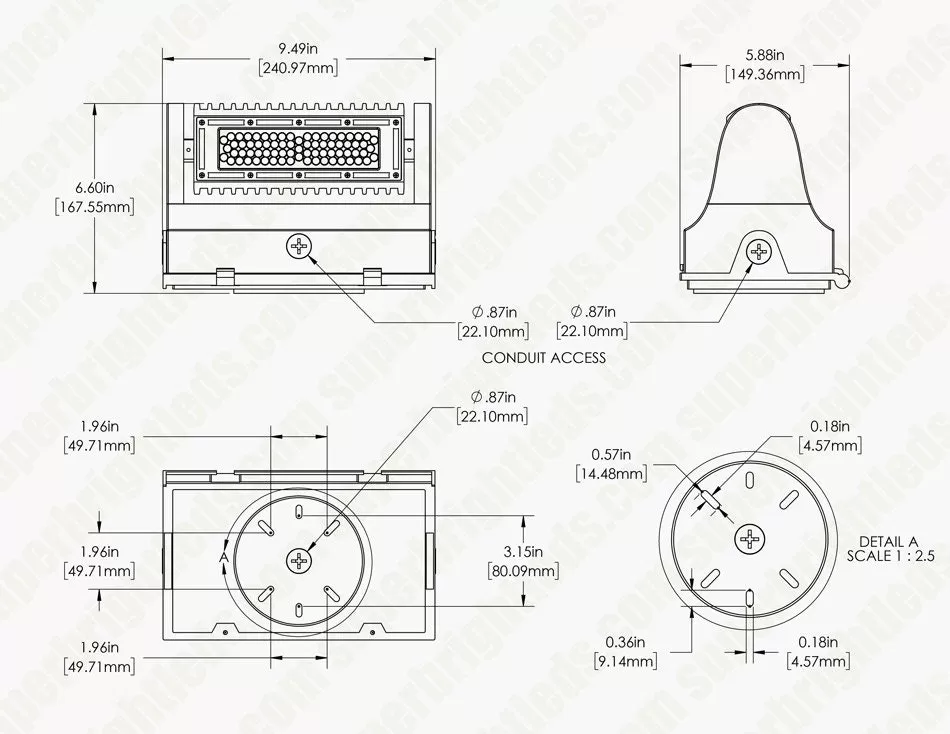

- Mounts on most standard existing junction boxes for easy replacement
- Corrosion-resistant die-cast aluminum body
- Polycarbonate lens sealed with silicone gasket
- Integrated driver with surge protection: 2kV
- 0-10V dimmable with optional dimmer
- 60° x 60° beam pattern (NEMA 4 x 4) included on each adjustable module
- Photocell operation: Light will turn on when the ambient light level falls below 30 lx and will turn off when the ambient light level exceeds 130 lx.
- Rated IP65
- 50000 hours (L70) lifespan
- DLC 5.1 Premium, Certified by UL
| Ambient Operating Temperature | -30~+45 °C (-22~+113 °F) |
|---|---|
| IP Rating | IP65 |
| UL File Number | E366643 |
| Rated Life (L70) | 50000 Hours |
| Product Weight | 4lb 4oz (1.93kg) |
| Product Materials | Aluminum Housing |
| Power Factor | ≥0.9 |
| Power Consumption | 25 Watts |

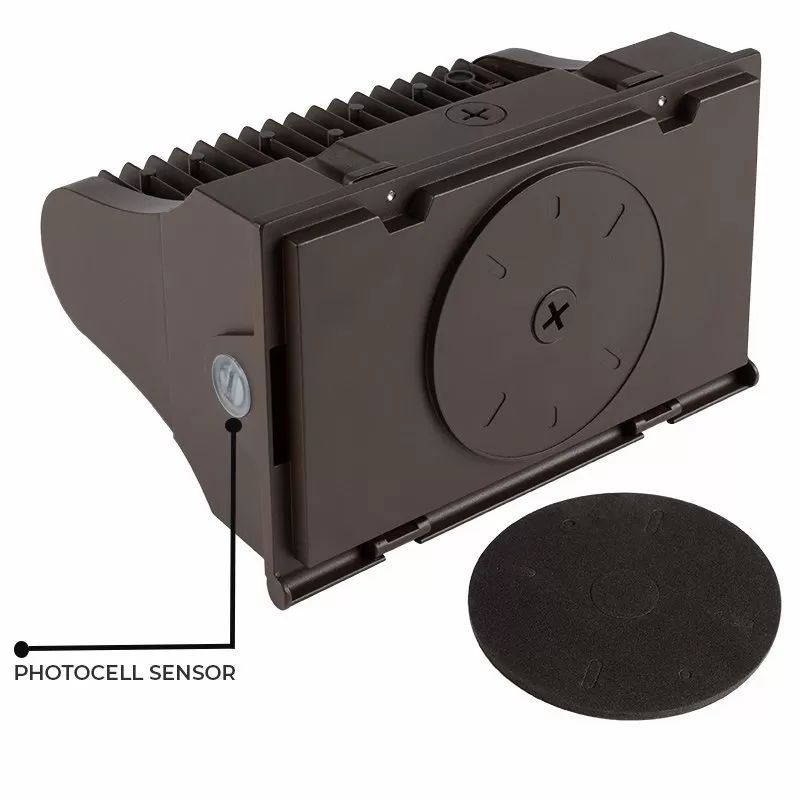

| Photocell | Integrated Photocell (bypassable internally) |
| Operating Voltage | 120-277 VAC |
| Intensity | 3375 Lumens |
| Lens Type | Polycarbonate |

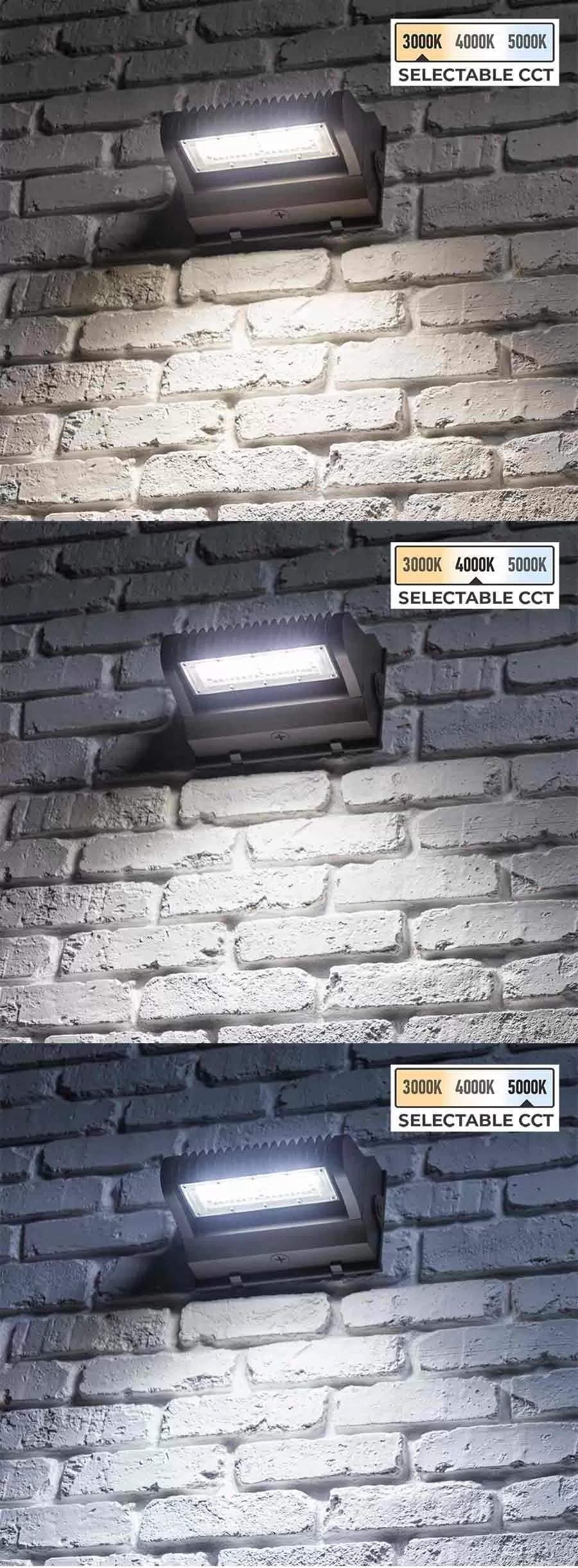

| LED Color | Selectable CCT |
| Integrated Surge Protection | 2.5 kV (L-N, L/N-GND) |
| Beam Angle | 60° x 60° |
| Finish | Bronze |
| Equivalency | 100 Watt Metal-Halide |
| Environmental Rating | Suitable for Wet Locations, Waterproof |
| Efficacy | 145 lm/W |
| Distribution Type | NEMA 4×4 |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 210 mA @ 120 VAC, 90 mA @ 277 VAC |
| CRI | 70+ |
| Certifications/Compliance | Certified by UL, DLC Premium |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
