$93.09
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease

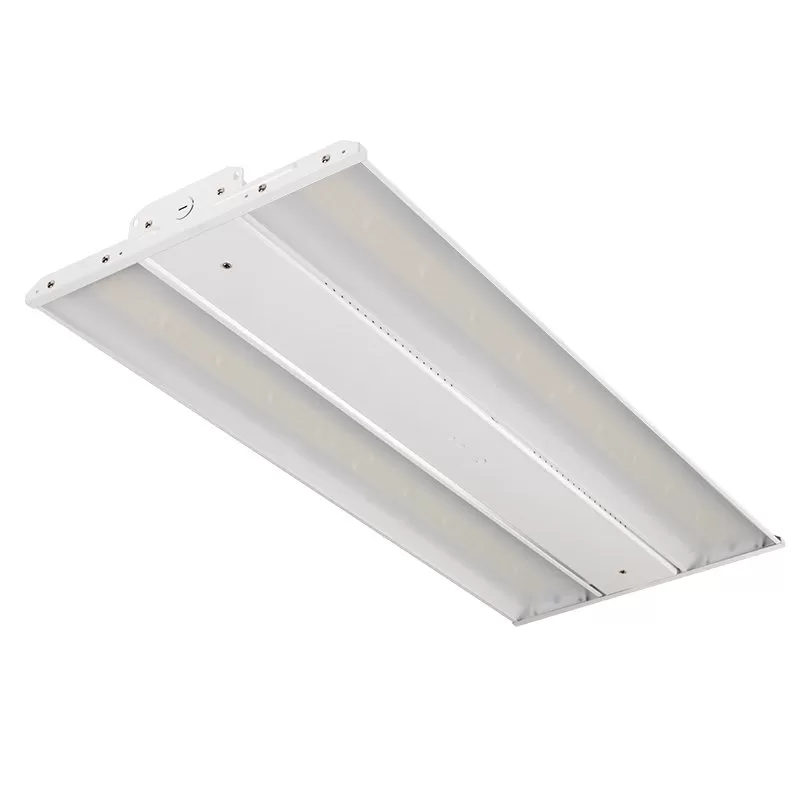

LHBDS1 series Linear High Bay replaces fluorescent fixtures with a less bulky frame and better energy efficiency. The economical LED solution achieves higher efficacy with a housing that is more compact and lighter weight than traditional high bays. Frosted lens creates a wide beam distribution with optimal lumen output for industrial and commercial high ceiling application.
5 options also available in 2ft: 90W, 110W, 135W, 165W, 220W
See our brightest Linear High Bay option available in 500W.
- Lightweight white metal housing

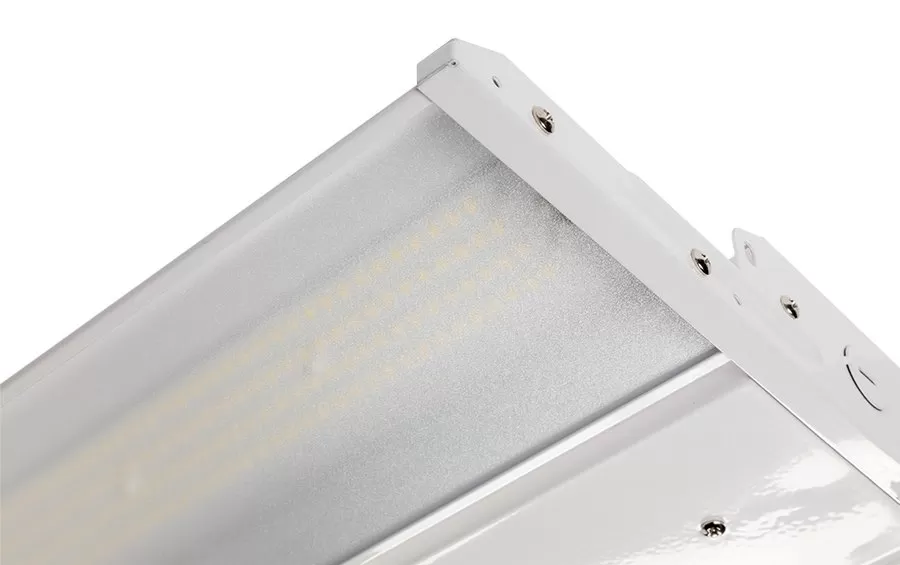

- Prismatic PMMA lens for wide light distribution

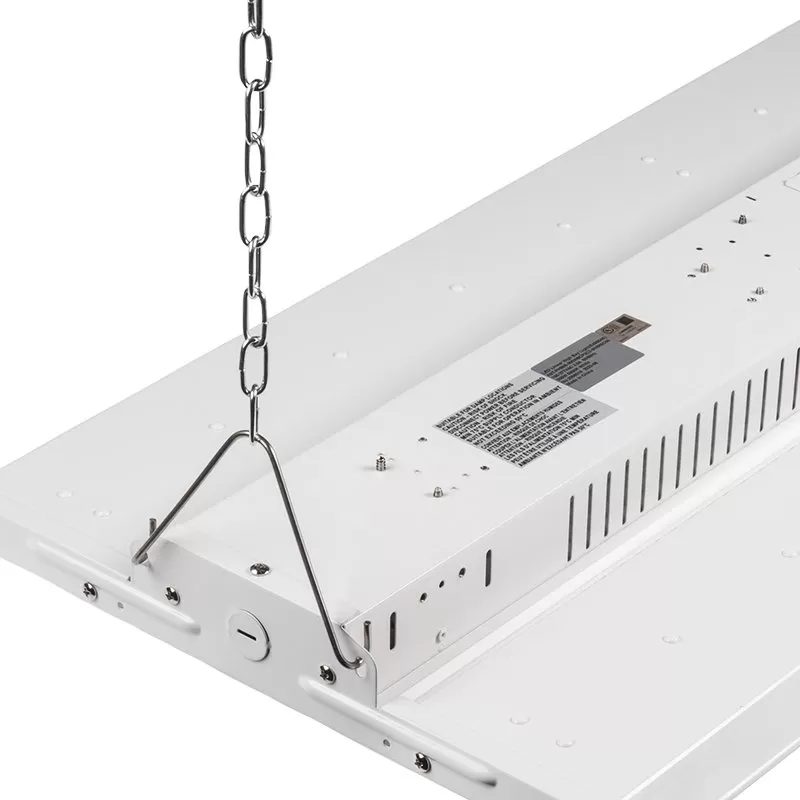

- Includes hanging kit for suspension mount
- Optional white bracket for pendant or surface mount

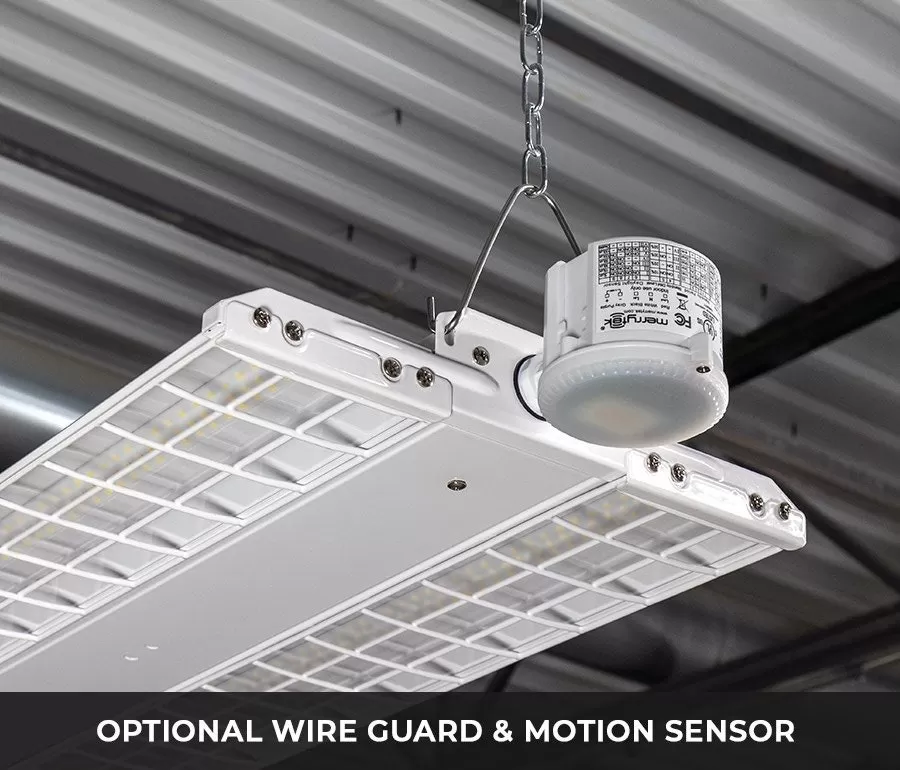

- Optional wire guard for additional protection from impact
- 1-10V dimmable
- Operational temperature: -40° — 122° F (-40° — 50° C)
- 100° beam pattern
- 5000K
- Pigtail wire connection
- Suitable for damp locations
- Rated IP20
- Certified by UL
- 50000 hours (L70) lifespan
| Beam Angle | 100° |
|---|---|
| Length | 36in (3ft) |
| Voltage | 120-277 VAC |
| UL File Number | E366643 |
| Standards And Certifications | Certified by UL |
| Power Factor | ≥0.9 |
| Power Consumption | 220 Watts |
| Operating Temperature | -40~+50 °C (-40~+122 °F) |
| Microwave Motion Sensor | Optional |
| Material | PMMA Lens, Steel Body |
| Lumen | 31900 Lumens |
| Lens Type | Frosted |
| LED Lifetime | 50000 Hours |
| Brand | Super Bright LEDs |
| LED Color | Cool 5000K |
| IP Rating | IP20 |
| Finish | White |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 140 lm/W |
| Dimming Type | 1-10V |
| Dimmable | Yes |
| Current Draw | 1.8 A @ 120 VAC, 790 mA @ 277 VAC |
| CRI | 80+ |
| Comparable Wattage | 400 Watt Metal-Halide |
| CCT Value | 5000K |
| Warranty | 5 Year |
