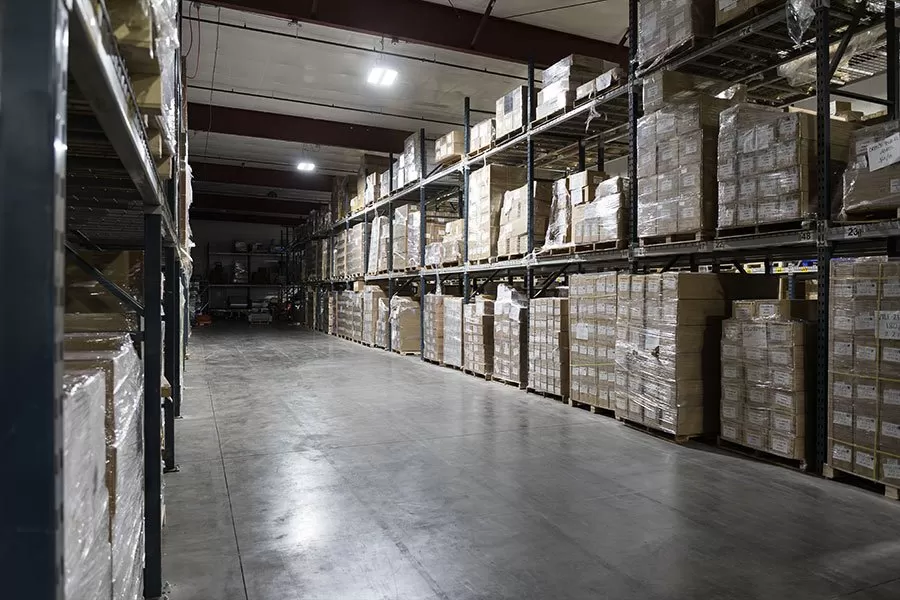

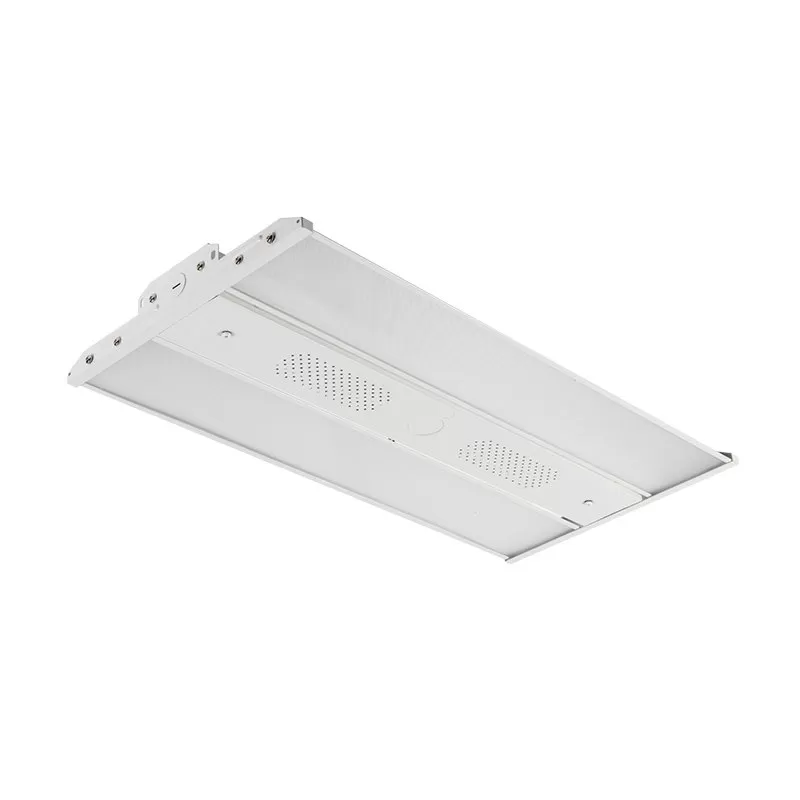

The LED linear high bay is a slim and energy efficient fixture ideal for applications in warehouses, manufacturing facilities, and gymnasiums. The fixture is constructed of a white steel housing with a prismatic polycarbonate lens that delivers uniform light. Increase energy savings by replacing 750W metal halide fixtures with the 140 lm/W high efficacy linear high bay. For more energy savings, pair the fixture with an optional motion sensor.
- White steel housing and a prismatic polycarbonate lens
- IP20 rated for damp or dry location only
- 0-10V Dimming
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
| Beam Angle | 90° |
|---|---|

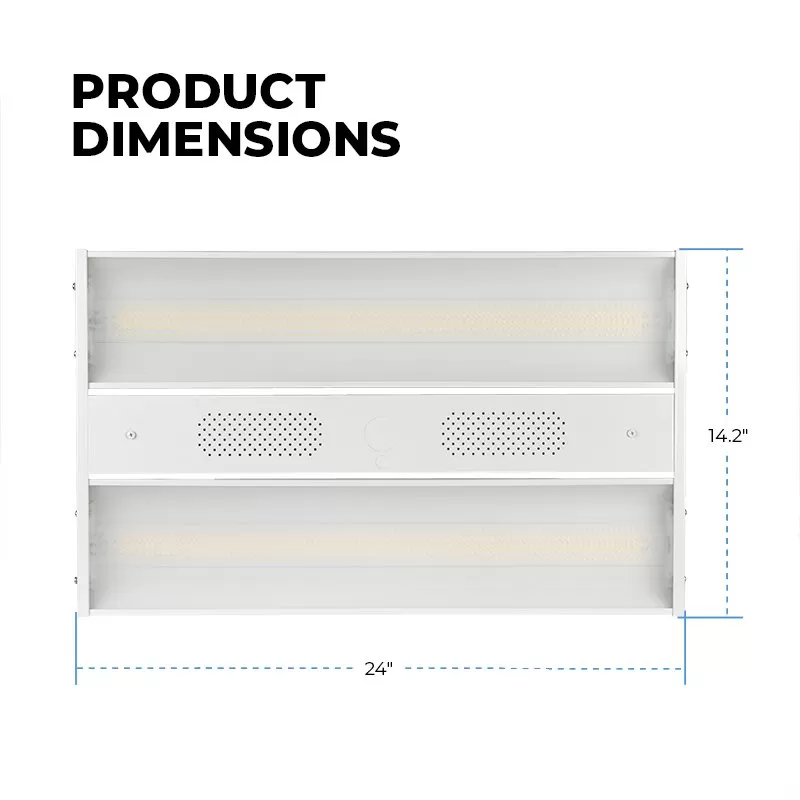

| Length | 24in (2ft) |
| Warranty | 5 Year |
| Voltage | 120-277 VAC |
| UL File Number | E366643 |
| Standards And Certifications | Certified by UL, DLC Premium |
| Product Weight | 6lb 9.6oz (2.99kg) |
| Power Factor | ≥0.9 |
| Power Consumption | 220 Watts |
| Operating Temperature | -20~+50 °C (-4~+122 °F) |
| Microwave Motion Sensor | Optional |
| Material | Polycarbonate Lens, Steel Housing |
| Lumen | 30800 Lumens |
| LED Lifetime | 50000 Hours |
| Brand | Super Bright LEDs |
| LED Color | Cool 5000K |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Finish | White |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 140 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 1.8 A @ 120 VAC, 790 mA @ 277 VAC |
| CRI | 80+ |
| Comparable Wattage | 750 Watt Metal-Halide |
| CCT Value | 5000K |
| Wire Gauge | 18 AWG |
