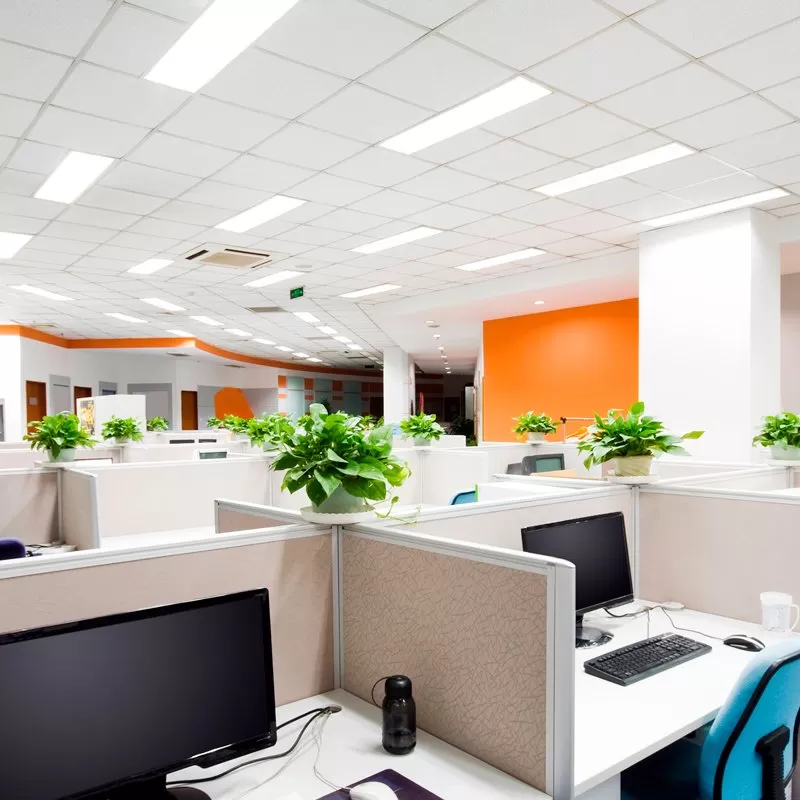

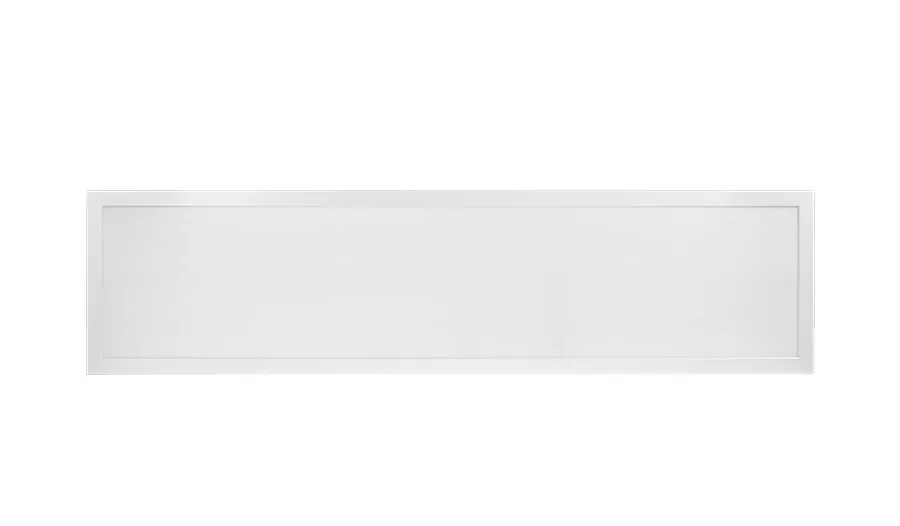

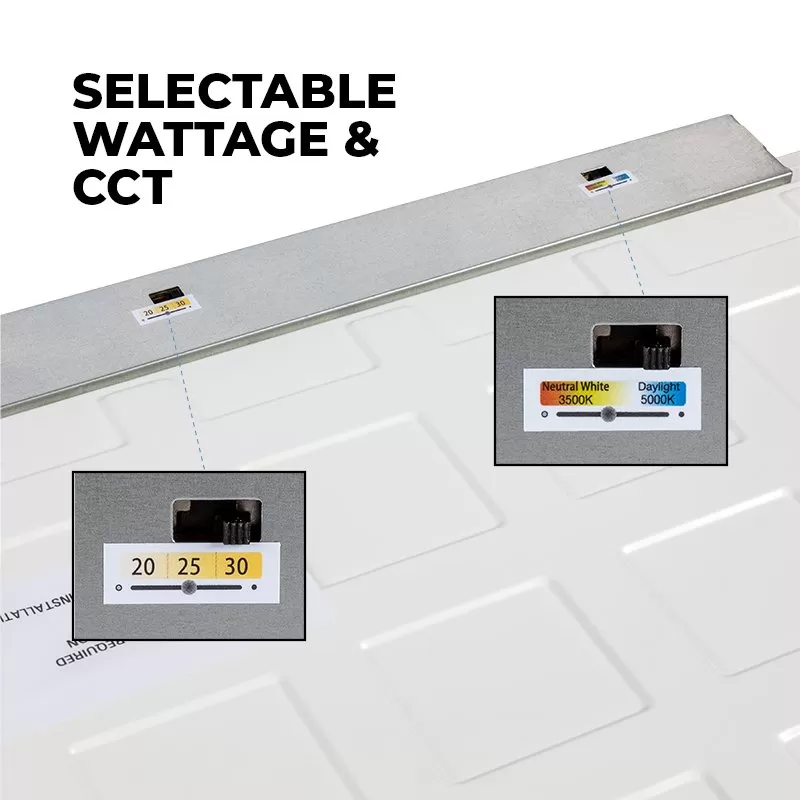

The 1×4 LED Backlit Panel features 3 wattage and 3 color temperature options for customization and versatility during installation. Contractors can save on shelf space, reduce inventory costs, and offer a wider selection to customers. The panel also has a low profile and lightweight design compared to traditional fluorescent troffers. Use the backlit panel to replace a fluorescent fixture with up to two 32W T8 tubes. The flicker-free, energy-efficient LEDs are evenly diffused through a glare-free frosted lens. This low-profile light panel is installed in standard T-grid drop ceilings to replace existing fluorescent troffers.
Product Details:
- Steel housing and driver enclosure with aluminum outer frame
- Frosted polystyrene lens
- IC Rated for direct contact with insulation
- 0-10V dimmable – dimming control sold separately
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Equivalency | 2-lamp 32W T8 Tubes |
| Rated Life (L70) | 100000 Hours |
| Product Materials | PMMA Lens, Steel Housing |
| Power Consumption | 20 Watts, 25 Watts, 30 Watts |
| Intensity | 2500 Lumens, 3125 Lumens, 3750 Lumens |
| LED Color | Cool White, Natural White, Warm White, Selectable CCT |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Frame | White Aluminum |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Beam Angle | 110° |
| Efficacy | 125 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |

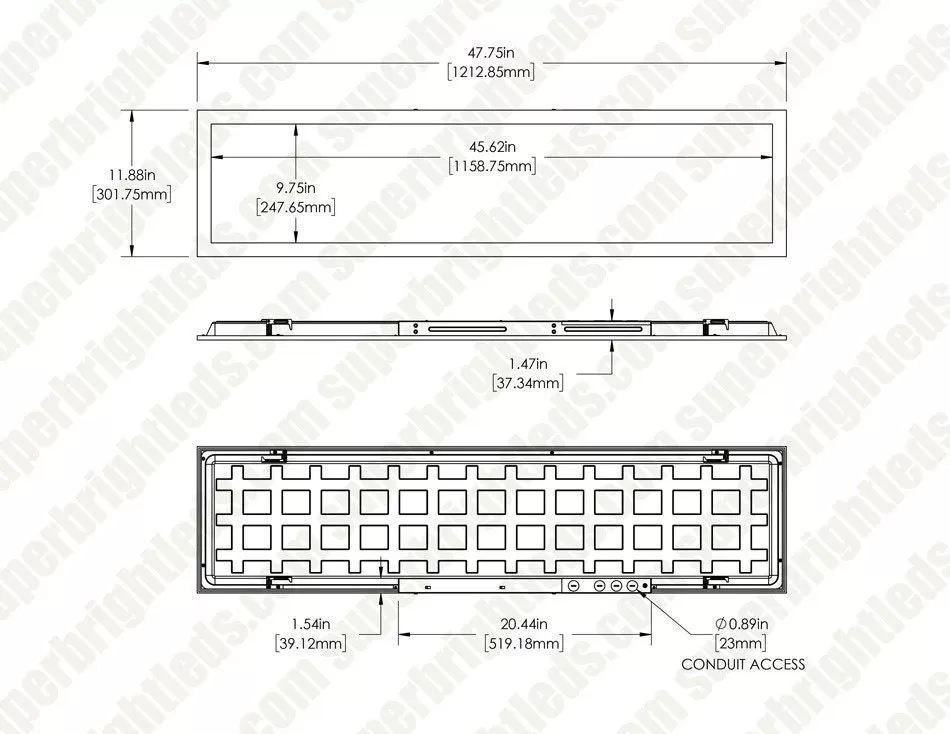

| Dimensions | 1ft x 4ft |
| Current Draw | 167/208/250 mA @ 120 VAC |
| CRI | 80+ |
| Certifications/Compliance | Certified by UL |
| Brand | Super Bright LEDs |
| Warranty | 5 Year |
