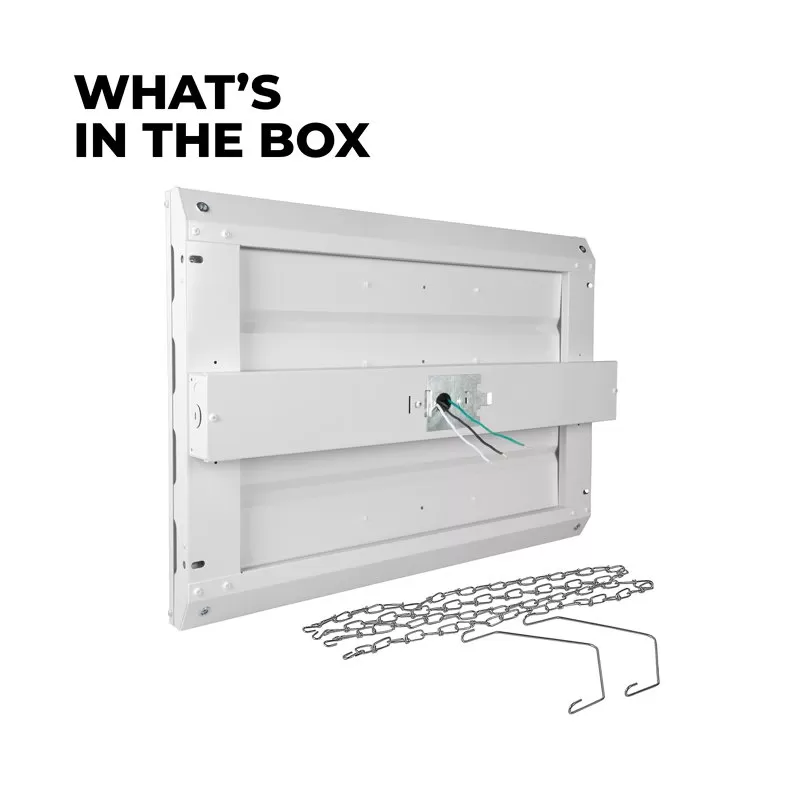

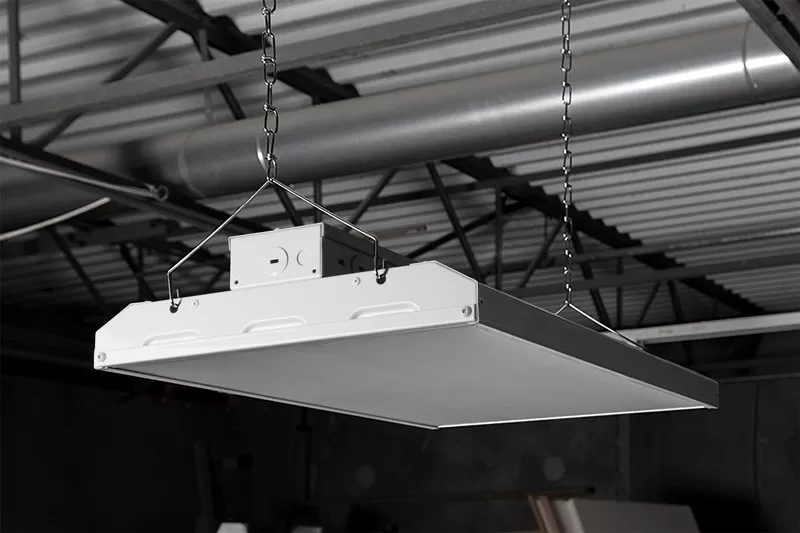

The 2-foot LED linear high bay is an energy-efficient and low maintenance lighting solution for a wide range of commercial applications. The high bay delivers 22,950 lumens with a high 135lm/W output. The polycarbonate lens diffuses light, creating an even 110° beam angle. Install using the included suspension mounting kit or using the 1/2 “ knockouts. Ideal for commercial applications such as warehouses, gymnasiums, and manufacturing plants.
- White steel housing and polycarbonate lens
- IP20 rating for damp or dry locations only
- Rated Lifetime: 80,000 hours
- 0-10V Dimming
- Link fixtures using the 1/2“ trade size knockouts
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
| Color Options | Cool 5000K, Natural 4000K |
|---|---|
| Lumen | 22950 Lumens |
| Warranty | 5 Year |
| Voltage | 120-277 VAC |
| UL File Number | E366643 |
| Standards And Certifications | Certified by UL, DLC Premium |
| Product Weight | 11lb 9oz (5.24kg) |
| Power Factor | ≥0.9 |
| Power Consumption | 170 Watts |
| Operating Temperature | -20~+50 °C (-4~+122 °F) |
| Microwave Motion Sensor | Optional |
| Material | Polycarbonate Lens, Steel Housing |

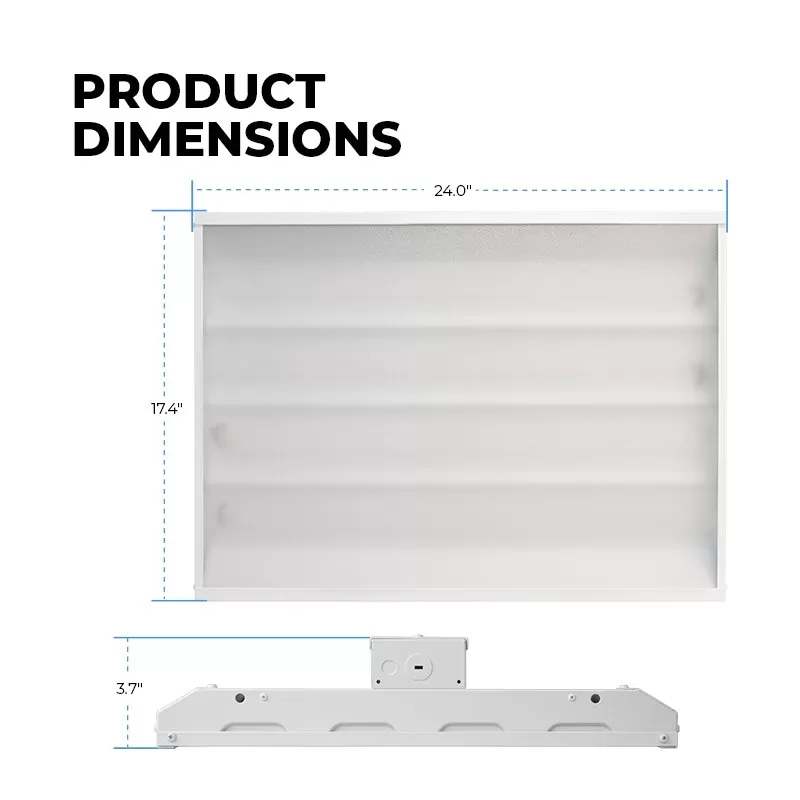

| Length | 24in (2ft) |
| Beam Angle | 110° |
| LED Lifetime | 80000 Hours |
| IP Rating | IP20 |
| Input Connection Type | Pigtail |
| Finish | White |
| Efficacy | 135 lm/W |
| Dimming Type | 0-10V |
| Dimmable | Yes |
| Current Draw | 1.4 A @ 120 VAC, 610 mA @ 277 VAC |
| CRI | 80+ |
| Comparable Wattage | 400 Watt Metal-Halide |
| Brand | Super Bright LEDs |
| Wire Gauge | 18 AWG |
