$66.49
- Online customer care, always here for you.
- Shop with confidence, enjoy free returns.
- Have the best deals
- Shop with Ease

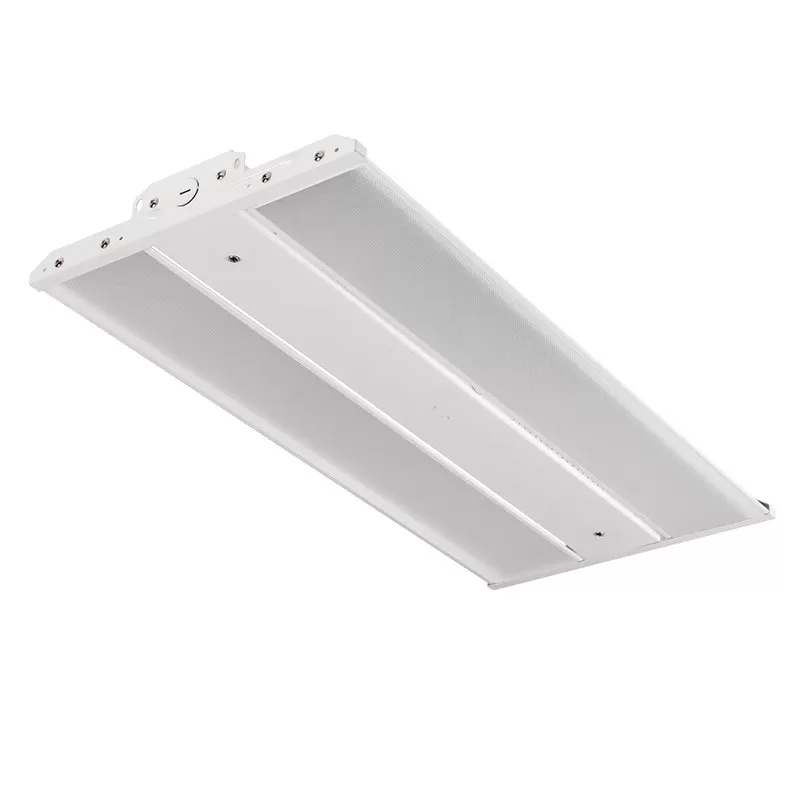

LHBDS1 series Linear High Bay replaces fluorescent fixtures with a less bulky frame and better energy efficiency. The economical LED solution achieves higher efficacy with a housing that is more compact and lighter weight than traditional high bays. Prismatic anti-glare lens creates a wide beam distribution with optimal lumen output for industrial and commercial high ceiling application.
2 options also available in 3ft: 220W and 300W
See our brightest Linear High Bay option available in 500W.
- Lightweight white metal housing
- Frosted PMMA lens for smooth light diffusion

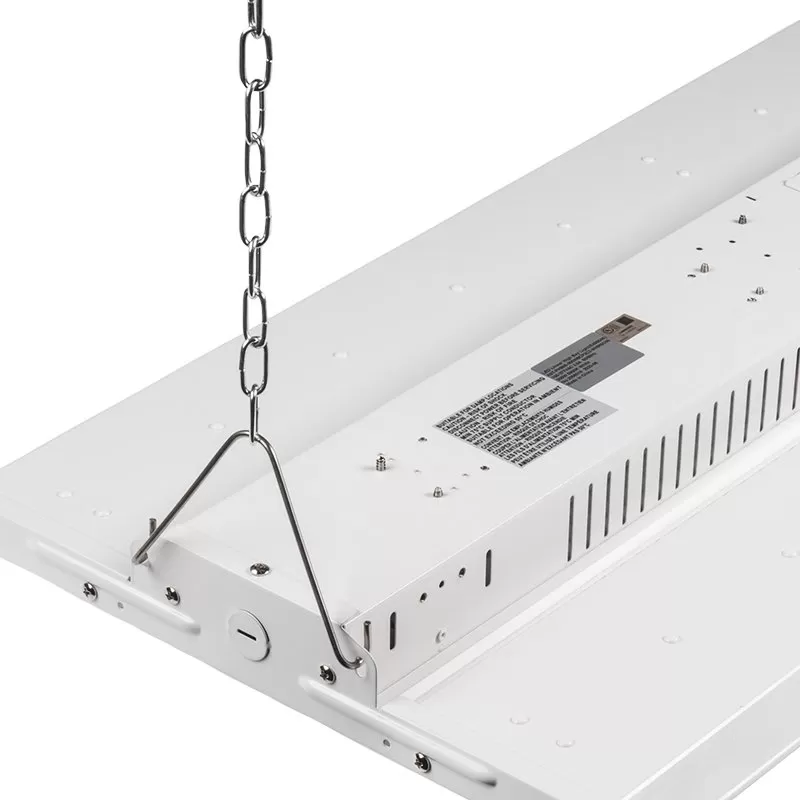

- Includes hanging kit for suspension mount

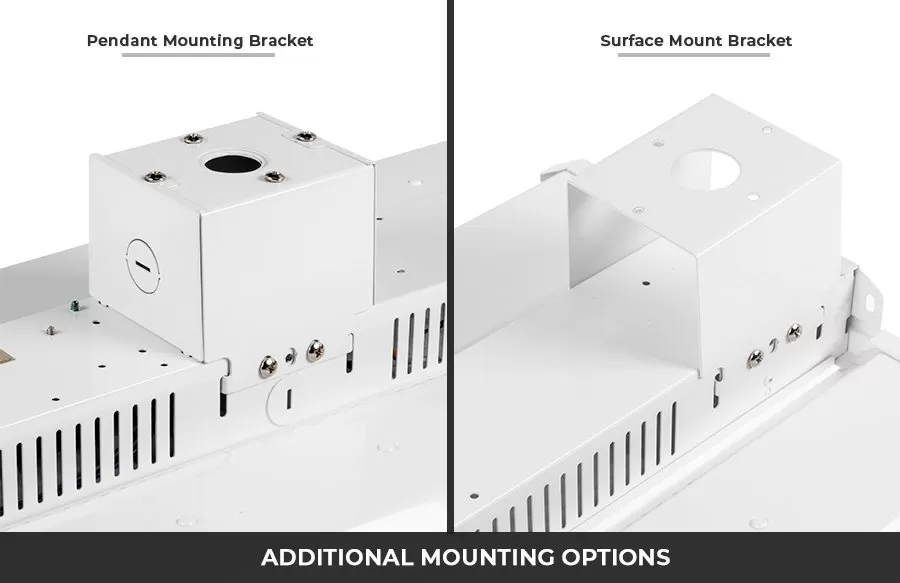

- Optional white bracket for pendant or surface mount

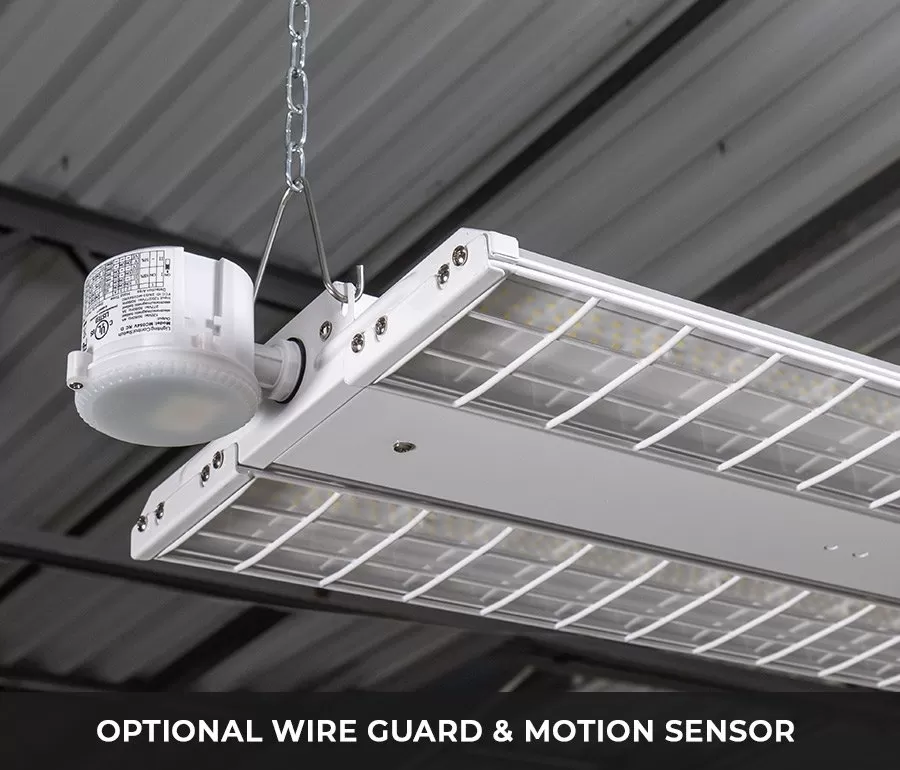

- Optional wire guard for additional protection from impact
- 1-10V dimmable
- Operational temperature: -40° — 122° F (-40° — 50° C)
- 100° beam pattern
- 5000K
- Pigtail wire connection
- Suitable for damp locations
- Rated IP20
- DLC 5.1 Premium, Certified by UL
- 50000 hours (L70) lifespan
| Beam Angle | 100° |
|---|---|
| Lens Type | Frosted, Prismatic |
| Voltage | 120-277 VAC |
| UL File Number | E366643 |
| Standards And Certifications | Certified by UL, DLC Premium |
| Product Weight | 7lb 2oz (3.23kg) |
| Power Factor | ≥0.9 |
| Power Consumption | 165 Watts |
| Operating Temperature | -40~+50 °C (-40~+122 °F) |
| Microwave Motion Sensor | Optional |
| Material | PMMA Lens, Steel Body |
| Lumen | 22275 Lumens |
| Length | 24in (2ft) |
| CCT Value | 5000K |
| LED Lifetime | 50000 Hours |
| LED Color | Cool 5000K |
| IP Rating | IP20 |
| Finish | White |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Efficacy | 140 lm/W |
| Dimming Type | 1-10V |
| Dimmable | Yes |
| Current Draw | 1.4 A @ 120 VAC, 600 mA @ 277 VAC |
| CRI | 80+ |
| Comparable Wattage | 400 Watt Metal-Halide |
| Warranty | 5 Year |
