10″ LED Commercial Recessed Downlight – Selectable CCT – Selectable Wattage – Dimmable – Up To 5,000 Lumens

Home / Interior Lighting / Recessed Downlighting
10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens
10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens - Image 2
10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens - Image 3
10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens - Image 4
10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens - Image 5

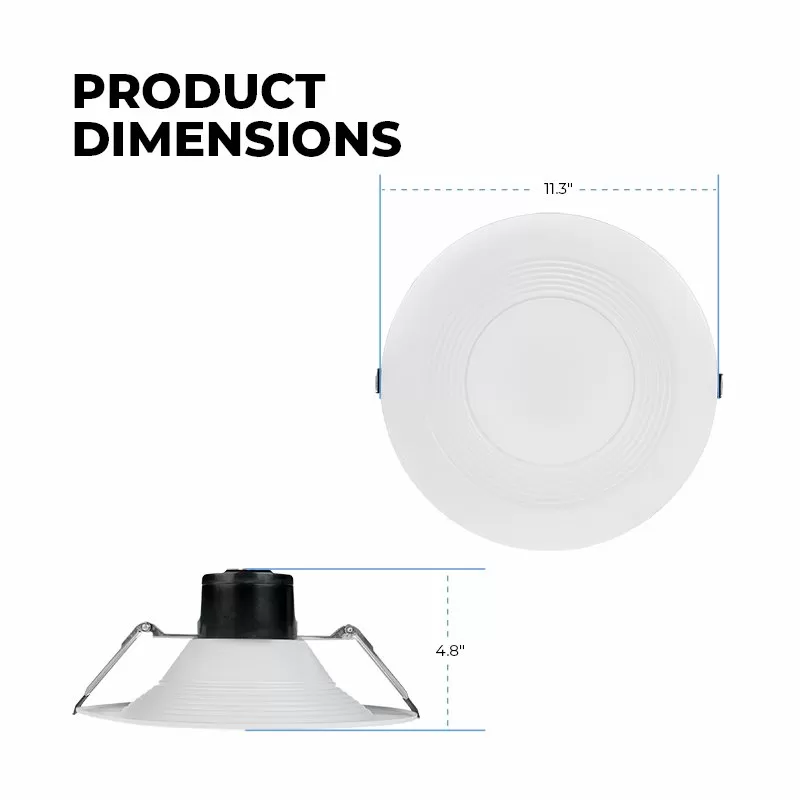

10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens -Lighting Decoration Store cdl10d sw5a sp40w product dimensions

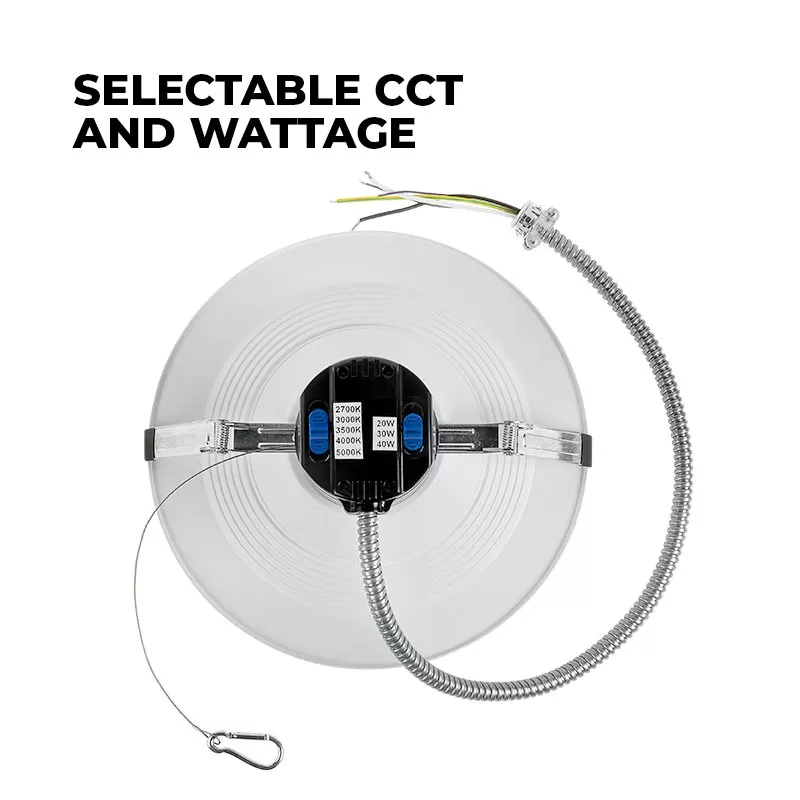

10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens -Lighting Decoration Store cdl10d sw5a sp40w selectable cct wattage

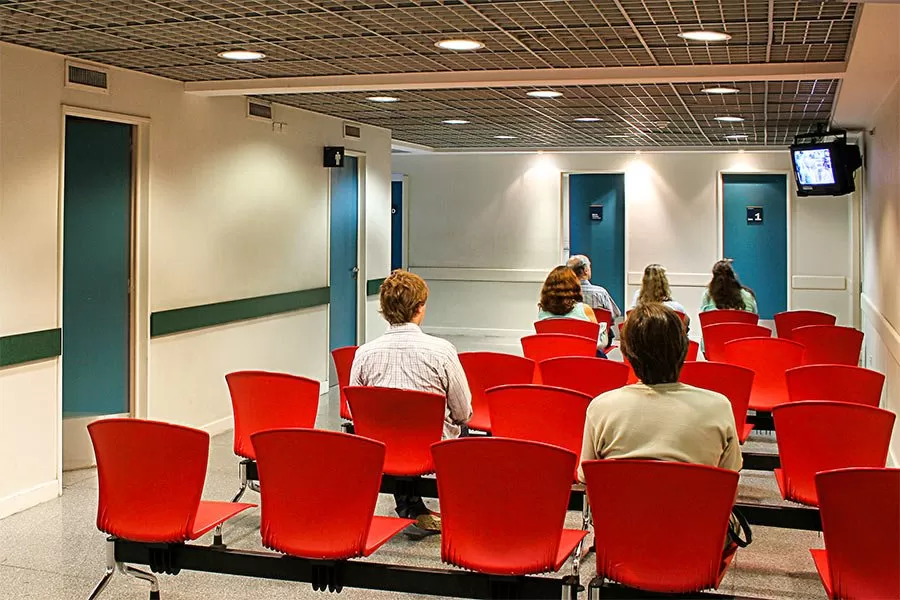

10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens -Lighting Decoration Store waiting room ceiling led can lights architectural commercial lighting

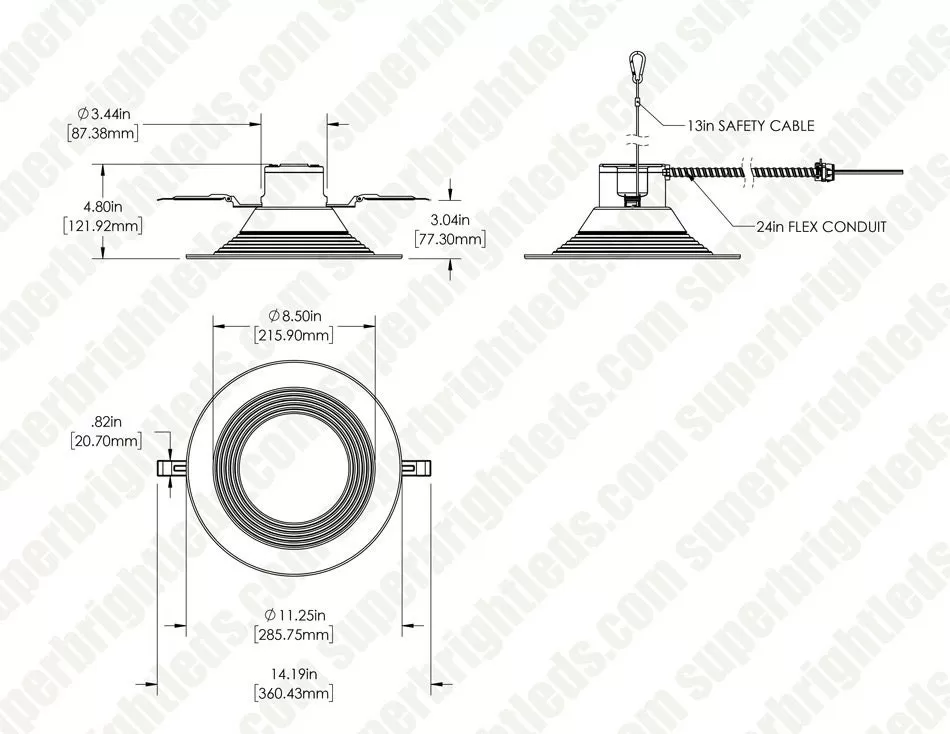

10" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - Up To 5,000 Lumens -Lighting Decoration Store cdl10d sw5a sp40w dim drawings 1

$44.09

Buy Now
SKU: CDL10D-SW5A-SP40W Categories: Interior Lighting, Recessed Downlighting Tag: Super Bright LEDs
  • Online customer care, always here for you.
  • Shop with confidence, enjoy free returns.
  • Have the best deals
  • Shop with Ease
Browse
  • Commercial Exteriors
    • Bollard Lights
    • Dusk To Dawn Area Lights
    • Gooseneck Barn Lights
    • LED Canopy Lights
    • LED Flood Lights
    • LED Parking Lot Lights
    • LED Wall Packs
    • Street Lights
  • Hanging Lighting
    • Ceiling Lights
    • Chandeliers
    • Kitchen Island Pendants
    • Mini Pendants
    • Pendant Lights
  • Interior Lighting
    • LED Panel Lights & Troffer Lights
    • LED Track Lighting
    • Recessed Downlighting
    • Strip Light Fixtures
  • LED Warehouse Lighting
    • LED Exit Signs and Emergency Lights
    • LED Forklift Safety Lights
    • LED High Bay Lights
  • Residential Lighting
    • Flush Mount Ceiling Lights
    • Outdoor Wall Lights
    • Portable LED Work Lights
    • Smart Lighting
    • Under Cabinet Lighting
    • Wall Switches and Dimmers
  • Uncategorized
  • Wall Lighting
    • Vanity Lights
    • Wall Sconces
  • Description
  • Additional information
  • Reviews (0)

The 10″ LED commercial recessed downlight is a versatile lighting solution for commercial and residential spaces. The fixture has two slide switches; one selects from five CCT options and one from three wattage options. These variable switches give you the functionality of 15 lights in one with the flexibility to customize light color and output. Spring clips allow for easy installation in commercial downlight frames. A steel cable with a carabiner provides added safety. The deep recessed light source has a frosted lens to create smooth, glare-free illumination. White aluminum trim gives a clean finish that complements various interior spaces. The light includes a flexible electrical wire whip and twist-on wire connectors for installation. Ideal for use in new construction, remodeling, and retrofit projects. It fits a 10″ diameter recess. Available in four sizes: 4″, 6″, 8″, and 10″

Product Details:

  • White aluminum housing with a frosted polycarbonate lens
  • IP20, Suitable for damp locations
  • Selectable switches are located on the back of the fixture
  • 90+ CRI
  • 0–10 V dimmable
  • 120° beam angle
  • 15.75″ flexible electrical wire whip with 1/2″ knockout snap-in connector
  • 120-347 VAC
  • ETL Listed in compliance with UL 1598 (IFAM)
  • 5-year warranty
Ambient Operating Temperature

-20~+45 °C (-4~+113 °F)

Input Connection Type

Pigtail

Rated Life (L70)

50000 Hours

Product Materials

Aluminum Housing, Polycarbonate Lens

Power Factor

≥0.9

Power Consumption

20 Watts, 30 Watts, 40 Watts

Operating Voltage

120-347 VAC

Intensity

2500 Lumens, 3750 Lumens, 5000 Lumens

LED Color

Cool White, Natural White, Warm White

IP Rating

IP20

Finish

White

Beam Angle

120°

Environmental Rating

Non-weatherproof, Suitable for Damp Locations

Efficacy

125 lm/W

Dimming Type

0-10V

Dimmable

Yes

Current Draw

167/250/333 mA @ 120 VAC, 72/108/144 mA @ 277 VAC

CRI

90+

Certifications/Compliance

ETL Listed

CCT Value

2700K, 3000K, 3500K, 4000K, 5000K

Brand

Super Bright LEDs

Warranty

5 Year
